LED H1 CSP low beam or high beam kit | CSP diodes - Chip Scale Package | 8,000 lm

Due to the high efficiency of the LEDs in this set, we recommend its use as:

• dipped beam (low beam) bulbs
• bulbs for high beam (high beam)

Technical Specifications:

• Model: Low beam LED H1 CSP 50W 8000lm
• Number of LED bulbs: 2
• Number of LEDs: 6 / bulb
• Light intensity: 8,000 lm
• Total current consumption: 2x 25W
• Splash Resistant: IP67
• Supply voltage: 12V - 24V
• Light color: white, light blue 6500k
• Lamp replacement: H1
• Certification CE, RoHS

Bulbs have built-in filters CAN-BUS , so they should not cause errors on the on-board computer. It happens, however, that in cars with extensive electronics, despite the built-in filters, the error appears after installing LED bulbs. For the proper operation of the bulbs, it will be necessary to install additional external LED filters with H1 bulb holders. We recommend purchasing a kit with LED filters.

The efficiency of H1 CSP LED bulbs 8000lm

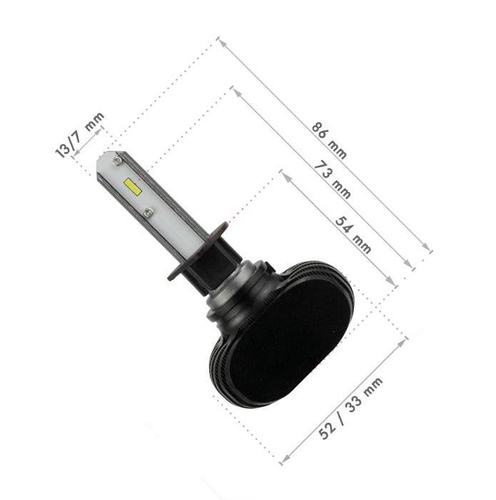

Minimized diodes and perfect proportions of dimensions of CSP LED bulbs provide almost exemplary light distribution even in a lensless lamp! Correctly focusing the light beam is very important because:

• The light bulbs do not dazzle oncoming drivers while driving
• 100% of the bulb's power is transferred to the road in front of the vehicle, not to the shoulder, directly in front of the hood or above the road surface
• There is no need to readjust the low beam and / or high beam bulbs
• We do not have to worry about the vehicle inspection

Photo 3. For comparison, we present a pillar of light from other popular LED bulbs using Chip-On-Board "COB" technology, inserted into a lamp without lens projectors.

The use of COB LEDs with a large surface area causes that the light in reflector lamps is significantly dispersed. As a result, a large proportion of the light generated by the COB falls above the reference cut-off limit, and at the point of maximum light intensity, a conventional filament lamp is more efficient.

Due to the very high luminous efficiency of the set, the bulbs can be used as a replacement for low beam and / or high beam. The offered set of H1 CSP LED bulbs significantly improves the visibility of objects in front of the car and the visibility of the car by other road users.

The light intensity is incomparably higher compared to standard, factory-fitted H1 bulbs, and the white color of the light gives the lamps a modern look.

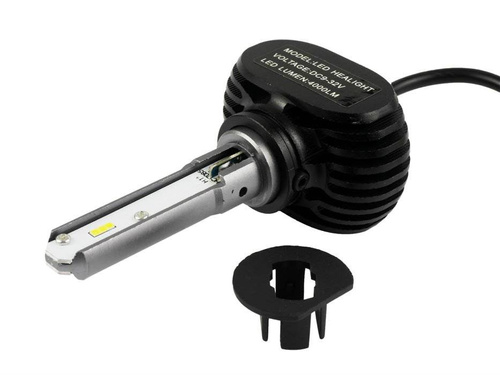

H1 CSP LED bulbs are equipped with collar locking elements in the most favorable position for the lighting effect. In addition, a removable collar facilitates assembly light bulbs in lamps that are difficult to access.

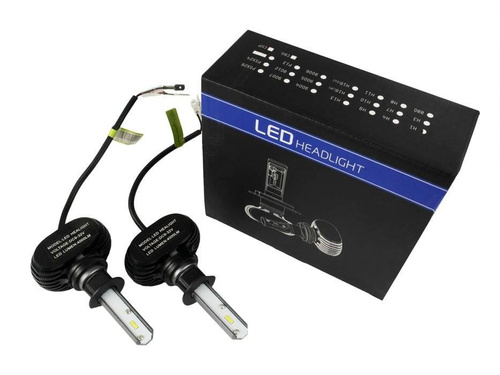

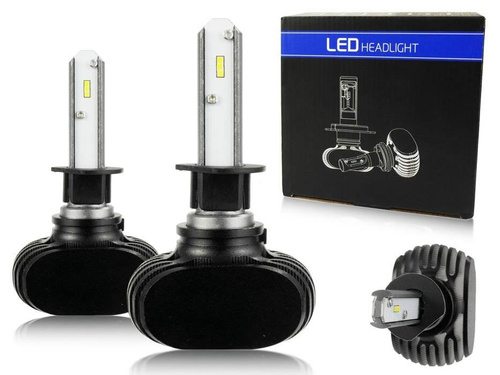

• Two H1 LED CSP bulbs, 4000 lm each
• Manual - assembly and operating instructions
• Packaging (perfect for a gift)

H1 LED Bulb Quick Installation Guide:

Step 1-2 : Unfasten the plate holding the bulb in the H1 socket and remove the old bulb.

Step 3 : Remove the adapter from the H1 LED bulb. We put it in the place of the bulb, and then fasten the mounting plate.

Step 4 : Insert the bulb into the previously fastened adapter. We connect the bulb to the H1 cube. The light bulb power cord with the H1 cube is best placed inside the lamp, between the housing and the reflector. The bulb can be rotated 360 ° in order to find the appropriate angle of incidence of light on the illuminated area in front of the vehicle.

Step 5 : Put a cover on the housing to protect the inside of the lamp against moisture.
