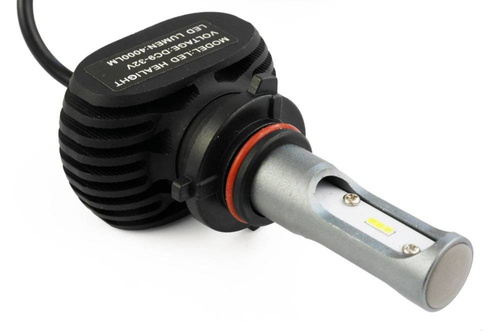

LED HB4 9006 CSP low beam or high beam kit | CSP diodes - Chip Scale Package | 8,000 lm

Perfect for lamps with lens and reflector (lensless) projectors

Due to the high efficiency of the LEDs in this set, we recommend its use as:

• dipped beam (low beam) bulbs
• bulbs for high beam (high beam)

Technical Specifications:

• Model: LED HB4 9006 CSP 50W 8000lm dipped beam
• Number of LED bulbs: 2
• Number of LEDs: 6 / bulb
• Light intensity: 8,000 lm
• Total current consumption: 2x 25W
• Splash Resistant: IP67
• Supply voltage: 12V - 24V
• Light color: white 6000k
• Lamp replacement: HB4, 9006
• Certification CE, RoHS

Bulbs have built-in filters CAN-BUS , so they should not cause errors on the on-board computer. It happens, however, that in cars with extensive electronics, despite the built-in filters, the error appears after installing LED bulbs. For the proper operation of the bulbs, the installation of additional external LED filters with HB4 bulb holders will be required. We recommend purchasing a kit with LED filters.

Efficiency of LED HB4 CSP 8000lm bulbs

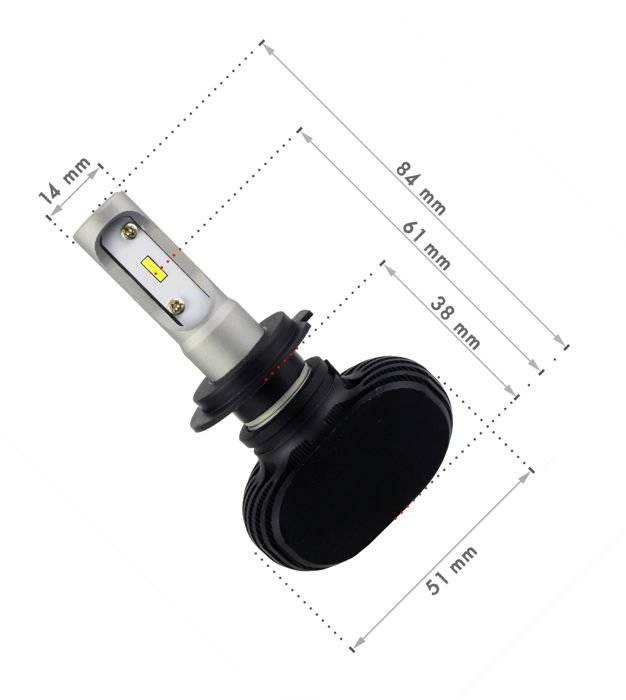

Minimized diodes and perfect proportions of dimensions of CSP LED bulbs provide almost exemplary light distribution even in a lensless lamp! Correctly focusing the light beam is very important because:

• The light bulbs do not dazzle oncoming drivers while driving
• 100% of the bulb's power is transferred to the road in front of the vehicle, not to the shoulder, directly in front of the hood or above the road surface
• There is no need to readjust the low beam and / or high beam bulbs
• We do not have to worry about the vehicle inspection

Photo 3. For comparison, we present a pillar of light from other popular LED bulbs using Chip-On-Board "COB" technology, inserted into a lamp without lens projectors.

The use of COB LEDs with a large surface area causes that the light in reflector lamps is significantly dispersed. As a result, a large proportion of the light generated by the COB falls above the reference cut-off limit, and at the point of maximum light intensity, a conventional filament lamp is more efficient.

Due to the very high luminous efficiency of the set, the bulbs can be used as a replacement for low beam and / or high beam. The offered HB4 CSP LED bulb kit significantly improves the visibility of objects in front of the car and the visibility of the car by other road users.

The light intensity is incomparably higher compared to standard, factory-fitted HB4 bulbs, and the white color of the light gives the lamps a modern look.

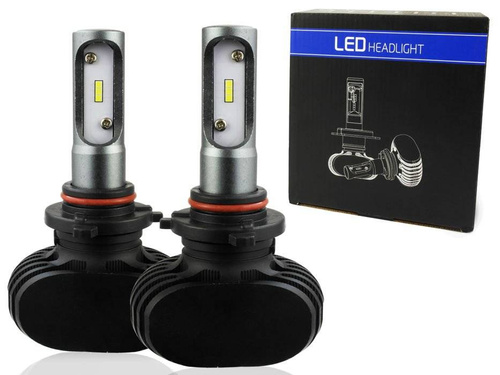

The kit includes:

• Two HB4 9006 LED CSP bulbs, 4,000 lm each
• Manual - assembly and operating instructions
• Packaging (perfect for a gift)
