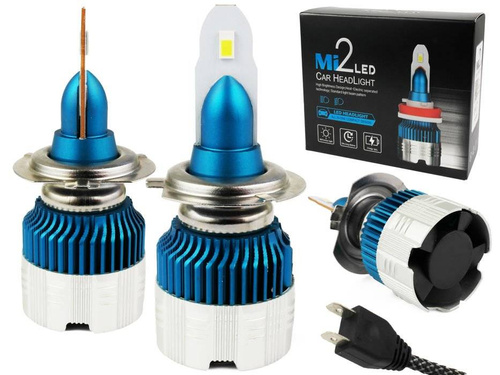

H7 Mi2 LED low beam or high beam kit | Ultra-flat CSP LEDs

Due to the high efficiency of CSP LEDs, we recommend the use of bulbs as dipped and / or high beam lights in lamps:

• reflectors
• lenticular

Minimized LEDs and excellent proportions of the dimensions of LED SLIM bulbs ensure almost exemplary light distribution, even in a lensless lamp! Correctly focusing the light beam is very important because:

• The light bulbs do not dazzle oncoming drivers while driving
• 100% of the bulb's power is transferred to the road in front of the vehicle, not to the shoulder, directly in front of the hood or above the road surface
• There is no need to readjust the low beam and / or high beam bulbs
• We do not have to worry about the vehicle inspection

Active cooling consists in reducing the height of the air temperature with the help of a fan . The advantage of this solution is a much higher cooling capacity than in the case of passive cooling (without fan).

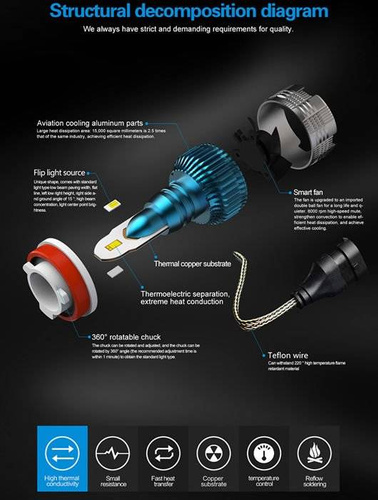

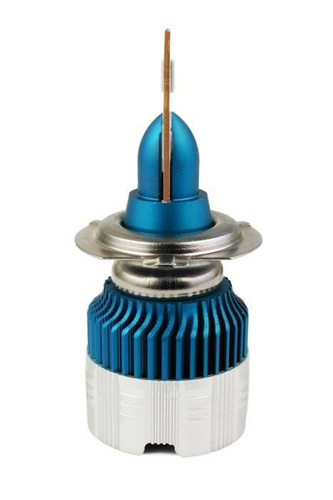

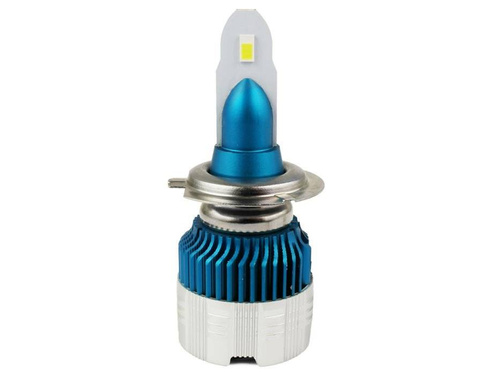

The housing of the Mi2 LED bulb is made of high-quality, highly thermally conductive aluminum ( Aviation aluminum 6063 )

Technical Specifications:

• Model: LED H7 Mi2 low / high beam
• Number of LED bulbs: 2
• Number of LEDs: 2 / bulb
• LED technology: CSP
• Set power: 56W
• Splashproof: IP20
• Current: 2.2A at 12V
• Supply voltage: 12V
• Light color: snow white 6500k
• Certificate: CE, RoHS Compliant
• Lamp replacement: H7, H7R, H7M
• Cooling: active

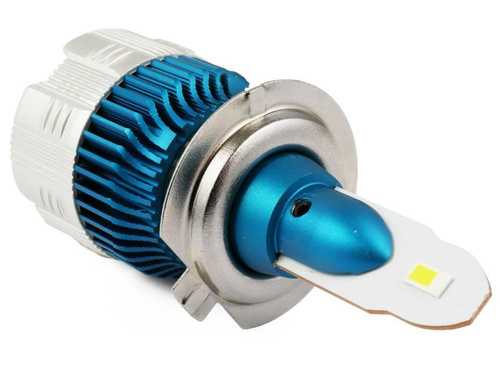

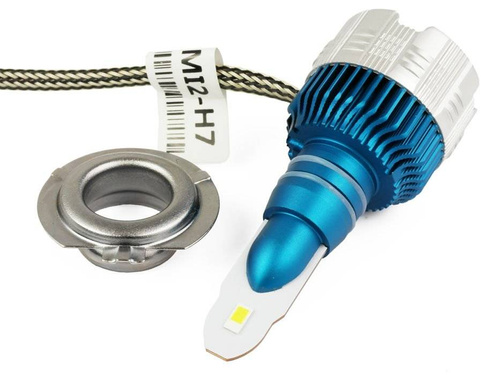

H7 Mi2 LED bulbs are equipped with a rotatable bulb collar, as a result of which the angle of incidence of light emitted by the diodes on the reflector can be adjusted . In addition, the removable collar facilitates the installation of bulbs in lamps that are difficult to access.

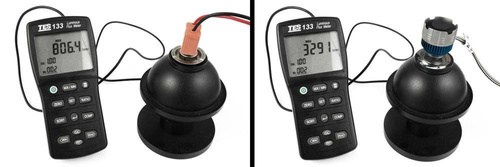

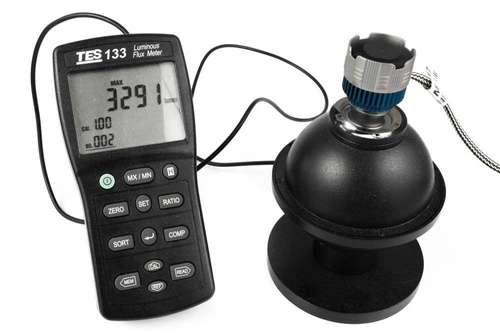

The efficiency of light bulbs in practice.

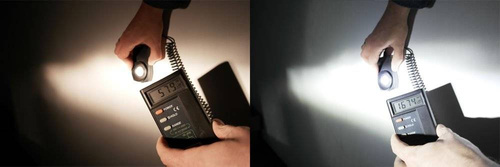

In a practical test that takes into account the irregularity of the reflector of a car lamp, the H7 Mi2 LED bulbs achieved a fantastic 1,674 lux result. This means that the light beam emits almost three times more light than the light beam of an ordinary filament bulb. The results are given in lux.

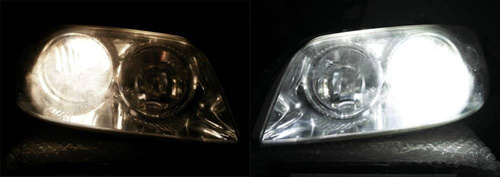

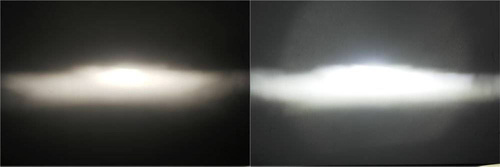

The beam of light from LED H7 Mi2 bulbs is characterized by an exemplary light cut-off, high luminance and a strong, white color of light even in a reflector lamp. The high intensity of the controlled light column makes it one of the most interesting items on the automotive LED lighting market.

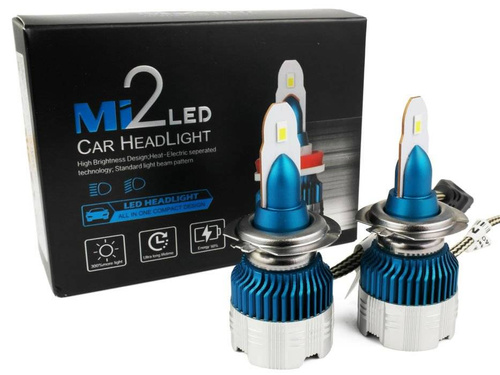

The kit includes:

• Two H7 Mi2 CSP LED bulbs
• Pictorial assembly instructions
• Packaging (perfect for a gift)

H7 LED bulb installation guide:

Step 1-2 : Detach the plate holding the bulb in the H7 socket and remove the old bulb.

Step 3 : Remove the adapter from the H7 LED bulb. We put it in the place of the bulb, and then fasten the mounting plate.

Step 4 : Insert the bulb into the previously fastened adapter. We connect the bulb to the H7 cube. The light bulb power cord with the H7 cube is best placed inside the lamp, between the housing and the reflector. The bulb can be rotated 360 ° in order to find the appropriate angle of incidence of light on the illuminated area in front of the vehicle.

Step 5 : Put a cover on the housing to protect the inside of the lamp against moisture.
