LED bulbs H4 S2 16,000 lm 72W 12V-24V CAN BUS

A set of LED bulbs for low / high beam

Due to the high efficiency of the LEDs in this set, we recommend its use as:

• dipped beam (low beam) bulbs
• bulbs for high beam (high beam)

Active cooling is to reduce the height of the air temperature with fan . The advantage of this solution is a much higher cooling capacity than in the case of passive cooling (without fan).

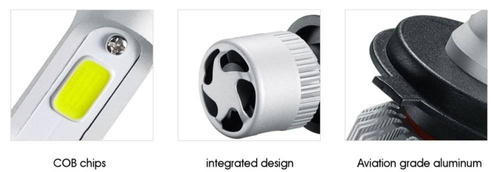

Bulb housing LED S2 is made of high-quality, highly thermally conductive aluminum ( Aviation aluminum 6063 )

Technical Specifications:

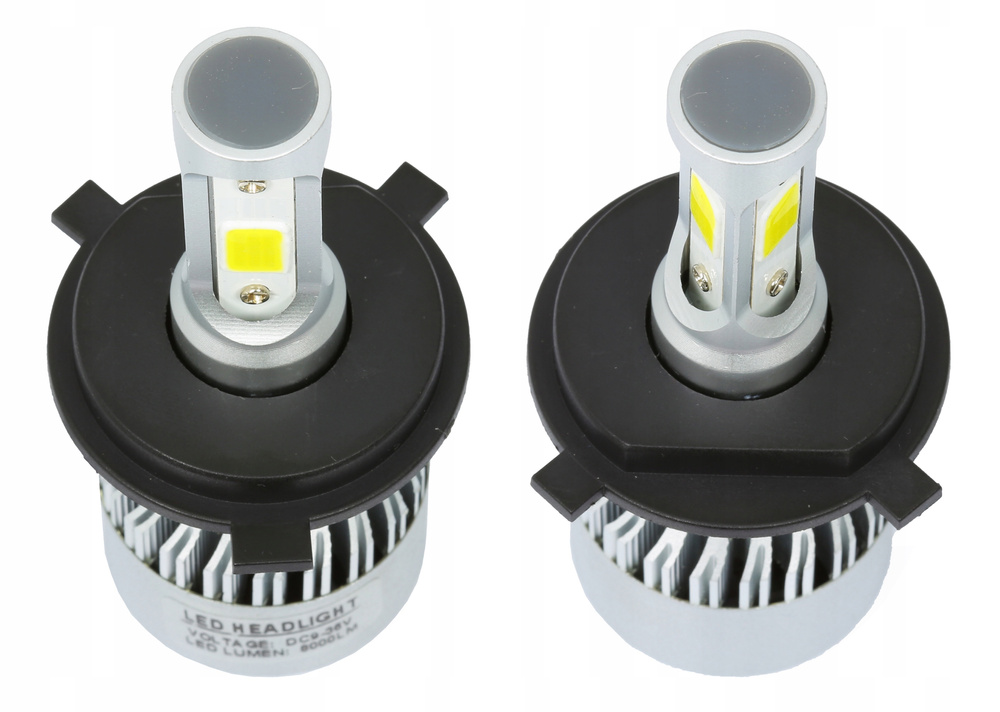

• Model: A set of LED bulbs H4 S2 72W COB 16000lm
• Number of LED bulbs: 2
• Number of LEDs: 2 / bulb
• Light intensity: 16,000 lm
• Total power consumption: 2x 36W
• Splashproof: IP67
• Supply voltage: 12V - 24V
• Light color: snow white 6500k
• Lamp replacement: H4, HS1
• CE, RoHS certification

The bulbs have built-in CAN-BUS filters, so they will not cause errors on the on-board computer.

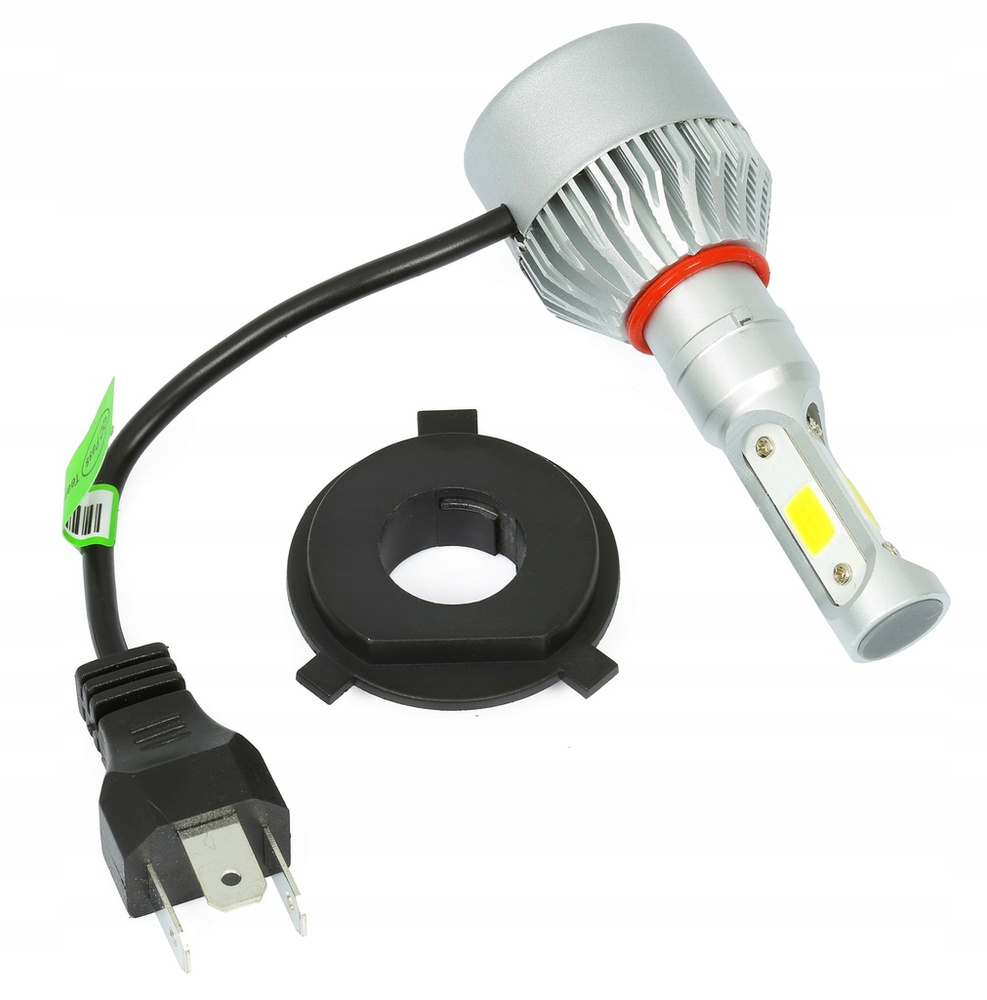

H4 S2 LED bulbs are equipped with a removable bulb collar, which greatly facilitates installation light bulbs in lamps that are difficult to access.

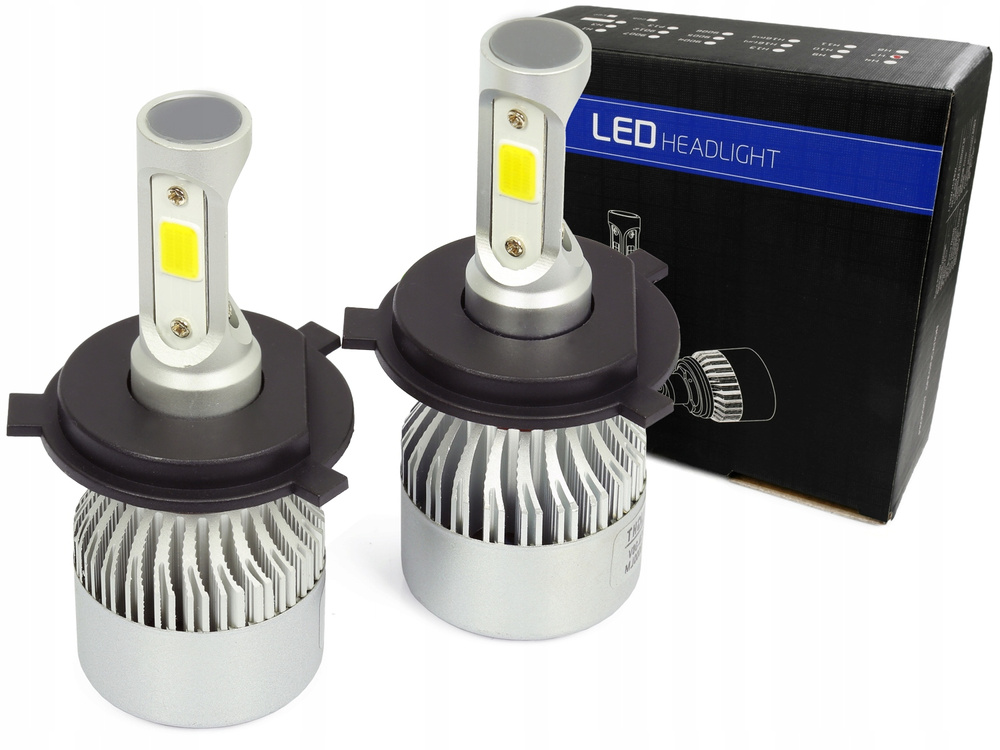

The kit includes:

• Two H4 S2 LED bulbs

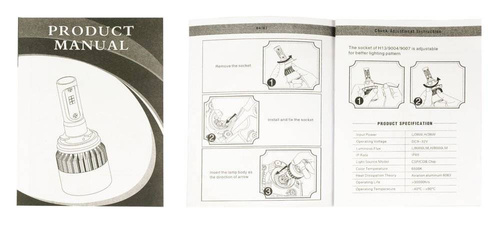

• Pictorial assembly instructions
• Packaging (perfect for a gift)

H4 LED bulb installation guide:

Step 1-2 : Unfasten the plate holding the bulb in socket H4 and remove the old bulb.

Step 3 : Remove the adapter from the H4 LED bulb. We put it in the place of the bulb, and then fasten the mounting plate.

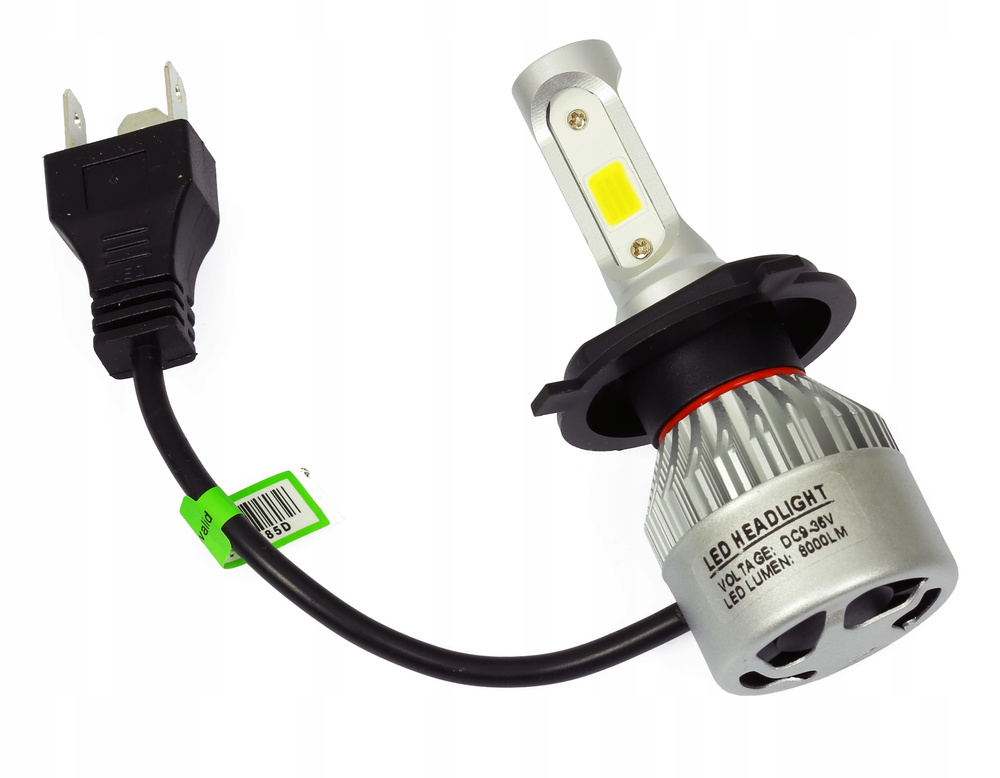

Step 4 : Insert the bulb into the previously fastened adapter. We connect the bulb to the H4 cube. The light bulb power cord with the H4 cube is best placed inside the lamp, between the housing and the reflector. The bulb can be rotated 360 ° in order to find the appropriate angle of incidence of light on the illuminated area in front of the vehicle.

Step 5 : Put a cover on the housing to protect the inside of the lamp against moisture.

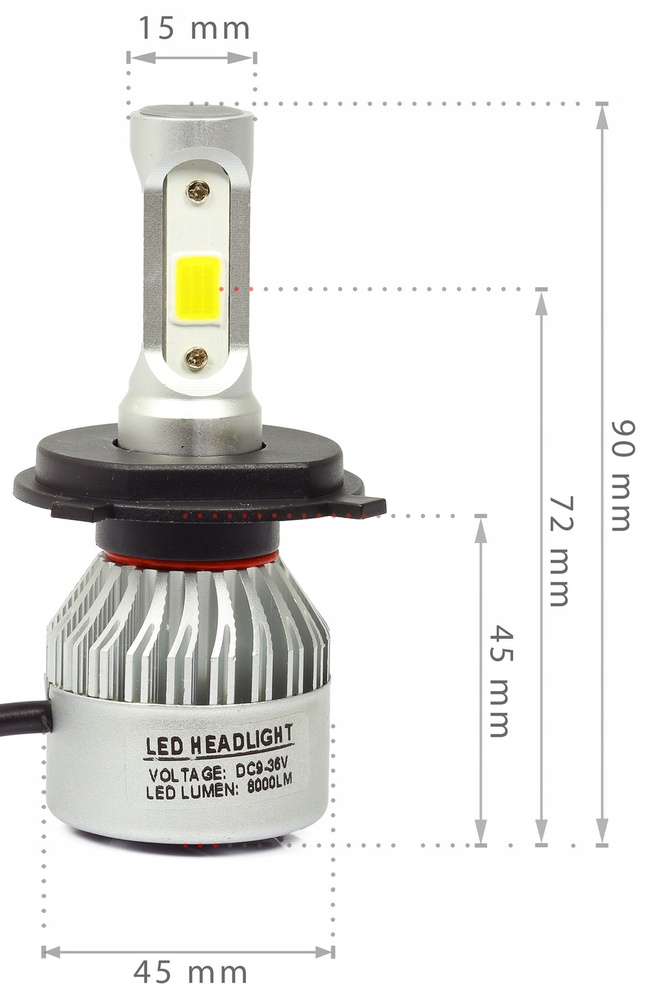

Despite the small amount of space in the tested lamp (Fiat Punto II), after installing the H4 LED, it was possible to close the cover and seal the inside of the lamp. Before buying, we recommend that you check whether the target lamp has a spare space between the bulb's collar and the cover. In our lamp, the distance between the bulb and the edge of the housing on which the cover is inserted is 32 mm.
