Bulb kit for low and high beam LED HB5 9007 CSP | CSP diodes - Chip Scale Packet | 8,000 lm

Due to the high efficiency of the LEDs in this set, we recommend its use as:

• bulbs for the dipped beam (short) and main beam (high beam). The offered bulbs are two-filaments.

HB5 CSP LED bulbs are equipped with collar locking elements in the most favorable position for the lighting effect. In addition, the removable collar facilitates the installation of bulbs in lamps that are difficult to access.

Technical Specifications:

• Model: LED HB5 CSP 50W 8000lm dipped beam
• Number of LED bulbs: 2
• Number of LEDs: 12 / bulb
• Light intensity: 8000 lm low beam / 8000 lm road
• Total current consumption: 2x 25W
• Splash Resistant: IP67
• Supply voltage: 12V - 24V
• Light color: white, slightly blue 6500k
• Lamp replacement: HB5, 9007
• Certification CE, RoHS

The bulbs have built-in CAN-BUS filters, so they should not cause errors on the on-board computer. It happens, however, that in cars with extensive electronics, despite the built-in filters, the error appears after installing LED bulbs. For the proper operation of the bulbs, the installation of additional external LED filters with HB5 bulb holders will be required. We recommend purchasing a kit with LED filters.

Due to the very high luminous efficiency of the set, the bulbs can be used as a replacement for low and high beam lights. The offered set of HB5 CSP LED bulbs significantly improves the visibility of objects in front of the car, and the visibility of the car by other road users.

The light intensity is incomparably higher compared to standard, factory-fitted HB5 bulbs, and the white color of the light gives the lamps a modern look.

Minimized diodes and perfect proportions of the dimensions of CSP LED bulbs ensure almost exemplary light distribution, even in a lensless lamp! Correctly focusing the light beam is very important because:

• The light bulbs do not dazzle oncoming drivers while driving
• 100% of the bulb's power is transferred to the road in front of the vehicle, not to the shoulder, directly in front of the hood or above the road surface
• There is no need to readjust the low beam and / or high beam bulbs
• We do not have to worry about the vehicle inspection

The use of COB LEDs with a large surface area causes that the light in reflector lamps is significantly dispersed. As a result, a large proportion of the light generated by the COB falls above the reference cut-off limit, and at the point of maximum light intensity, a conventional filament lamp is more efficient.

The kit includes:

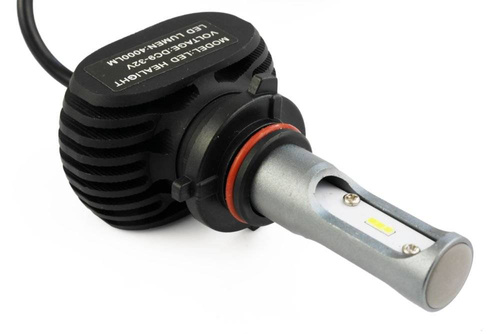

• Two HB5 9007 LED CSP bulbs, 4000 lm each

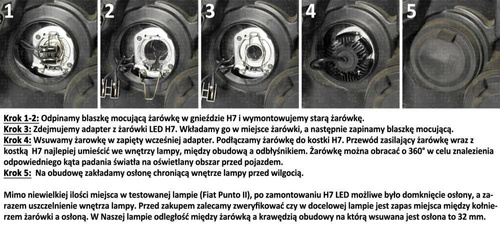

• Manual - assembly and operating instructions
• Packaging (perfect for a gift)
