LED bulbs H1 N8 20000 lm 80W 12V-24V CAN BUS

A set of LED bulbs for dipped / high beam

Due to the high efficiency of the LEDs in this set, we recommend its use as:

• dipped beam bulbs (short)
• high beam bulbs (long)

Active cooling consists in reducing the height of the air temperature by means of a fan . The advantage of this solution is much greater cooling efficiency than in the case of passive cooling (without a fan).

The housing of the N8 LED bulb is made of high-quality, highly thermally conductive aluminum ( Aviation aluminum 6063 )

Technical Specifications:

• Model: Set of LED bulbs H1 N8 80W DOB 20000lm
• Number of LED bulbs: 2
• Number of LEDs: 2 / bulb
• Light intensity: 20000lm
• Total power consumption: 2x 40W
• Splashproof: IP67
• Supply voltage: 12V - 24V
• Light color: snow white 6500k
• Bulb replacement: H1
• CE, RoHS certification

The bulbs have built-in CAN-BUS filters, so they will not cause errors on the on-board computer.

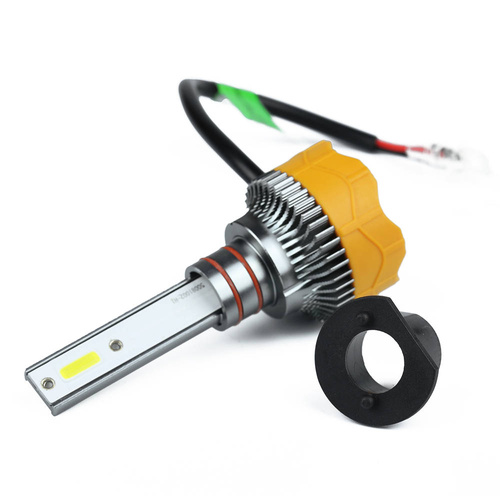

H1 N8 LED bulbs are equipped with a removable bulb collar, which greatly facilitates the installation of bulbs in lamps that are difficult to access.

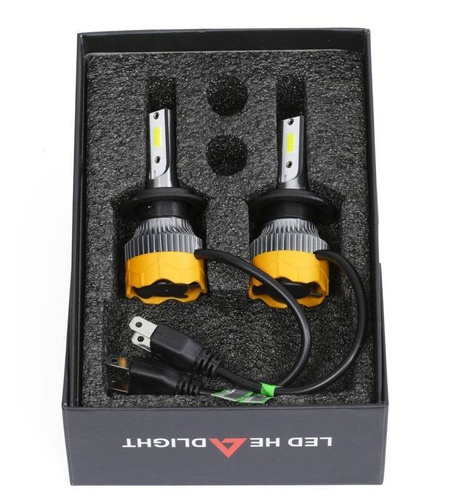

The kit includes:

• Two H1 N8 LED bulbs
• Pictorial assembly instructions
• Packaging (perfect for a gift)

Quick installation instructions for the H1 LED bulb:

Step 1-2 : Unclip the plate that secures the bulb in the H1 socket and remove the old bulb.

Step 3 : Remove the adapter from the H1 LED bulb. We put it in place of the bulb, and then fasten the mounting plate.

Step 4 : Insert the bulb into the previously fastened adapter. Connect the bulb to the H1 cube. The bulb power cord with the H1 cube is best placed inside the lamp, between the housing and the reflector. The bulb can be rotated 360° to find the right angle of light for the illuminated area in front of the vehicle.

Step 5 : We put a cover on the housing to protect the inside of the lamp from moisture.
