H1 LED ZES M3 bulb set | 5166 TrueLM

H1 M3 LED bulb kit | Active cooling | 5166 TrueLM | 2x 30W | 12V and 24V

The latest generation of LED bulbs as the main lighting in a car

• A replacement for ordinary H1 bulbs
• Perfect for low and high beam lights

Compact design - do not require connecting additional modules and wiring

Active cooling - via fans - is much more efficient than passively cooled lamps

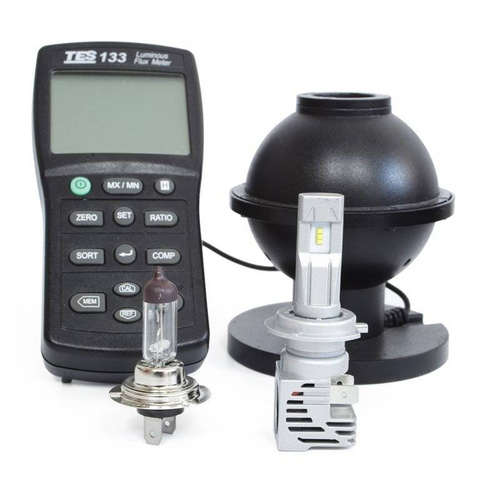

The discrepancy in the luminous efficacy of bulbs given by manufacturers and sellers motivated us to present the efficiency of incandescent bulbs in the most honest form , i.e. comparing the light power of the M3 LED bulb and the tungsten version of the classic low beam bulb .

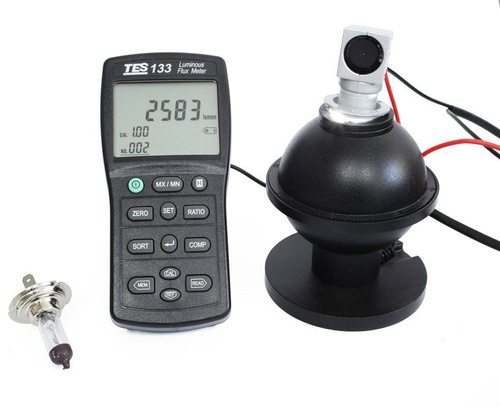

Real light output of M3 LED bulb: 2583 lm

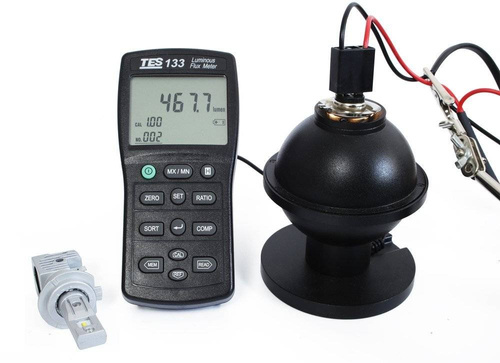

The actual light output of the classic H1 bulb is 467 lm

Summary:

• The M3 LED bulb is 453% more powerful than the classic dipped beam bulb
• LED M3 bulb has 45% lower power consumption

Technical Specifications:

• Model: Set of 2 H1 M3 bulbs
• Number of LEDs: 6 / bulb
• LED type: ZES Chip
• Beam power: 2600 real lumens / bulb
• Supply voltage: 12V - 24V
• Power: 2.3A @ 13V, 30W / bulb
• Light color: cold white (6500k)
• Bulb replacement: H1
• CAN-BUS filters: None. Installing these LED bulbs in modern cars may cause the error "burnt bulb" to be displayed on the on-board computer. The error can be cleared thanks to the LED H1 CAN-BUS filters. We offer filters at our other auctions.

Plug & Play installation - consists in disconnecting and disconnecting the old bulb from the cube, and inserting and connecting a new H1 LED bulb

Application of H1 bulbs:

• bulbs in the fog lamps
• low beam bulbs (short)
• high beam bulbs (long)

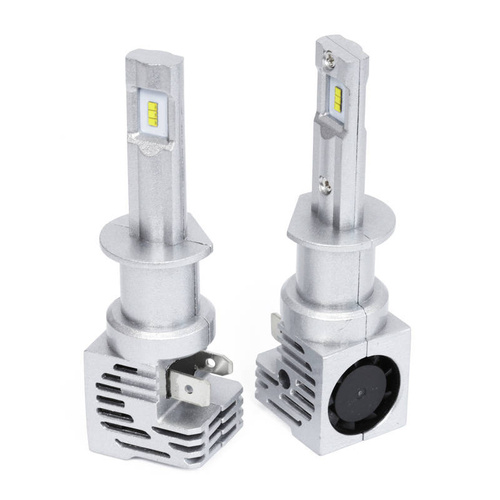

H1 M3 bulb is a small bulb made in LED technology, the dimensions of which are similar to those of ordinary tungsten bulbs.

Consequently, the LED H1 M3 bulb, unlike other H1 LED bulbs for low / high beam, can be successfully installed:

1. In the lamp, in which the bulb is mounted via an adapter.
2. In such a way that the lid protecting the inside of the lamp against moisture is fastened in place.
3. Wherever it is not possible to install other LED substitutes.
