H4 LED ZES M3 bulb set | Low beam / high beam / 5166 TrueLM
- They have a compact design, do not require additional modules and wiring. Thanks to active cooling with fans, they are more efficient than passively cooled bulbs.
H4 M3 LED bulb kit | Active cooling | 5166 TrueLM | 2x 30W | 12V and 24V
The latest generation of LED bulbs as the main lighting in a car
- A replacement for ordinary H4 bulbs
- Perfect for low and high beam lights
Compact design - do not require connecting additional modules and wiring
Active cooling - via fans - is much more efficient than passively cooled lamps

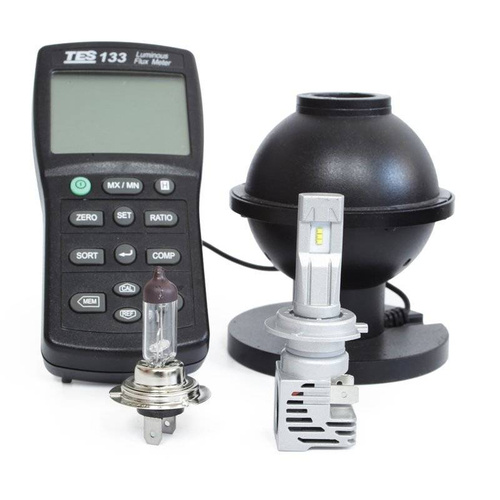

The discrepancy in the luminous efficacy of bulbs given by manufacturers and sellers motivated us to present the efficiency of incandescent bulbs in the most honest form , i.e. comparing the light power of the M3 LED bulb and the tungsten version of the classic low beam bulb .

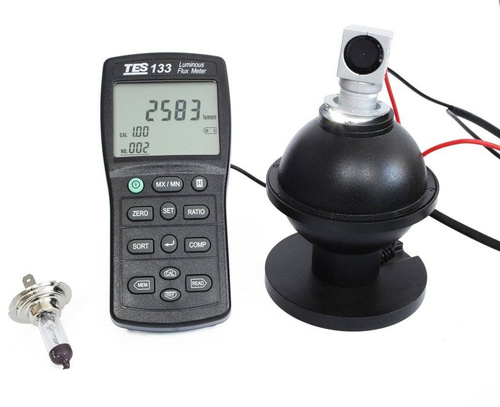

Real light output of M3 LED bulb: 2583 lm

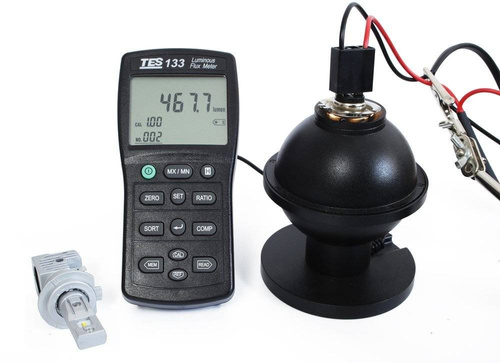

The actual light output of the classic H4 bulb is 467 lm
Summary:
- The M3 LED bulb is 453% more powerful than the classic dipped beam bulb
- LED M3 bulb has 45% lower power consumption
Technical Specifications:

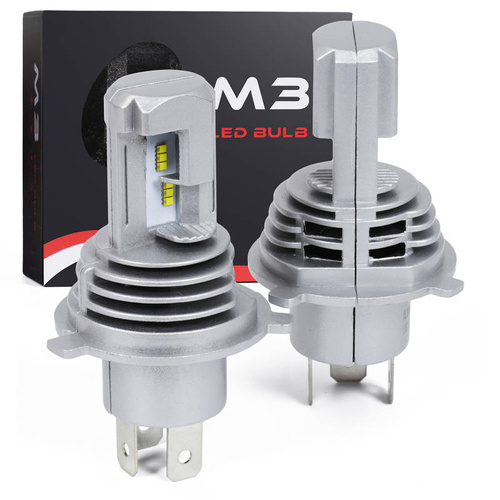

- Model: Set of 2 H4 M3 bulbs
- Number of LEDs: 6 / bulb
- LED type: ZES Chip
- Beam power: 2600 real lumens / bulb
- Supply voltage: 12V - 24V
- Power: 2.3A @ 13V, 30W / bulb
- Light color: cold white (6500k)
- Bulb replacement: H4
- CAN-BUS filters: None. Installing these LED bulbs in modern cars may cause the error "burnt bulb" to be displayed on the on-board computer. The error can be cleared thanks to the LED H4 CAN-BUS filters. We offer filters at our other auctions.
Plug & Play installation - consists in disconnecting and disconnecting the old bulb from the cube, and inserting and connecting a new H4 LED bulb
Application of H4 bulbs:
- bulbs in the fog lamps
- low beam bulbs (short)
- bulbs in high beam (long)

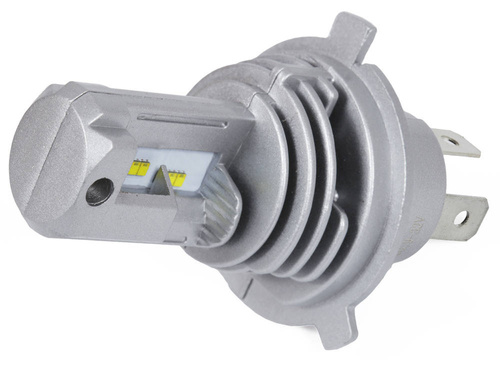

The H4 M3 bulb is a small bulb made in LED technology, the dimensions of which are similar to those of ordinary tungsten bulbs.
Consequently, the LED H4 M3 bulb, unlike other H4 LED bulbs for low / high beam, can be successfully installed:
- In the lamp, in which the bulb is mounted via an adapter.
- In such a way that the lid protecting the inside of the lamp against moisture is fastened in place.
- Wherever it is not possible to install other LED substitutes.
