H3 LED ZES M3 bulb set | 5166 TrueLM
- - LED bulbs H3 M3 are the latest generation of car lighting.
- - They work perfectly in low beam and high beam lights.
- - Compact design, no additional modules or wiring required.
- - Active cooling through fans.
H3 M3 LED bulb kit | Active cooling | 5166 TrueLM | 2x 30W | 12V and 24V
The latest generation of LED bulbs as the main lighting in a car
- A replacement for ordinary H3 bulbs
- Perfect for low and high beam lights
Compact design - do not require connecting additional modules and wiring
Active cooling - via fans - is much more efficient than passively cooled lamps

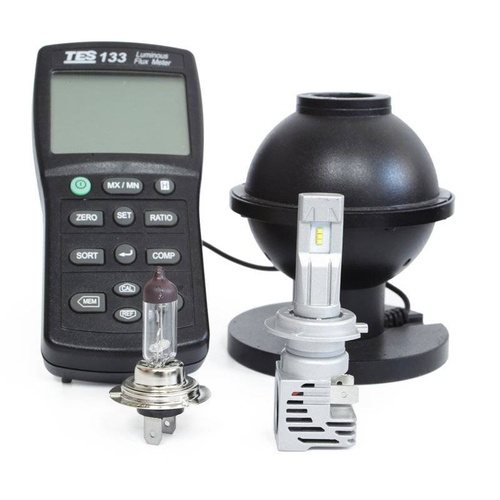

The discrepancy in the luminous efficiency of bulbs given by manufacturers and sellers motivated us to present the efficiency of bulbs in the most honest form , i.e. to compare the light power of the M3 LED bulb and the tungsten version of the classic low beam bulb .

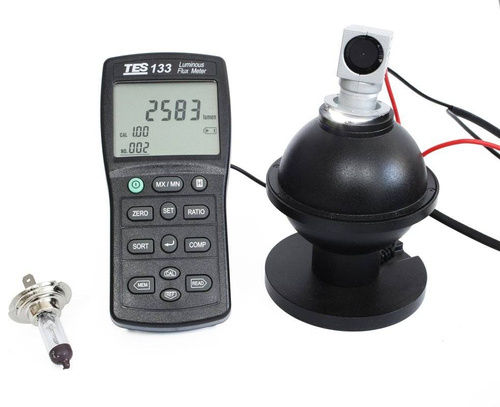

Real light output of M3 LED bulb: 2583 lm

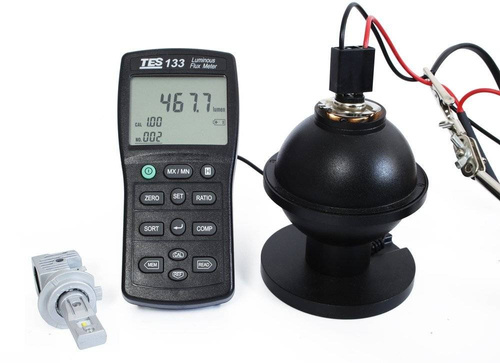

The actual light output of the classic H3 bulb is 467 lm
Summary:
- The M3 LED bulb is 453% more powerful than the classic dipped beam bulb
- LED M3 bulb has 45% lower power consumption
Technical Specifications:
- Model: Set of 2 H3 M3 bulbs
- Number of LEDs: 6 / bulb
- LED type: ZES Chip
- Beam power: 2600 real lumens / bulb
- Supply voltage: 12V - 24V
- Power: 2.3A @ 13V, 30W / bulb
- Light color: cold white (6500k)
- Bulb replacement: H3
- CAN-BUS filters: None. Installing these LED bulbs in modern cars may cause the error "burnt bulb" to be displayed on the on-board computer. The error can be cleared thanks to the LED H3 CAN-BUS filters. We offer filters at our other auctions.
Plug & Play installation - consists in unplugging and disconnecting the old bulb from the cube, and inserting and connecting a new H3 LED bulb
Application of H3 bulbs:
- bulbs in the fog lamps
- low beam bulbs (short)
- bulbs in high beam (long)
The H3 M3 bulb is a small bulb made in LED technology, the dimensions of which are similar to those of ordinary tungsten bulbs.
Consequently, the LED H3 M3 bulb, unlike other H3 LED bulbs for low / high beam, can be successfully installed:
- In the lamp, in which the bulb is mounted via an adapter.
- In such a way that the lid protecting the inside of the lamp against moisture is fastened in place.
- Wherever it is not possible to install other LED substitutes.
