JX-S267K | Double earthed socket + 2x USB hidden in the tabletop

Double earthed socket + 2x USB hidden in the tabletop

• 2x USB socket
• Made of aluminum
• Factory installed cable
• Child lock

Technical data:

• Powder coated die-cast aluminium

• Colour: black
• Power supply: 230-250V 50/60Hz
• USB power supply: 5V / 2.1A
• Rated Current: 10/16A
• Grounding: via pin
• Degree of protection: IP20
• Type of sockets: 2x 2P+Z (type E) + 2x USB
• Maximum load: 2500W
• Cable length: 1.8m (3G1.0mm²)
• External dimensions: 263 x 118 x 68 mm (W/H/D)
• Mounting hole dimensions: 220 x 108 x 66 mm (W/H/D)
• Installation: in the countertop
• Compliance with CE , RoHS standards

• Protection of current openings against children's access

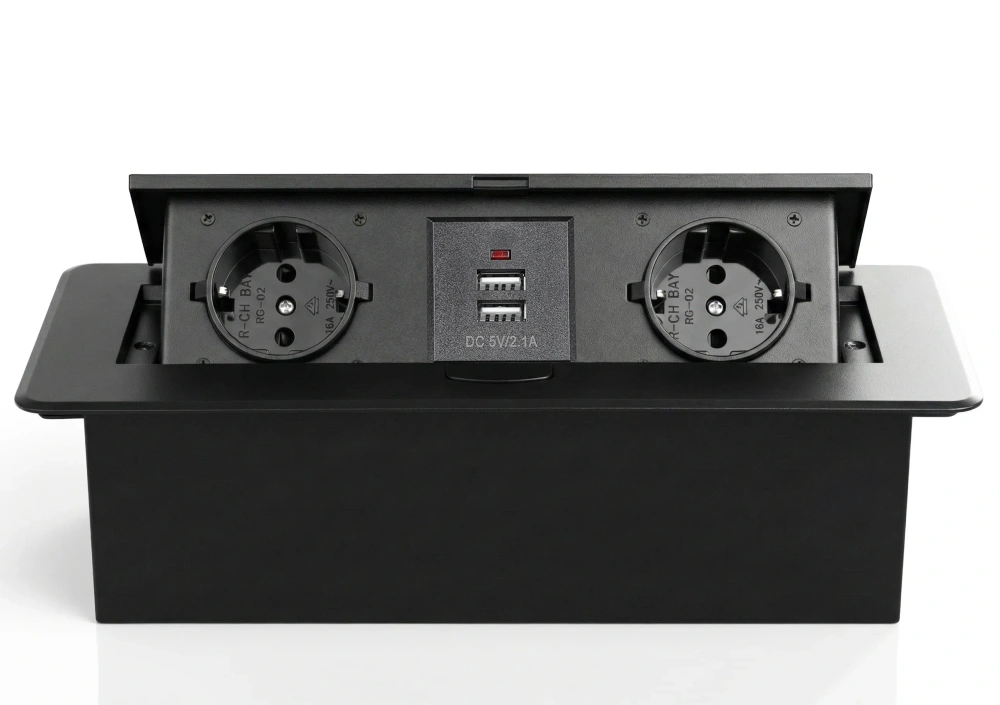

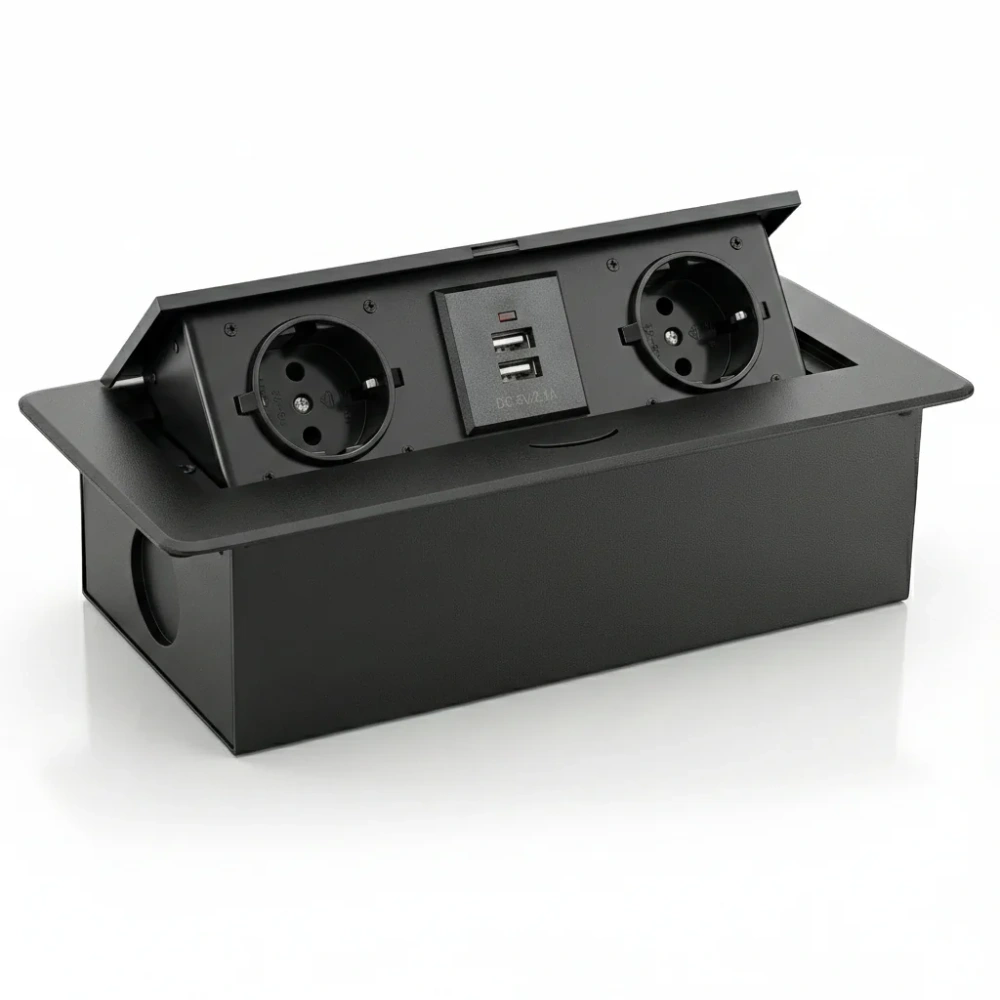

A set of two grounded sockets with two USB sockets in a housing hidden in the tabletop

Intended for installation in kitchen countertops, desks, tables . Possible horizontal and vertical installation allows you to easily hide the sockets.

A panel with a strip opened in a simple way with a button.

The housing, carefully made of high-quality aluminum powder coated in black, matte color, will blend in with any table top and will suit any interior.

Electrical sockets are equipped with current path shutters that protect curious little ones from danger.

Thanks to the factory-installed 1.8 meter long cable, the product is a form of a permanently installed extension cord / power strip, and the electrical installation comes down to plugging the plug into the existing socket.

The housing should be installed in a worktop with a thickness of min. 25mm.
