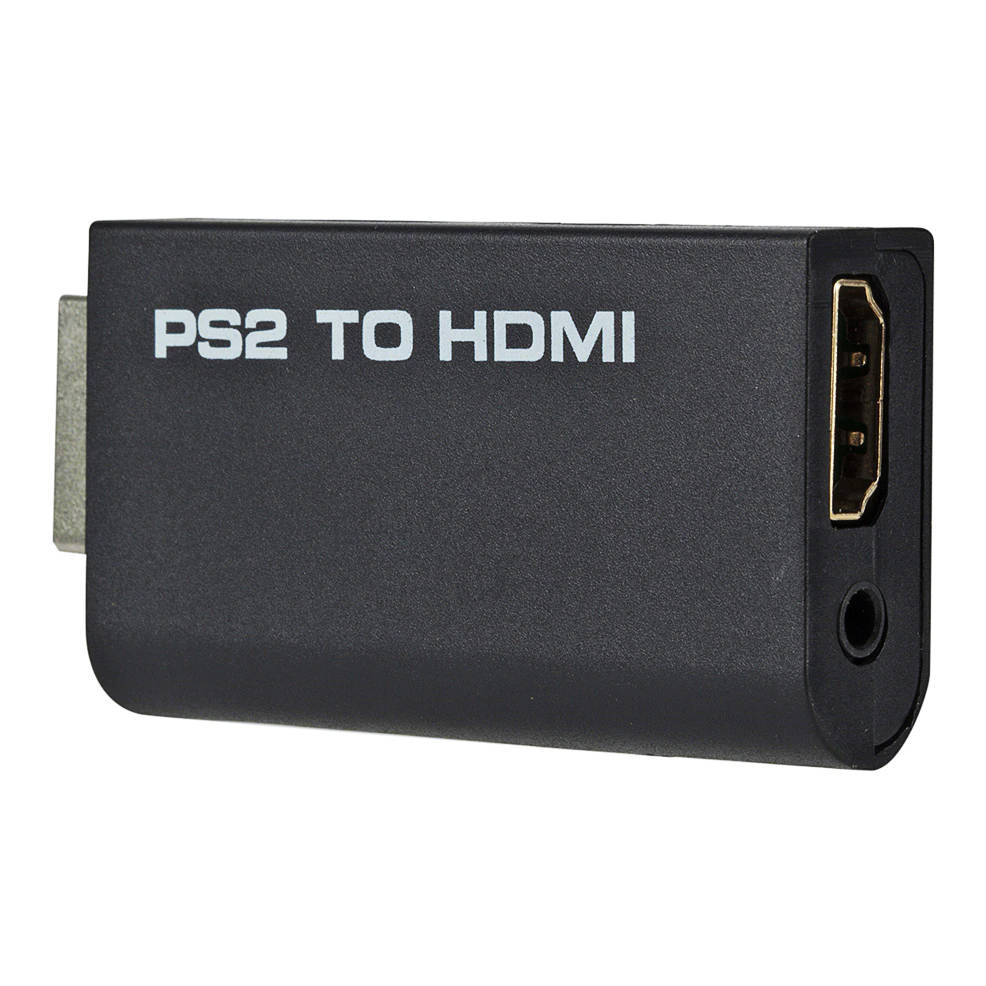

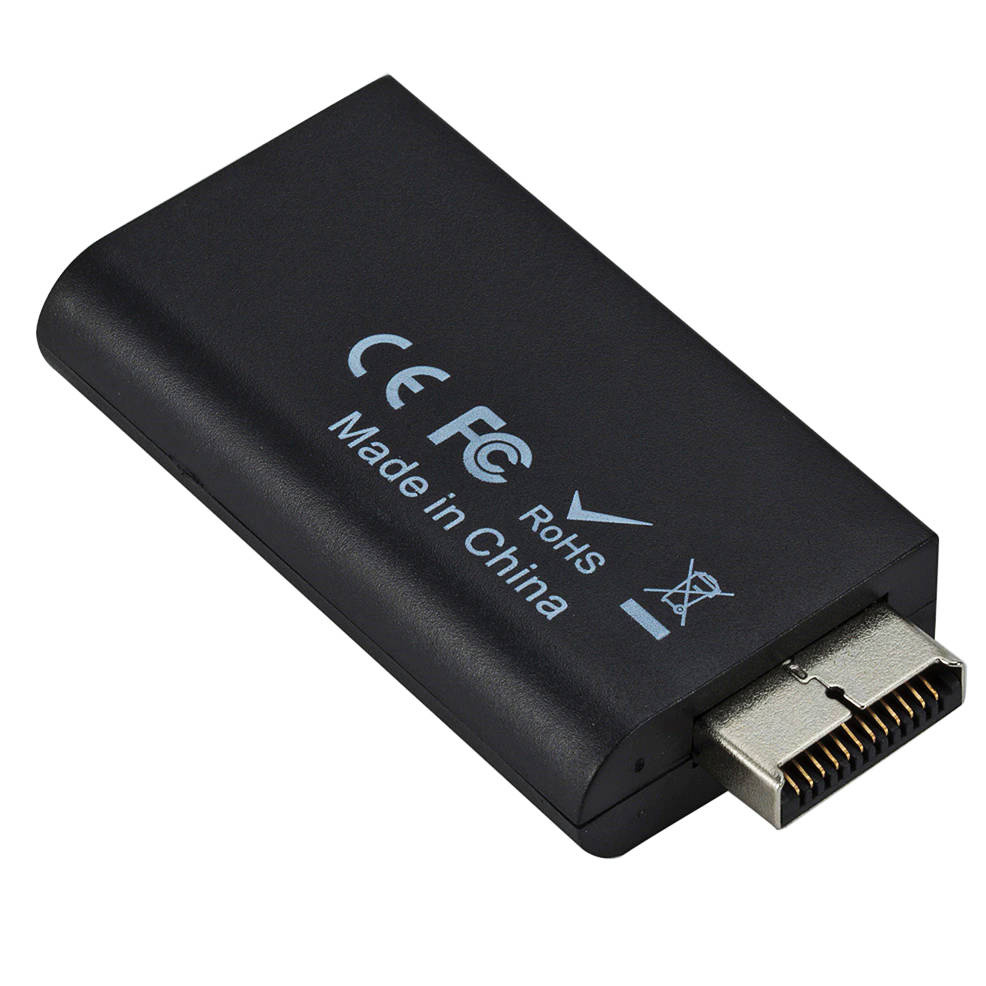

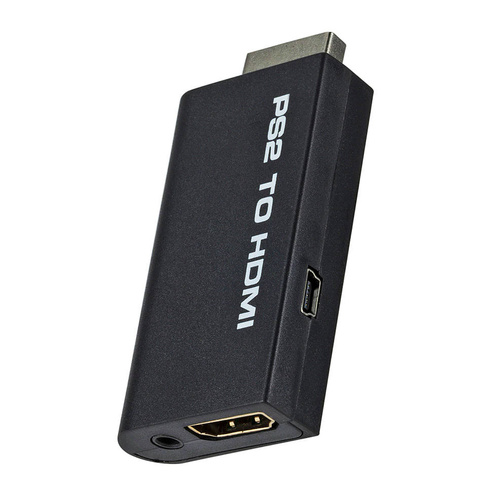

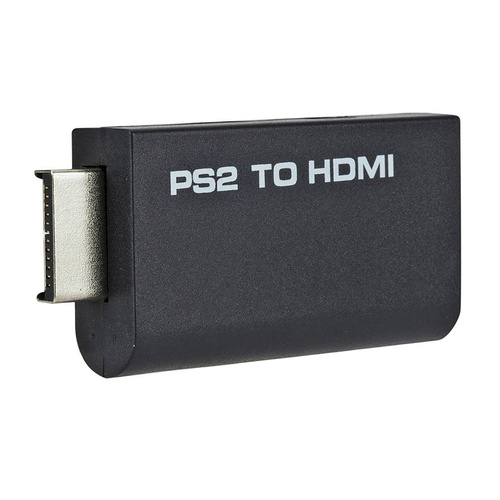

HY-31 | Sony Playstation 2 to HDMI adapter + 3.5mm mini-jack

The adapter allows you to connect the Sony Playstation 2 console to a TV, monitor or projector with an HDMI input.

• The adapter interpolates the console display modes such as NTSC 480i, 480p, PAL 576i to 1080p , providing advanced signal processing with high precision, color and resolution. No transmission loss , full digital video and audio.

• It allows you to play on modern screens with high resolution.

• An additional 3.5mm audio jack allows you to connect a speaker or soundbar to better enjoy the game.

• The converter requires an external 5V power supply via the included micro USB cable

• It works on the Plug & Play principle - just plug it into the console and connect it with the TV via HDMI cable

In order for the adapter to correctly display the image, it is necessary to change the console settings.

Belongs:

1. Turn on the console on the original cable
2. Enter the options in the above tab "System Configuration"
3. Go to "Component Video Out"
4. Set "RGB" to "Y CB / PB CR / PR"
5. Unplug the cable, then connect the adapter and HDMI cable and set the appropriate output in the TV options
6. Ready!

Specification:

• Input: PS2 YPbPr YCbCr
• Output: 1x HDMI, 1x 3.5mm audio jack
• Resolution: 1080p maximum
• Cooperation: TV, projector, monitor
• Input signal resolution: NTSC 480i, 480p, PAL 576i
• Color: black
• Dimensions: 34 x 71 x 14 mm
• Weight: 24 g
• It does not require additional drivers
