Solar-powered wireless tire pressure and temperature monitoring system

Safety through precision

The wireless TPMS system allows you to monitor the sensor readings in each tire for:

• tire pressure
• tire temperatures

Sensors calibrated they are so that precisely and They quickly discovered sudden changes in tire pressure. A set of sensors sends information to the control panel within 3 seconds of a sudden change in pressure or temperature (or every 3 minutes with slight fluctuations).

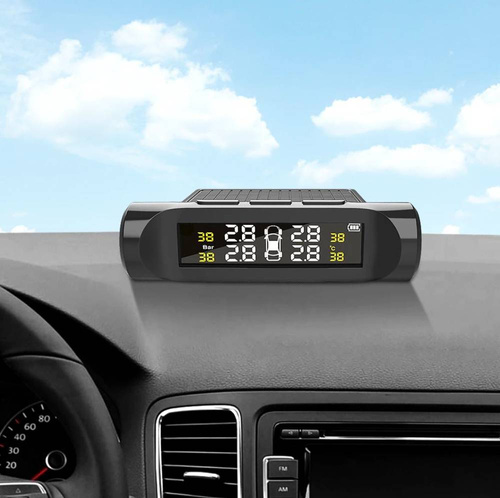

The intuitive, clear LCD display allows for easy checking of readings.

Four wireless TPMS sensors equipped are independent battery powered (4 CR1632H batteries are included).

The system control unit is powered by solar energy or by the included USB cable, which makes the system is reliable and works in all conditions lighting .

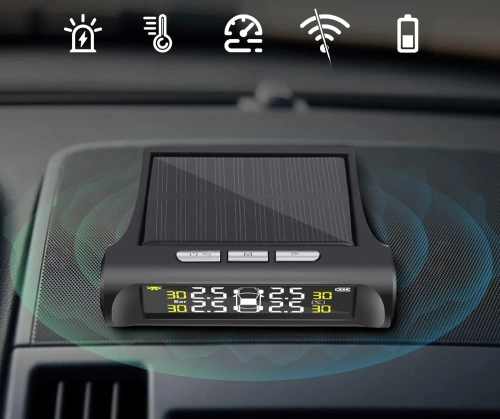

Fast and precise alarms

The tire pressure monitoring system provides fast and accurate alarms for low pressure, high temperature, slow and rapid air leaks. By reacting to irregularities immediately, the user can take immediate action to prevent potential problems.

Easy installation and wide compatibility

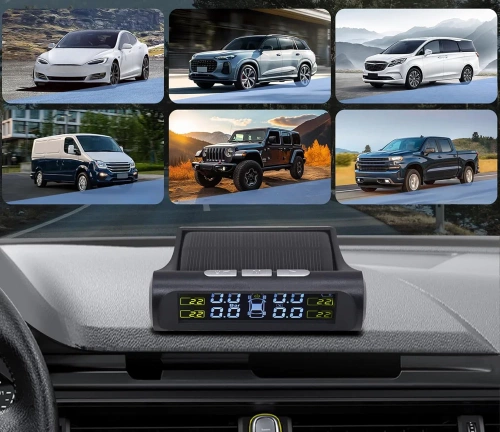

The wireless installation of the four-sensor system allows for installation without the need to remove the tires. The TPMS is compatible with a wide range of vehicles, from SUVs to campers, making it an ideal choice for a wide range of users.

Multifunction LCD display

The color LCD screen displays real-time pressure and temperature data in both metric (bar, °C) and imperial (psi, °F) units. Adjustable brightness allows for convenient reading of data both day and night.

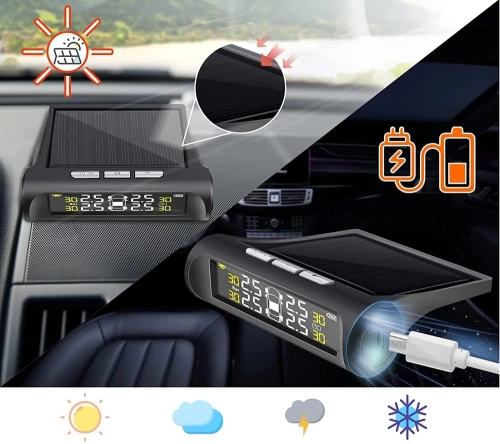

Solar and USB

The system uses dual power supply – solar energy and USB charging. Thanks to this, even in unfavorable weather conditions, TPMS ensures continuous operation, which increases the comfort and safety of travel.

Waterproof and durable

The sensors are IP68 waterproof, meaning they are resistant to harsh weather conditions, such as rain and dust. Additionally, the durable construction made of aerospace materials ensures the longevity of the system.

Precise pressure monitoring

Thanks to advanced external sensors that monitor pressure with an accuracy of ±0.1 bar, the system guarantees precise measurements for each wheel. Data is updated in real time, allowing for immediate reaction in the event of problems such as a drop in pressure or an increase in tire temperature.

MAIN FUNCTIONS

• Audible and visual alarm function inheritance or I will grow pressure.

• Alarm when temperature rises - we set the value above which the alarm is to be displayed

Lower and upper threshold values for pressure and temperature after which an alarm will be displayed can be set by yourself.

Increased driving safety

By accurately monitoring tire pressure and temperature In real time, the system helps prevent tire damage, which can lead to dangerous driving situations.

Audible alarms and visual warning signals, such as low or high pressure, high temperature or air leakage, increase driving safety. This allows the driver to react quickly to potential problems, extending tire life, improving fuel efficiency and minimizing the risk of breakdowns.

Durability and weather resistance

The tire pressure monitoring system sensors are waterproof IP68, which means they are completely resistant to water and dust. Regardless of the weather conditions – rain, snow or strong heat – the system works reliably. The durable housings of the sensors are resistant to corrosion, which additionally increases their durability and reliability in long-term use. Additionally, anti-theft caps protect against the loss of sensors during travel.

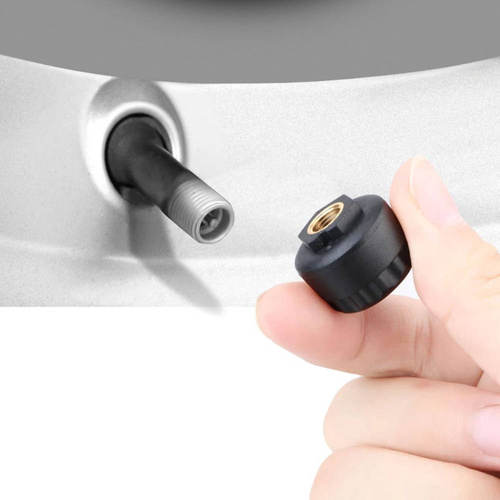

TPMS sensor installation:

1. We unscrew the valve nut
2. We screw on the TPMS sensor body
3. We screw on the TPMS sensor housing
4. Use the key to make sure that the sensor housing fits tightly to the body and that the whole thing is properly seated on the valve.
5. We check the valve tightness after installing the sensor

Alternatively to points 2-3-4 , first make sure the casing is securely screwed to the body, and then screw the whole thing onto the valve.

Changing the battery in the TPMS sensor:

Using the included key, unscrew and remove the housing. Replace the CR1632H battery in the sensor and replace the housing.

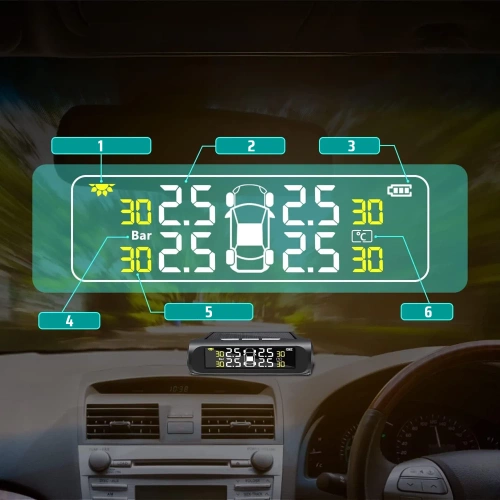

Real-time monitoring

The LCD screen clearly displays the most important information:

1. Solar charging
2. Pressure for each tire
3. Battery status
4. Pressure unit (Bar/PSI)
5. Temperature for each tire
6. Temperature unit (°C/°F)

Technical specifications:

• Sensor operating temperature range: -20°C - +80°C
• Control unit operating temperature range: -20°C - +70°C
• TPMS sensor weight: 10g
• Pressure measurement range of the sensor: 0 - 5 Bar
• Pressure measurement accuracy: 0.1 Bar
• Transmitting Band: 433.92 MHz
• Color LCD display
• Battery capacity: 400 mAh
• Sensor waterproof: IP68
• Response time in an emergency: 3 seconds
• Receiver/display power supply: Solar panel / USB 5V
• TPMS sensor power supply: CR1632H 3V battery

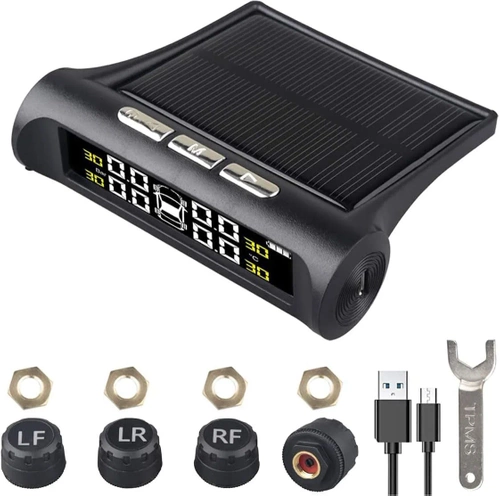

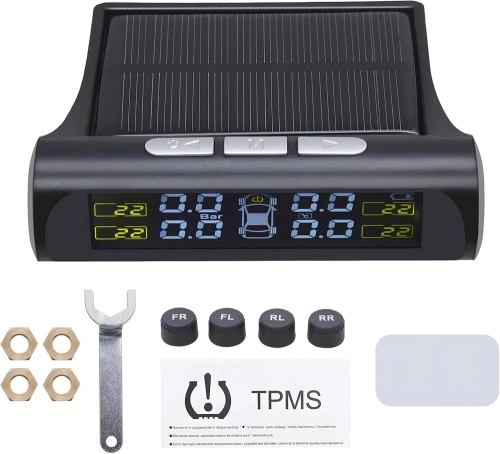

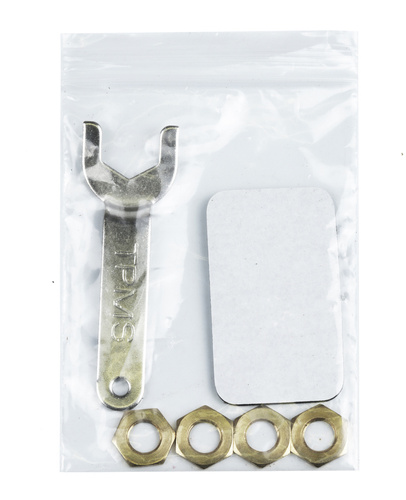

The set includes:

• Wireless control unit with LCD display
• 4 TPMS sensors
• TPMS sensor tightening and servicing wrench
• 4 nuts to stabilize the valve on the outside of the tire
• Self-adhesive foam pad for mounting the control unit in the vehicle's cockpit
