Riser 007S | USB 3.0 | PCI-E 1x-16x | SATA power supply

• The use of a PCI-E connector with a thickness of 1.5 mm provides maximum stabilization in the motherboard socket. Gold-plated contacts in combination with a reinforced structure guarantee the durability of the connector and the continuity of the electrical connection at the highest level throughout the lifetime of the Riser.

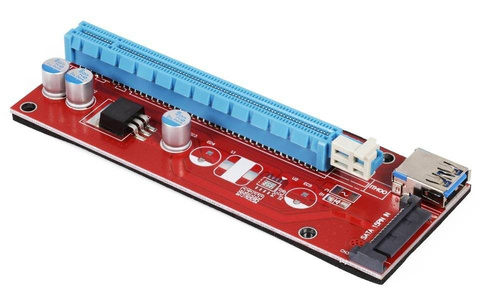

• Based on proven solutions, three high-quality capacitors are through-hole ( THT ) soldered, not surface soldered. As a result, Risers are characterized by very high mechanical and electrical strength.

Product information:

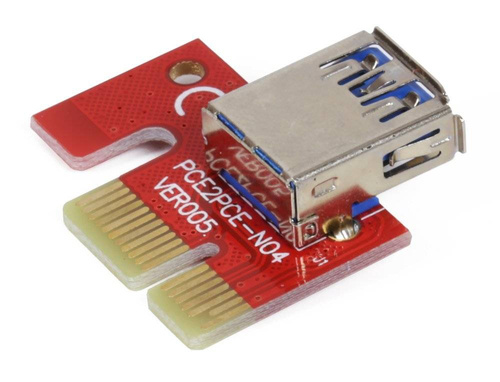

• PCI-E plugs electrically connected with a USB 3.0 cable suitable for all PCI-E slots, i.e. 1x, 4x, 8x, 16x
• Built-in, six-pin power socket with a SATA socket adapter, allowing you to connect additional power to the card, thus relieving the motherboard

Dimensions:

• Riser: 122mm x 45mm x 11mm
• USB cable length: 60 cm

• Thick, solid USB cable with a thickness of 6.5 mm working in the 3.0 standard ensures maximum data transmission when connecting components.
• Thanks to the angled (90 °) connector , cables can be positioned so that they do not create tension on the motherboard and there is adequate airflow around the components.

• The offered Risers are equipped with self-adhesive foam , which is an excellent insulation for through-hole solders and tracks. This improves the safety of the equipment both during assembly and during the operation of the excavator
