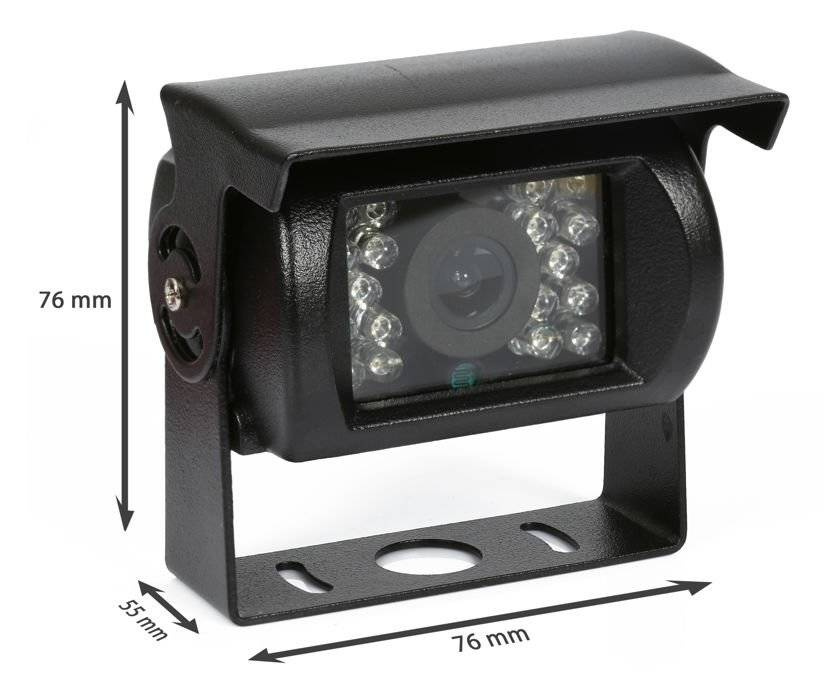

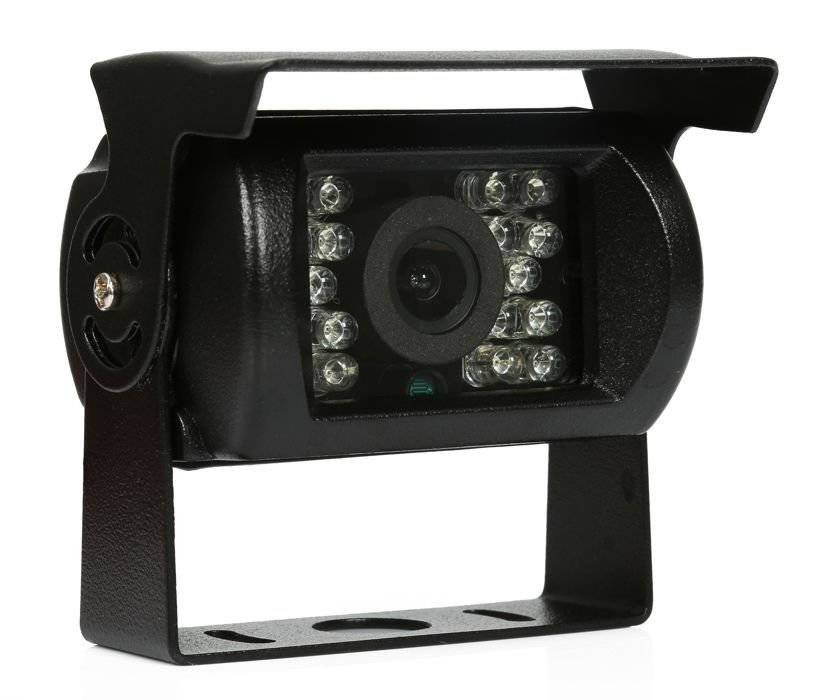

Universal reversing camera with 18 IR LEDs and an anti-pollution cover

The camera comes with a 10 meter long VIDEO cable

• automatic activation of the camera when reverse gear is engaged
• the ability to connect to any screen or monitor using a VIDEO RCA cable

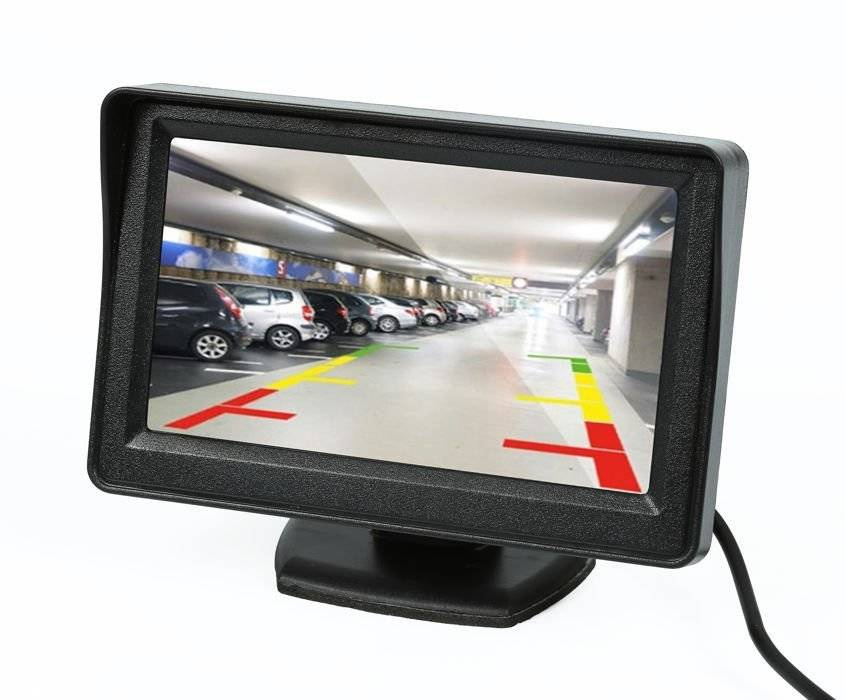

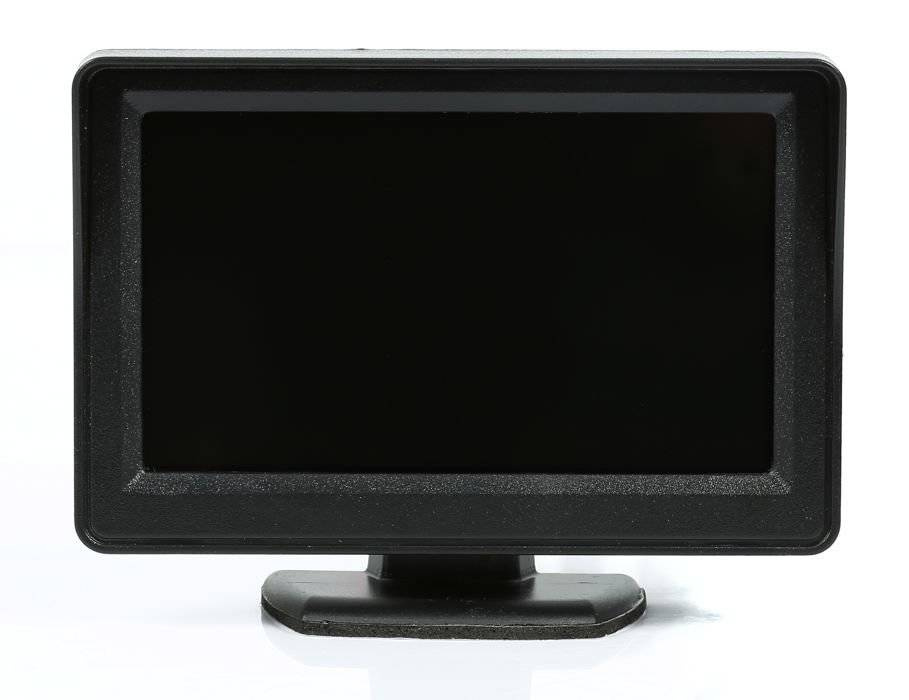

4.3 "widescreen TFT LCD monitor with 2 AV inputs

• possibility of simultaneous connection of two transmitters via RCA (Cinch) - e.g. rear view camera and DVD player, two rear view cameras, etc.
• the screen has an anti-reflective cover
• starts automatically

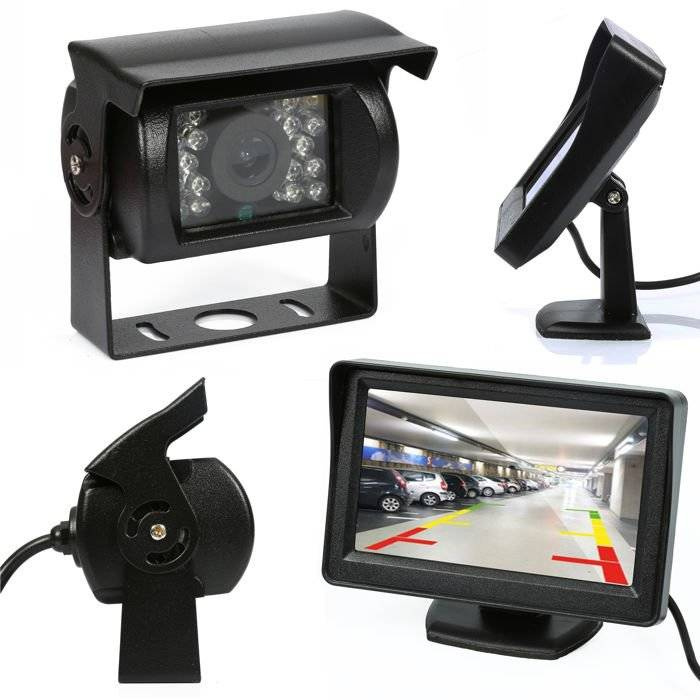

The kit includes:

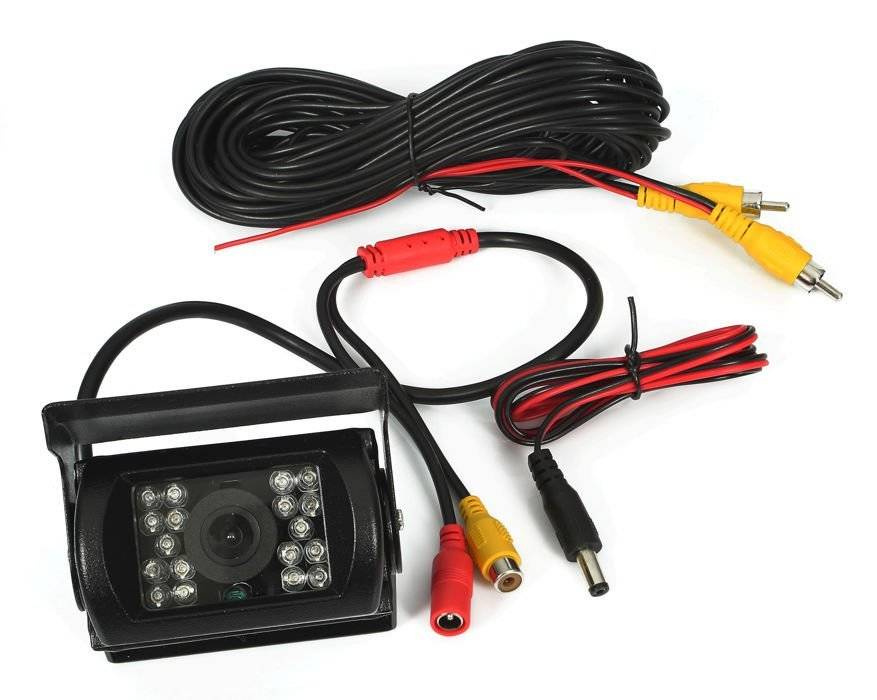

• 12V-24V camera with 18 IR LEDs and dust cover

• 4,3 "widescreen monitor with 2 AV inputs (RCA)

• RCA cable to connect the camera to the monitor (6 meters)

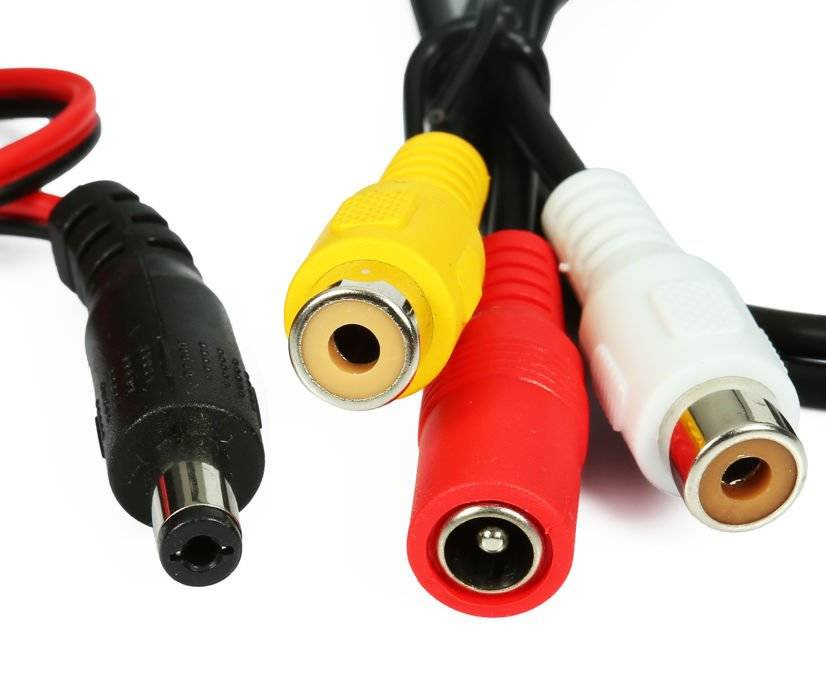

• 2 power cables - for the camera and the monitor

• Aesthetic packaging, connection instructions

The camera is equipped with 18 IR LEDs ensuring good visibility at night.

• The camera is automatically activated when reverse gear is engaged.
• Suitable for any monitor with RCA video input.

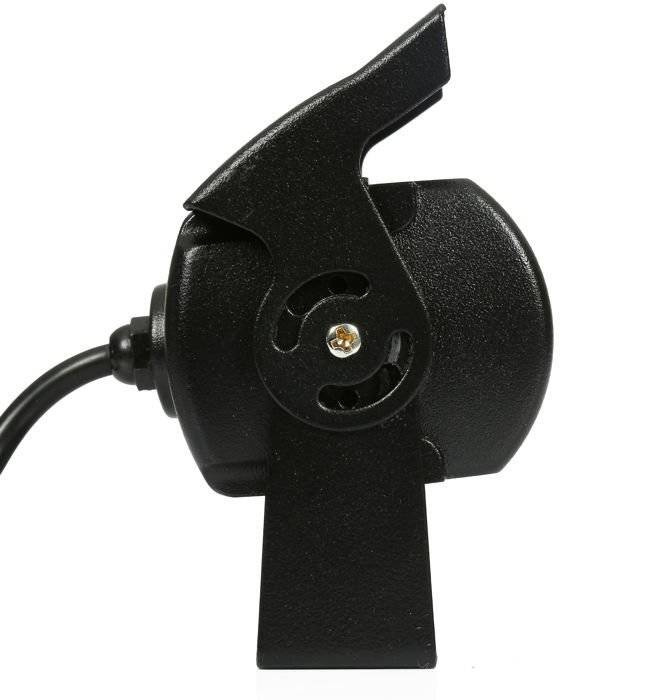

• The camera rotates vertically. The lens is made in the Anti-Fog technology

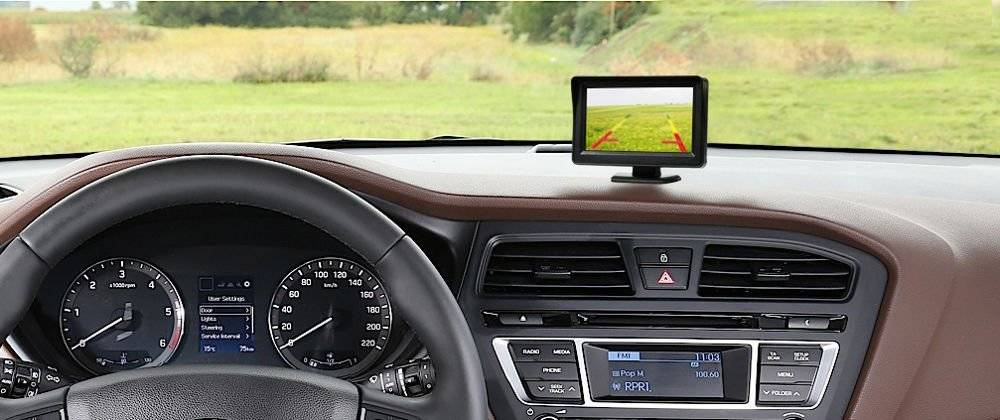

• The camera image has intuitive guidelines for easy parking
• The camera is waterproof and shockproof - IP68

The advantage of the TFT matrix is very good visibility of objects on the screen, even in very bright sunlight.

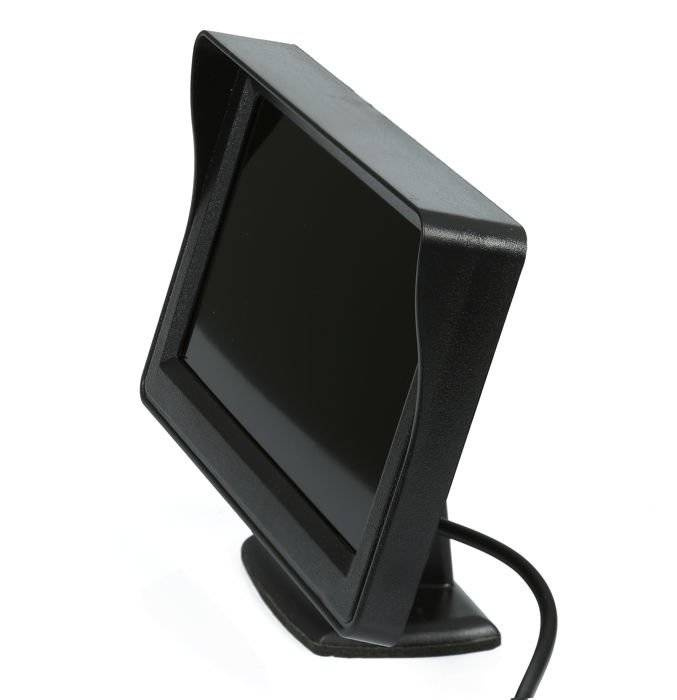

In addition, the monitor is equipped with a cover to prevent sunlight falling directly on the screen.

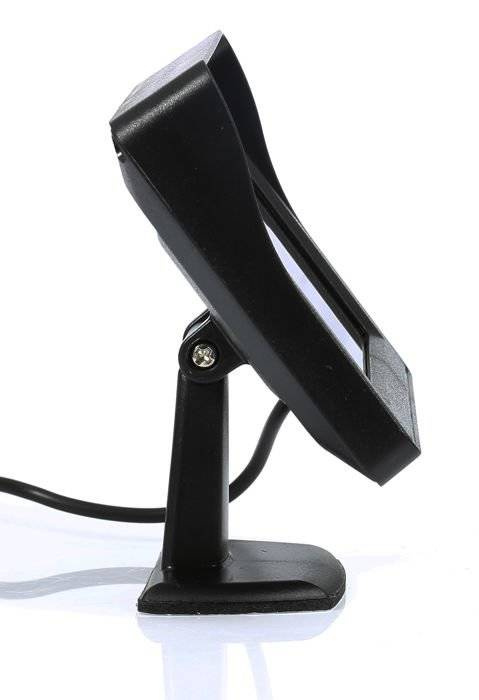

The housing of the monitor is made of high-quality plastic, and the screen has the ability to adjust the vertical tilt

• Works with any image transmitter with RCA (Cinch) input
• The monitor works with intuitive guidelines emitted by the rear view cameras

Camera Specs:

• Camera amenities: Guide lines, 18 IR diodes, lens made in Anti-FOG technology
• Resolution: 648x488
• Image sensor: 1/4 "Color CMOS
• Working temperature: -40 to + 70 ℃
• Power supply 12V - 24V
• Waterproof: IP68
• Current consumption: max 150 mA
• Power cable length: 1m
• Monitor cable length: 10m
• Black colour

The camera's power supply is connected via the attached cable to any module in the car's electrical system that receives power after shifting the reverse gear. Cameras are most often connected to the rear light bulb.

Monitor specification:

• Diagonal: 4.3 "
• System: PAL
• Effective Pixels: 480 x 272
• Picture format: 16: 9
• Working temperature: -20 ° C ~ 60 ° C
• Number of VIDEO inputs: two
• VIDEO input: RCA (Cinch)
• Input signal: Composite video
• Power supply: 12V
• Screen dimensions: width 96 mm, height 53 mm
• Display display with stand: 117mm wide x 76mm high x 16mm thick

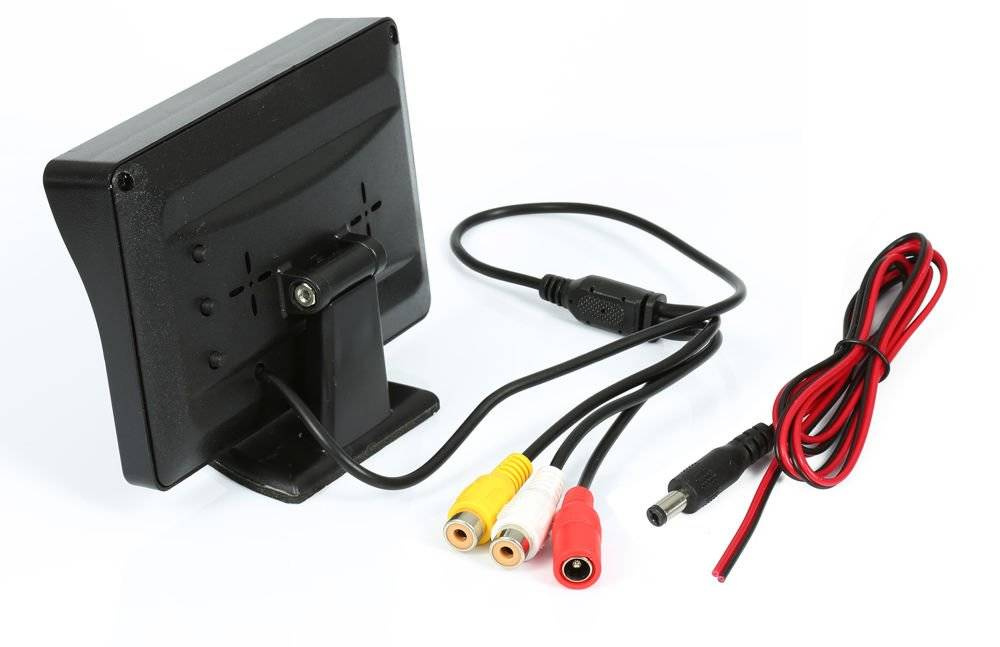

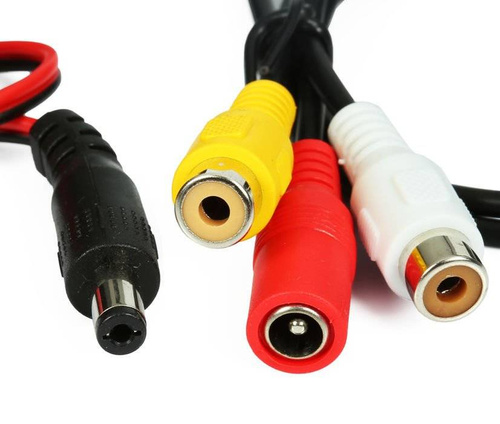

The monitor power supply is connected via the attached cable to any voltage source from the car installation. It is recommended to connect the positive "after ignition", because the monitor consumes a small current in standby mode. There are two female RCA (cinch) sockets next to the monitor, to which we connect the VIDEO signal.
