2in1 | PZ607 PZ470 | 12 / 24V set - 18IR 12-24V reversing camera with 7 "LCD TFT monitor with remote control + 10m AV RCA cable
- - Automatic camera activation when reverse gear is engaged
- - Ability to connect to any screen or monitor
- - Good visibility at night thanks to 18 IR diodes
In a set

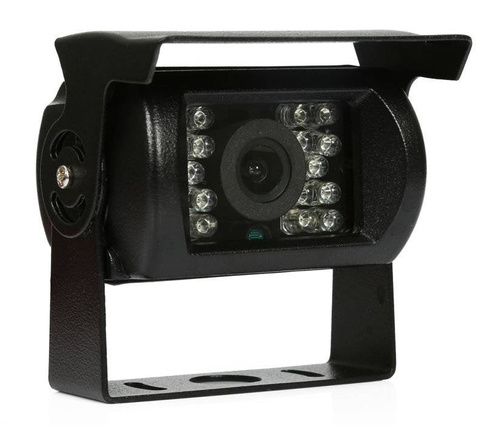

Universal reversing camera with 18 IR diodes with anti-pollution cover 12V - 24V
The camera comes with a 10 meter long VIDEO cable
- automatic activation of the camera when reverse gear is engaged
- the ability to connect to any screen or monitor using a VIDEO RCA cable

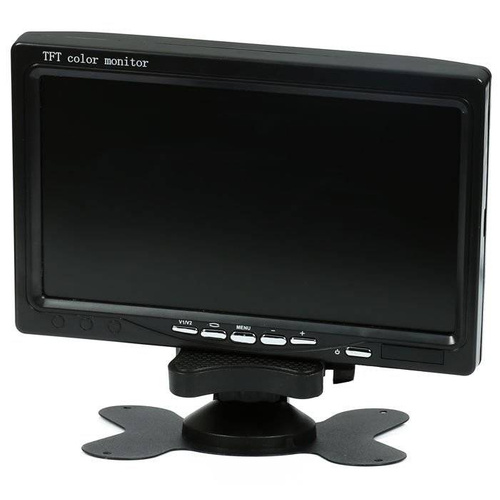

Widescreen TFT LCD monitor 7 "12V - 24V with remote control
- possibility of connecting two transmitters via RCA (Cinch) - e.g. rear view camera, DVD player, etc.
- the set includes a 2-din frame
- the monitor turns on automatically when the vehicle is shifted into reverse gear

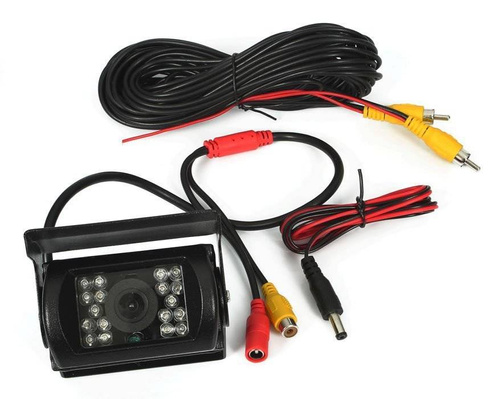

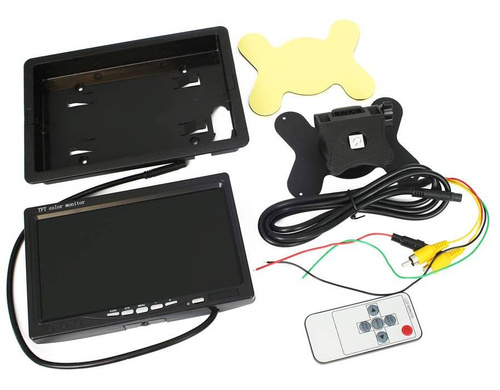

The kit includes:
- 12V-24V reversing camera with 18 IR LEDs and dust cover
- Widescreen TFT LCD monitor 7 "12V - 24V with remote control
- RCA cable to connect the camera to the monitor (10 meters)
- Double-sided tape for sticking the monitor stand
- Power cables
- Aesthetic packaging, connection instructions
The camera is equipped with 18 IR LEDs ensuring good visibility at night.
- The camera is automatically activated when reverse gear is engaged.
- Suitable for any monitor with RCA video input.

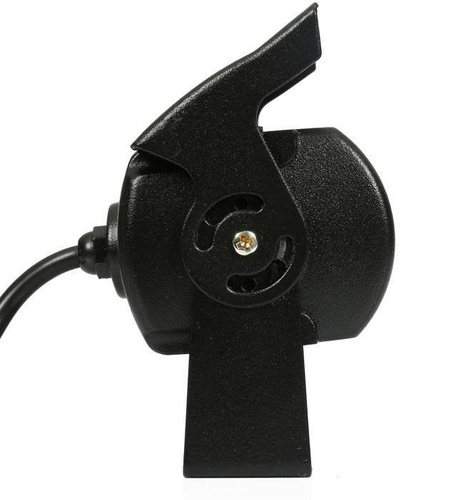

- The camera rotates vertically. The lens is made in the Anti-Fog technology

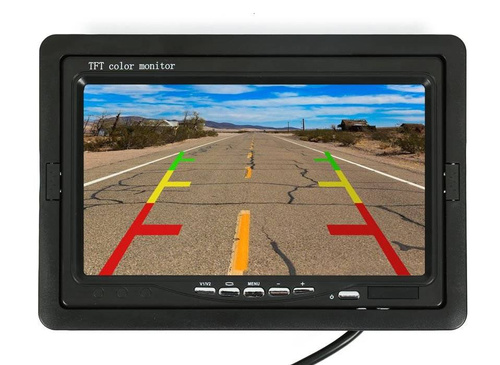

- The camera image has intuitive guidelines for easy parking
- The camera is waterproof and shockproof - IP68

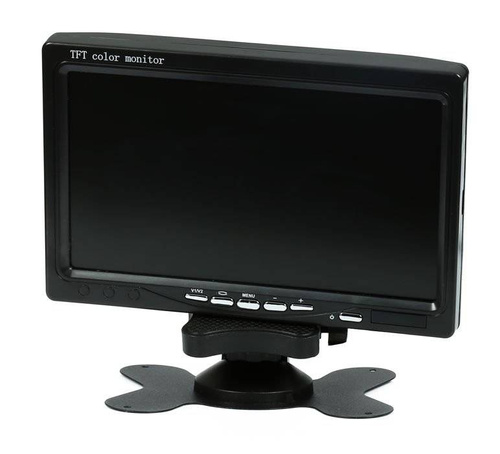

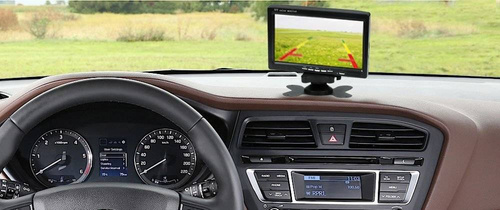

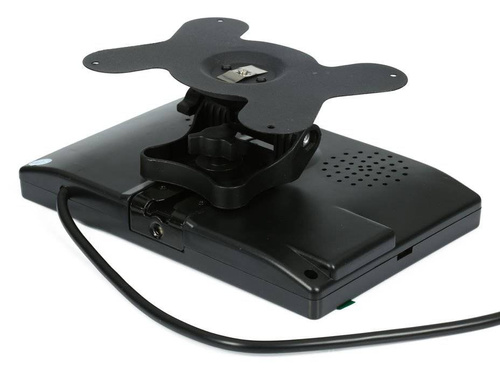

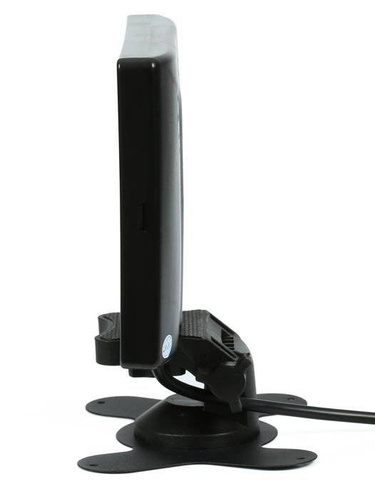

The monitor includes a mount that allows the monitor to be mounted parallel or perpendicular to the base, and is vertically adjustable.

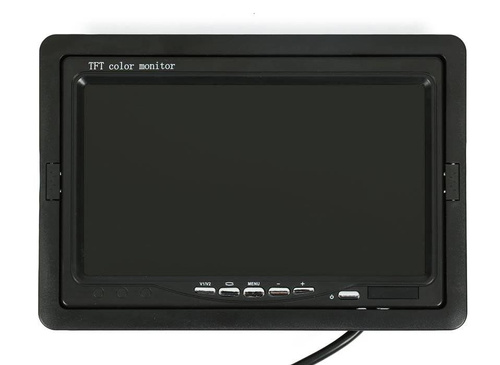

In addition, the set includes a 2-din frame , thanks to which the monitor can be permanently mounted in the cockpit of a car / truck
The advantage of the TFT matrix is very good visibility of objects on the screen, even in very bright sunlight.
The housing of the monitor is made of high-quality plastic, and the screen is vertically adjustable
- Works with any image transmitter with RCA (Cinch) input
- The monitor works with intuitive guidelines emitted by the rear view cameras

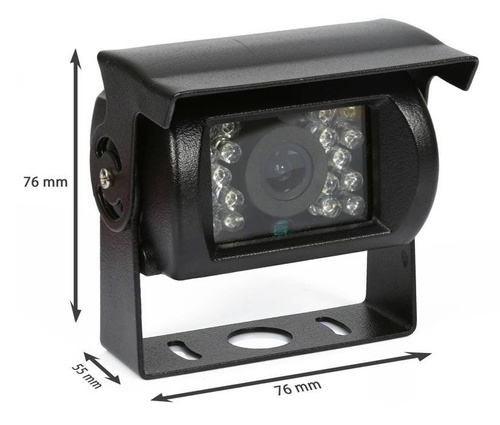

Camera Specs:
- Camera amenities: Guide lines, 18 IR diodes, lens made in Anti-FOG technology
- Resolution: 648x488
- Image sensor: 1/4 "Color CMOS
- Working temperature: -40 to + 70 ℃
- Power supply 12V - 24V
- Waterproof: IP68
- Current consumption: max 150 mA
- Power cable length: 1m
- Monitor cable length: 10m
- Black colour
The camera's power supply is connected via the attached cable to any module in the car's electrical system that receives power after shifting the reverse gear. Cameras are most often connected to the rear light bulb.
Monitor specification:
- Diagonal: 7 "
- System: PAL / NTSC
- Effective pixels: 480 x 272
- Picture format: 16: 9
- Working temperature: -20 ° C ~ 60 ° C
- Number of VIDEO inputs: two
- VIDEO input: RCA (Cinch)
- Input signal: Composite video
- Power supply: 12V / 24V
- Display dimensions: 170 mm wide, 114 mm high, 21 mm deep
- Stand dimensions: 91 mm x 119 mm x height 45 mm

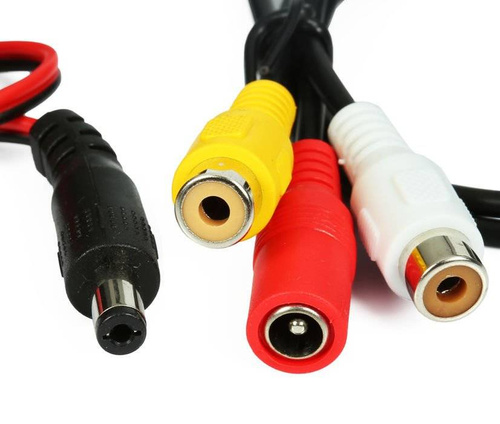

The monitor power supply is connected via the attached cable to any voltage source from the car installation. It is recommended to connect the positive "after ignition", because the monitor consumes a small current in standby mode. There are two female RCA (cinch) sockets next to the monitor, to which we connect the VIDEO signal.

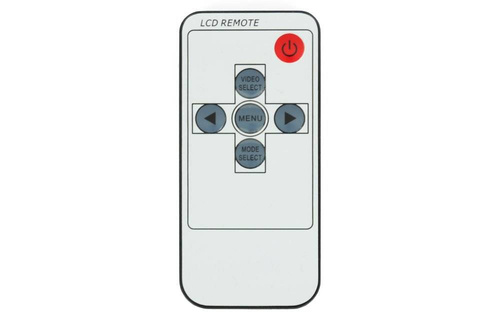

The monitor can be remotely controlled with a dedicated remote control!
