AR-811 | Network toolkit | LAN tester, crimper, wire stripper, LSA crimper | RJ-45, RJ-11
- - Network tool set enabling testing and creation of LAN computer networks.
- - Comprehensive set containing all necessary tools for working with internet networks.
- - Handy case made of high-quality, durable material.
A handy set of networking tools
A must-have for a professional as well as for every home hero.
A complete set for testing and creating LAN computer networks . It contains all the necessary tools needed to work on the Internet, both at work and at home.
The set is stored in an organized manner thanks to a handy case made of high-quality, resistant material.

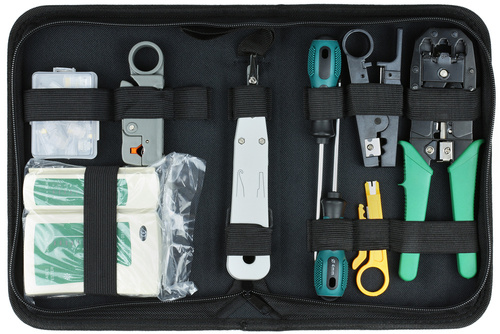

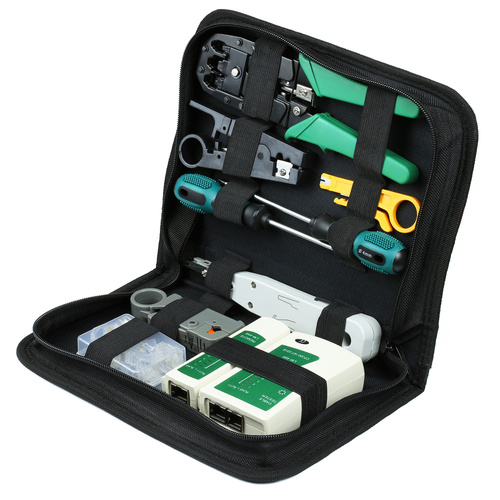

The kit includes:
- Front crimping tool for modular connectors 8p (RJ-45), 6p (RJ-12, RJ-11), 4p (RJ-10, RJ-9)
- Wire stripper and cutter with replaceable blades
- Simple wire stripper and wire clamp for Terminal 110/88
- Flat-blade screwdriver
- Cross screwdriver
- Crimping tool for Krone-type terminals (LSA)
- Insulation stripper for coaxial cables
- 10x RJ-45 male connector (WM8p8c)
- 5x RJ-11 male connector (WM6p4c)
- Cable tester RJ-45, RJ-11

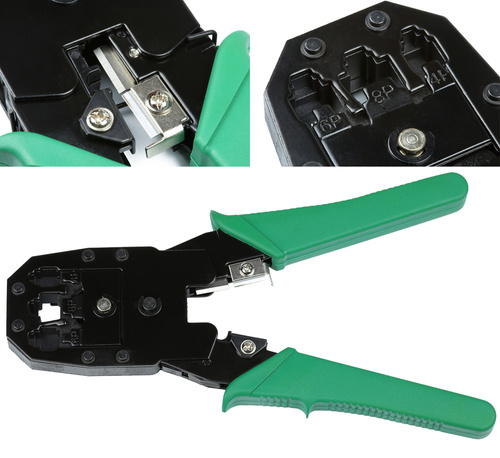

Front crimping tool for modular connectors 8p (RJ-45), 6p (RJ-12, RJ-11), 4p (RJ-10, RJ-9)
The tool enables crimping RJ45 computer, telephone (RJ11, RJ12, also DEC type) and headphone (RJ9, RJ10) plugs, stripping and cutting excess wire. Front crimping ensures that all contacts are pressed evenly .
Wire stripper and cutter with replaceable blades
Insulation stripper for UTP / STP cables and other multi-core cables with diameters of 3.2 - 9mm, as well as flat telephone cables as well as loudspeaker, alarm and coaxial cables. Puller with adjustable diameter of the processed wire and replaceable blades.

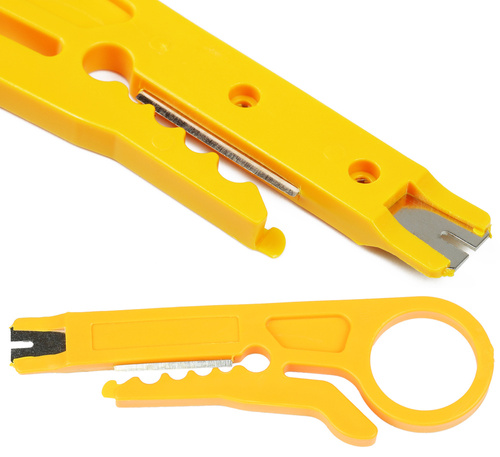

Simple wire stripper and wire clamp for Terminal 110/88
A simple, practical tool that allows you to remove the outer sheath of STP and UTP cables and clamp the wire in the 110 terminal. Perfect for making twisted pair in sockets.

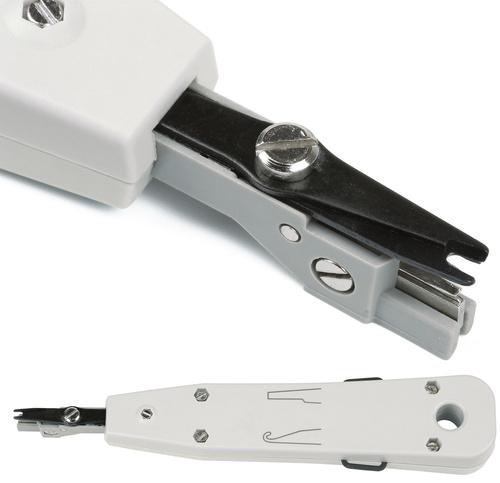

Crimping tool for Krone-type terminals (LSA)
The tool allows for crimping the cable core in patch panels, connectors, keystone modules or boxes equipped with a Krone connector. Excess vein is automatically trimmed when crimped.
Insulation stripper HT-332 for RG 58, 59/62, 6 cables
The tool is equipped with two adjustable blades. It is used for the preparation of coaxial cables for the application of connectors. It offers the ability to work with cables of various thicknesses and to adjust the width of the screen left: 4, 6, 8 and 12 mm.
Cable tester RJ-45, RJ-11
The tester is used to measure the continuity of LAN cabling. It enables detection of faulty connections, short circuits and breaks in cabling. With its help, you can test connections made with UTP and FTP twisted-pair cables terminated with RJ45 plugs and a telephone cable terminated with RJ11 connectors.

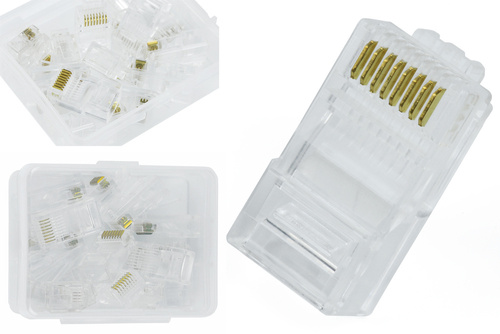

Modular male connector, 8P8C (RJ-45), cat.5e and WM6p4c (RJ-11)
Modular male connector is used for terminating wires in telephone or computer installations.
The male connector housing is made of polycarbonate and the contacts are gold-plated phosphor bronze (6um gold layer).
