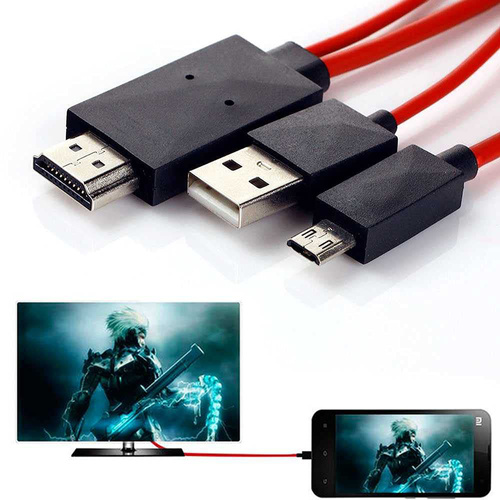

Micro USB - HDMI adapter | MHL | 1080p | 1.8m

The adapter allows you to connect a phone or tablet with a TV equipped with an HDMI socket, allowing the transmission of 7.1 surround sound and FullHD 1080p image .

Mobile High-Definition Link technology allows you to mirror the screen of a mobile device, thanks to which we can enjoy video shows, photos, music, games by displaying them on a large TV screen.

Note: for proper operation, the source device should be equipped with a micro USB 11 pin connector and must support the MHL standard.

The adapter does not require the installation of additional drivers or applications. It works on a Plug & Play basis.

Connection instructions:

1. The cable must be connected to the HDMI input on a FullHD 1080p TV
2. USB end for the USB 2A power supply (charger)
3. A micro USB 11 pin plug for a phone or tablet
4. On the TV set, select the signal source for the appropriate HDMI port

The adapter is compatible only with devices supporting MHL technology equipped with an 11-pin micro USB connector.

• The MHL Checker application available in the Google Play store will help you find out if your device supports MHL HDMI

Technical Specifications:

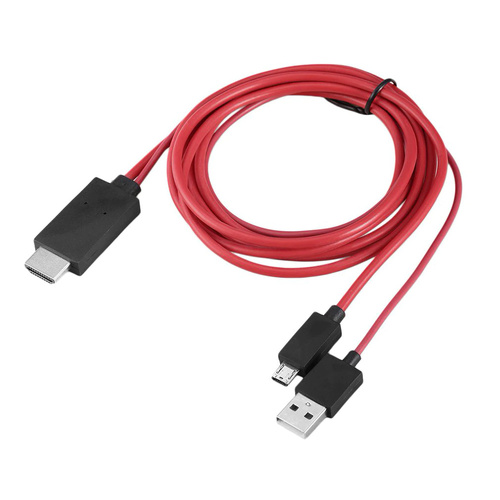

• Cable length: 180 cm + 50 cm USB-A power cable

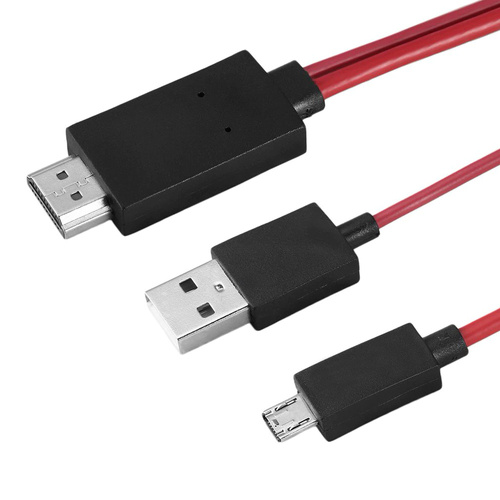

• Connectors: HDMI 1.3b, USB-A, micro USB 11 pin
• MHL technology supported
• Supported resolution: 1920x1080 FullHD
• Support for HDMI standards: 1.3b, 1.3a, 1.3, 1.2a, 1.2, 1.1, 1.0
• Anticorrosive and secured against breakage of the joint
• Flexible, durable PVC cover ensures resistance to damage and ultra-long life
• Shielded cable , total EMI and RFI reduction
• Color depth up to 48 bit
