Reversing sensor system with LED display in the license plate frame

The system is equipped with a LED display that displays the distance measurement and emits a repeatable signal with increasing frequency as you approach the obstacle.

• Easy installation without drilling holes in the bumper like with conventional sensors
• Precise measurement of the distance from an obstacle in the range of 1.5 m -> 0.01 m

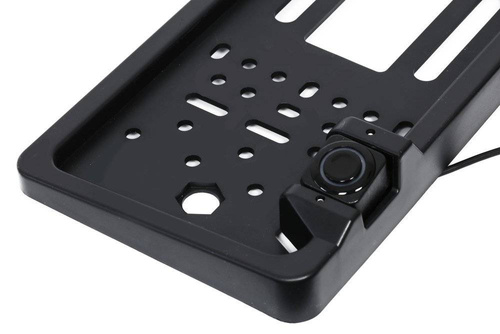

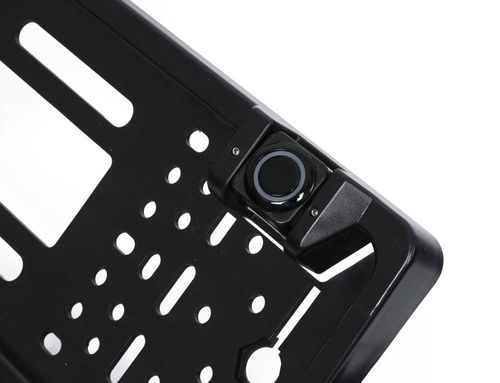

• The adjustable measurement angle of the sensors allows the frame to be mounted also in atypical recesses for a license plate
• Weather resistance IP68

Universal ultrasonic 3-sensor parking sensors are equipped with an LED display with a built-in acoustic signal.

The sensors turn on automatically when reverse gear is selected.

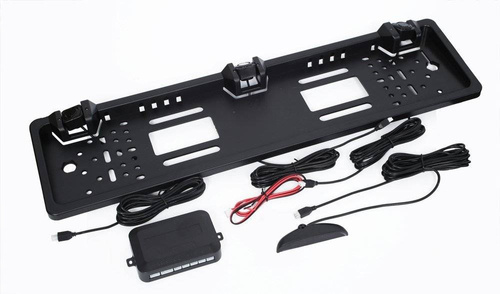

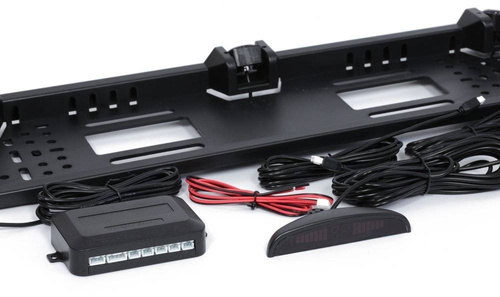

The kit includes:

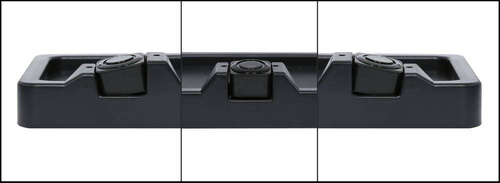

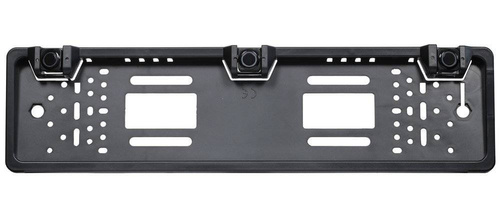

• 3 ultrasonic sensors in the selected color, integrated with the board's frame
• LED display - audible and visual indicator
• Central module - sensor controller
• Matching fragments of self-adhesive double-sided tape - to the buzzer and the central module.
• Instructions for connecting the set
• The perfect box for a gift

Technical Specifications:

• Power supply: 12V (10.5V-16V)
• IP68 - waterproof and protected against dust, sand and dust
• Power consumption: <4W
• Supply current: 40-300mA
• Buzzer dimensions: 42 mm (diameter) x 17 mm (height)
• Device operating temperature: from -40 ° C to + 80 ° C
• Ultrasonic frequency of sensors: 40 KHz
• Sensor cable length: 2.4 m
• Power cord length: 70 cm

Parking assist system

It includes 3 ultrasonic sensors with an audible obstacle detection system

Perfect operation in all conditions

Falling rain does not affect the operation of the device , while the sensors are waterproof to IP69 , which means that they are perfectly protected against ingress of water , dust and any dirt inside the device.

Safety through precision

The sensors are calibrated to precisely detect even the smallest obstacles , such as parking bollards, city railings, high curbs, etc.

Intuitive audio signal

The distance to the obstacle modulates the signal frequency as you approach the obstacle. This will allow the driver to react when the moment is right.
