HDMI - DVI adapter | GOLD | 4K | 3D

• Full support for HDMI 2.0

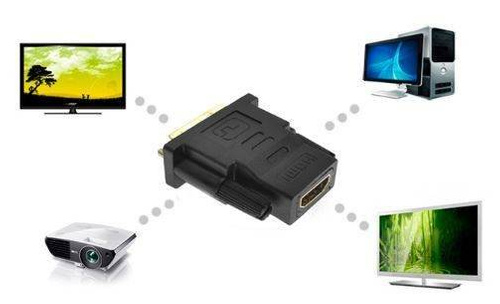

• Works with all cables and devices with HDMI and DVI socket

Connectors:

1. Female (f) HDMI connector
2. Male (f) DVI connector

The bidirectional adapter supports the transmission of video and sound in the HDMI 2.0 standard, which ensures the best image and sound quality

The modern HDMI 2.0 technology is primarily:

• Ultra HD - maximum image resolution 4K @ 50 / 60Hz.

The adapter processes video with enormous image detail , which will be appreciated by owners of modern, large-format TV sets, and for fast 60Hz refreshment, console players and computer players will also find use.

• Support for lower resolutions
• Color depth 48Bit
• 18 Gbps bandwidth - almost twice as efficient as the 1.4 (10.4 Gbps) standard

Support for advanced standards for dual and multi-channel audio transmission:

• 5.1 surround sound
• Dolby Digital
• Dolby HD
• DTS-HD

Technical Specifications:

• Support for 2.0 standards and all the previous ones, i.e .: 1.4b, 1.4a, 1.4, 1.3c, 1.3b1, 1.3b, 1.3a, 1.3, 1.2a, 1.2, 1.1, 1.0
• Anticorrosive and secured against breakage of the joint
• Color depth up to 48 bit
• 24 + 1 pins DVI-D - DUAL LINK
• 19 + 1 HDMI pins for the fastest data transfer
• 18Gbps , 2160P , 32LPCM , 1536kHz Audio , 2xVideo Display
• 3D support
• Ethernet and Audio Return Channel
• CE, RoHS certificates
• Wide format support - max 21: 9

Supported VIDEO resolutions:

• 4096x2160 - Ultra HD, UHD, 4K, 2160p
• 2560x1600 - WQXGA, QHD +, 1600p
• 2560x1440 - QHD, 1440p
• 2048 × 1152 - 2K
• 2560x1080 - Full HD +, WFHD
• 1920x1080 - Full HD, FHD, 1080p, 1080i
• 1280x720 - HD, 720p
