Set of LED daytime running lights and indicators 2x 20 SMD 5730

• Set with PY21W / BAu15S holders
• CAN BUS - no bulb burnt error

The AUTOMATE module is included in the set for free!

• The daytime running lights turn on automatically when the key is turned in the ignition
• The daytime running lights turn off when the dipped headlights are turned on

The turn signal mode works independently of the DRL mode.

ATTENTION: we recommend buying a set of 2-in-1 lights with an automatic machine and W5W and C5W bulbs at a promotional price. The set is visible above, above the description of this offer.

• W5W bulbs are most often used in place of parking bulbs at the front of the car
• C5W 36 mm bulbs are the most commonly used bulb to illuminate license plates

More information on the specifications of W5W and C5W bulbs can be found in the descriptions of the offers of these bulbs

Our dual function bulbs are mounted in place of the standard turn signal bulbs.

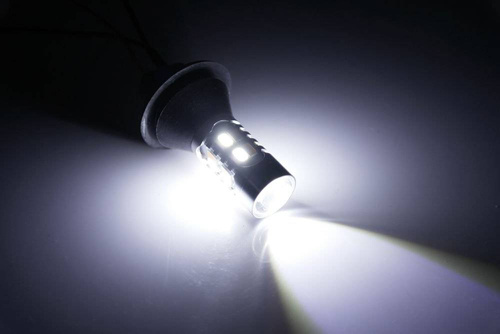

• The bulbs shine with a cold white color of light when driving without the turn signals on.

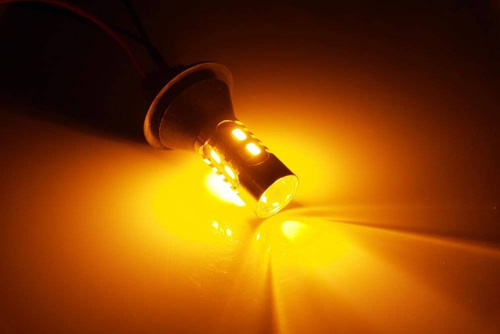

• The bulbs flash orange when the turn signal is activated.

NOTE: the offered 2in1 set has tips that match the socket marked PY21W

95% of cars have orange "PY21W" bulbs in the place of direction indicators - the bulb socket has two asymmetric pins in relation to the axis of the bulb.

In other offers in our store there are 2-in-1 sets with tips:

• P21W - bulbs with pins symmetrical to the bulb axis are marked with this symbol.
• W21W - the symbol means a sliding bulb made entirely of glass - the "big brother" of the W5W position bulb.

If you do not know what bulbs your car is equipped with , write to us! Prepare some information about the car, such as make, model, year of manufacture and engine type and capacity. We will try to choose the right set for your car!

Technical Specifications:

• Number of LEDs in one bulb: 20
• Diode type: 5730 SMD
• Light color: cold white / orange
• Light output: 271lm / 271lm
• Input voltage: 12V
• Resistor: 50W 6ΩJ
• CANBUS: Yes

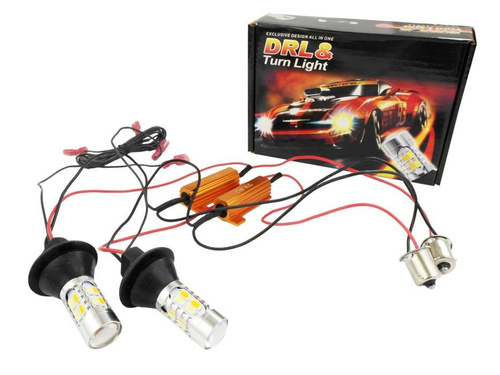

The set includes:

• Two bulbs compatible with the PY21W socket
• Two resistors leveling the error of a burnt bulb
• MACHINE - relay with a harness (the connection method is shown in the picture below)
• A bundle of wires
• Perfect packaging for a gift

Set connection instructions:

• Automatic (relay):

PIN No. 30 should be connected to the plus (+) of the ignition

PIN No. 85 should be connected to ground (-)

PIN No. 86 should be connected to the plus (+) of parking lots

PIN No. 87 is not connected - it is best to insulate

PIN #87a must be connected to the plus (+) of the daytime running lights

• 2-in-1 bulbs:

Offered bulbs 2in1 belongs put in the socket like a standard light bulb , a connect the additional cable to PIN No. 87a at the machine (relay)

Only here! The actual light intensity of the bulb measured on a professional lighting meter. Results are in lumens.

Many sellers of LED lighting give unrealistic light intensity values for similar bulbs. Please be very careful about undocumented, often fictitious data in the specification of light bulbs!

The measurement was carried out on 2in1 20 SMD 5730 LED bulb (from this offer) and standard Py21W indicator bulb.

The value of the light intensity of the 2in1 LED bulb 2 x 20 SMD 5730 characterized low power consumption and bifunctionality is similar to the amount of light coming from a regular Py21W bulb . Despite this, thanks to the use of many LED diodes with a large surface area and white, cold color of light, there is optically more light. The purchase and installation of the 2in1 LED 2x 20 SMD 5730 set will contribute to:

• Lower fuel consumption
• Modern, aesthetic appearance car lighting thanks to LED bulbs that act as daytime running lights
• Introducing the effect of instant switching on and off of LED turn signals
• No more forgetting to turn on your lights when you start your car!
