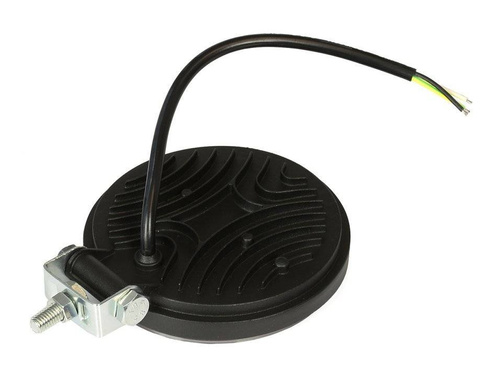

Round work lamp 126W | 42 CREE ™ 3W LEDs | 6300 LM | DUAL COLOR - white and orange light

The lamp emits light of the COMBO type

42 LEDs emit white light, of which:

• 18 LEDs have far-reaching light
• 24 LEDs emit diffused light

1 contour, very strong COB LED diode emits orange light

Technical Specifications:

• Model: Work lamp 126W, WL10-45
• Beam power: 6300 lm
• LED type: CREE ™ 3W
• Supply voltage: 9V - 30V
• CE certificate
• Weather resistance: IP65 - full waterproof
• Shockproof, dustproof, hermetic housing
• Material: aluminum

Application:

• working lighting for agricultural and construction machines
• OFF ROAD lighting in an off-road vehicle, quad bike
• lighting on boats / yachts
• additional lighting in trucks and buses

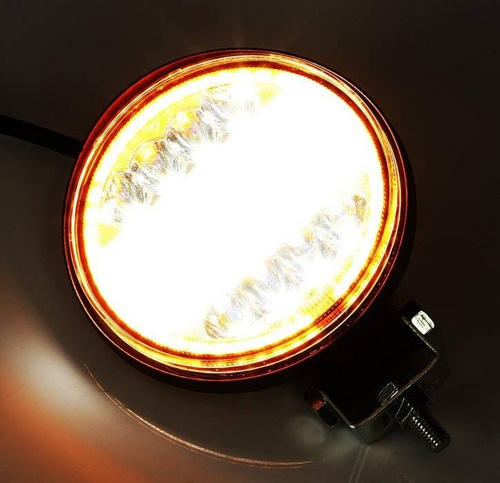

The lamp has 3 lighting modes:

• Classic mode - white light only
• Mixed mode - white and orange light
• Signaling / Directional Mode - Orange light only

White and orange light can switch separately because they are powered separately. 3 wires are led out of the lamp:

• White - power (+) of white LEDs
• Yellow - power supply (+) of the orange LEDs
• Black - 0 (mass)

The kit includes:

• LED work lamp 126W WL10-45
• A set of metal fasteners with a key for self-assembly
• Packaging of work lamps
