Rearview mirror with built-in 4.3" TFT LCD monitor

• possibility of connecting two transmitters via RCA (Cinch) - e.g. reversing camera, DVD player, etc.
• the image on the mirror turns on automatically when you engage reverse gear

The device looks like an aesthetic, traditional rear-view mirror and has a smooth reflective coating.

The mirror housing is made of durable plastic.

• Fits any image transmitter with RCA (Cinch) input
• The monitor works with intuitive guide lines emitted by the reversing cameras

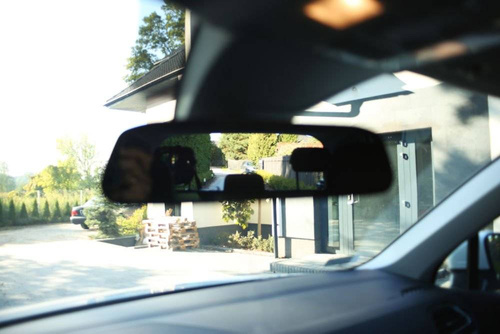

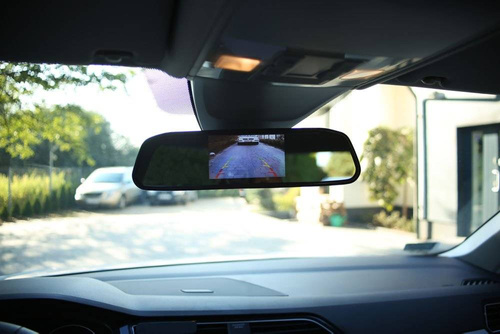

Note: the above photos were taken by us and show the actual operation of the mirror with a monitor.

• The advantage of the TFT matrix is ​​very good visibility of objects on the screen even in very bright sunlight.

• When there is no signal from the reversing camera , the outline of the built-in screen is not visible on the mirror

Specification:

• Diagonal: 4.3"
• Effective number of pixels: 640x480
• Aspect ratio: 16:9
• Operating temperature: -20°C ~ 60°C
• Number of VIDEO inputs: two
• VIDEO input: RCA (Cinch)
• Input signal: Composite video
• Supported video format: PAL/ NTSC
• Power supply: 12V

Mirror dimensions:

• Mirror width at its widest point: 280 mm
• Mirror width at its narrowest point: 250 mm
• Mirror height: 75 mm
• Spacing of mounting brackets: 135 mm
• Recommended height of a standard car mirror on which this mirror with monitor can be installed: from 50 mm to 78 mm

Installing the mirror involves mounting it on the existing mirror using solid handles. The entire operation takes only a few moments and is completely reversible.

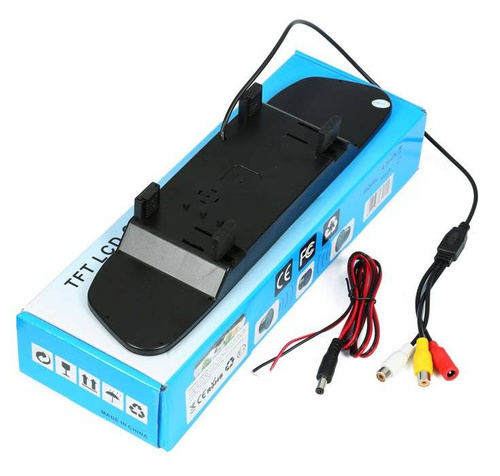

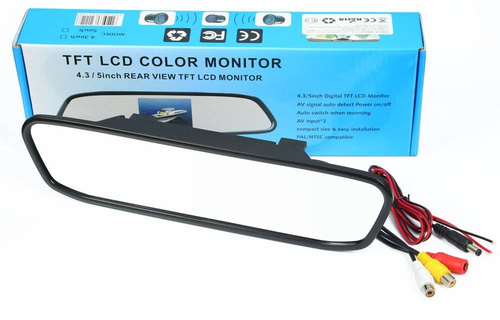

The set includes:

• Mirror with a built-in 4.3" TFT LCD screen with 2 RCA outputs
• Power cord
• Mirror connection instructions
• Box

The monitor's power supply is connected using the included cable to any voltage source from the car installation. It is recommended to connect the plus "after ignition", because the monitor consumes little current in standby mode. There are two female RCA (cinch) sockets next to the monitor to which we connect the VIDEO signal.
