Splitter for El Wire Ambient Light optical fibers

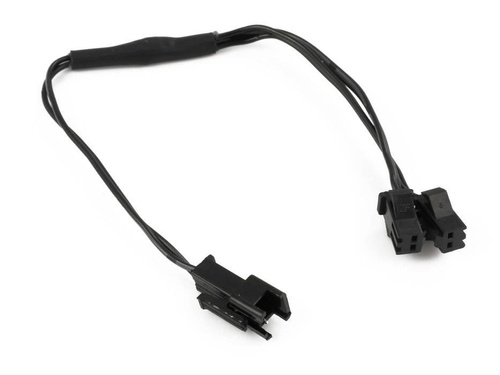

Splitter for two EL Wire fibers

With the use of a splitter, it is possible to supply several optical fibers with one EL Wire converter. Two sections of the optical fiber with a length of 1 to 5 meters can be connected to the splitter. The sections connected to the manifold need not be of equal length.

The splitter is used when the power supply of several sections of optical fibers can come from one place, e.g. from the left and right side of the armrest frame or the central console, etc.

In our store you can buy EL Wire splitters:

• For 2 optical fibers
• For 3 optical fibers
• For 4 optical fibers
• For 5 optical fibers

Ambient Light fibers using electroluminescent light technology are an excellent product for lighting decoration of the car interior. The light is non-dazzling, linear and uniform along the entire length of the optical fiber.

The Ambient Light optical fiber, thanks to its small dimensions and remarkable flexibility, can be installed in any gaps in the dashboard or in the car door. The contour emitting a very light, soft light will give the car interior modernity and aesthetics, while consuming a negligible amount of electricity.

Technical Specifications:

• Fits Fiber Length: 1-5 meters. The optical fiber can be cut anywhere.
• Power consumption: 0.3W / 1M
• Input voltage: 12V
• Optical fiber operating voltage: 80-110V AC
• RoHS Compliant

Due to the multitude of variants of fiber optic configuration (8 colors, 5 lengths), we recommend adding a set of an EL Wire splitter to the basket, and then selecting the selected number of optical fibers to the set. Fiber optics in all colors and lengths can be found in our other offers.
