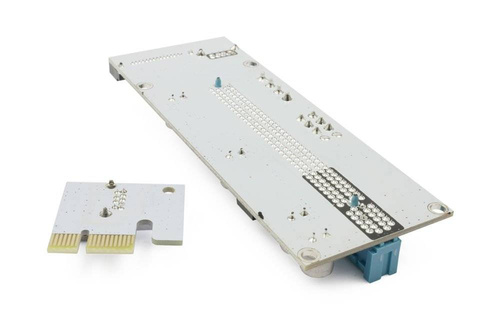

Riser 008S

Application of 1.5 mm PCI-E Connector

• The use of a 1.5 mm thick PCI-E connector provides maximum stability in the motherboard socket. Gold-plated contacts combined with a reinforced design ensure the durability of the connector and maintain consistent electrical connection at the highest level throughout the riser's lifespan.

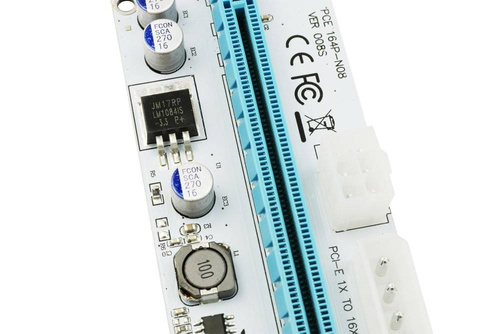

• Based on Japanese solutions, four high-quality capacitors from the renowned FCON brand are soldered using the through-hole (THT) method, rather than surface mounting. This gives the risers excellent mechanical and electrical durability.

Product information:

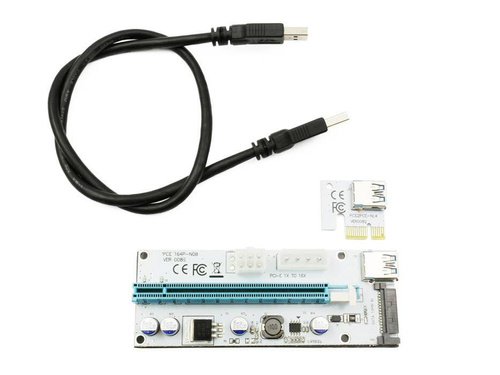

• PCI-E connectors are electrically linked with a USB 3.0 cable, compatible with all PCI-E slots: 1x, 4x, 8x, 16x.

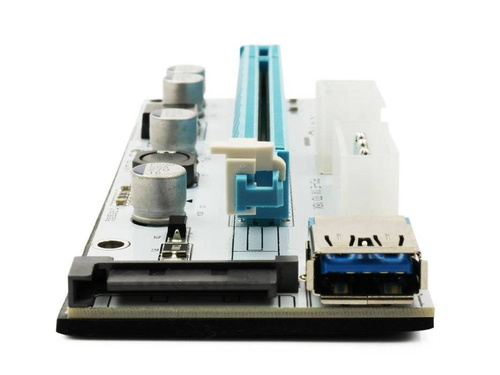

• The built-in six-pin power socket with a SATA adapter allows you to connect additional power to the card, reducing the load on the motherboard.

Dimensions:

• Riser: 122 mm x 45 mm x 11 mm
• USB cable length: 60 cm

• A thick, solid USB cable with a diameter of 6.5 mm, working in the 3.0 standard, ensures maximum data transmission when connecting components.
• Thanks to the angled (90°) connector, cables can be arranged to avoid stress on the motherboard and to provide proper airflow around the components.

• The offered risers are equipped with self-adhesive foam, which provides excellent insulation for through-hole solder joints and traces. This improves hardware safety during both assembly and when operating the mining rig.

From our experience, the Riser 008S is a proven model that can successfully be used as a replacement part or as a permanent component in any mining rig. During our search for a reliable riser, we tested many models, but unfortunately each had drawbacks, such as unstable ports, breakage (surface-mount soldering), GPU crashes, and poor airflow. The 008S is the first model that did not break during repeated GPU swaps and did not require frequent rig reboots. We recommend it!
