XENON HID SLIM AC 55W CAN-BUS kit with filaments

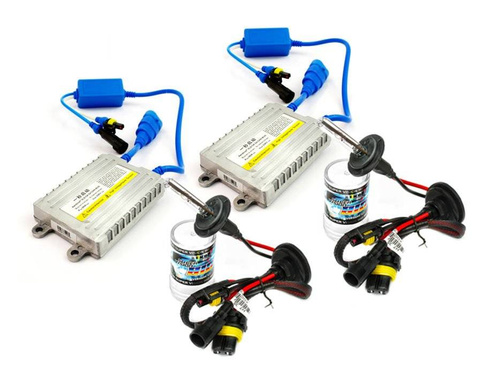

The kit includes:

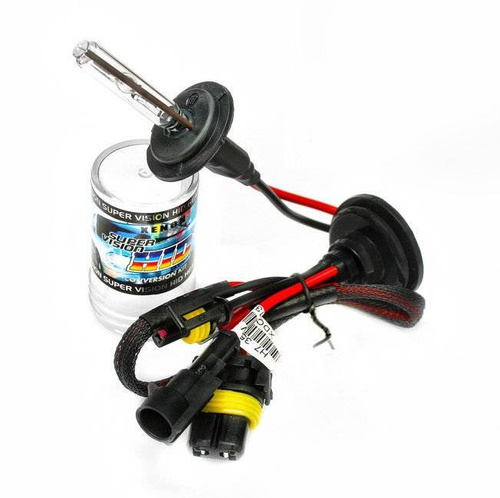

• Two filaments of selected mounting and color:

Available mountings: H7 | H1 | H3 | H11 | HB3 9005 | HB4 9006

Available colors: 4300k | 5000k (no this color with H7 mount) | 6000k | 8000k | 10000k | 12000k

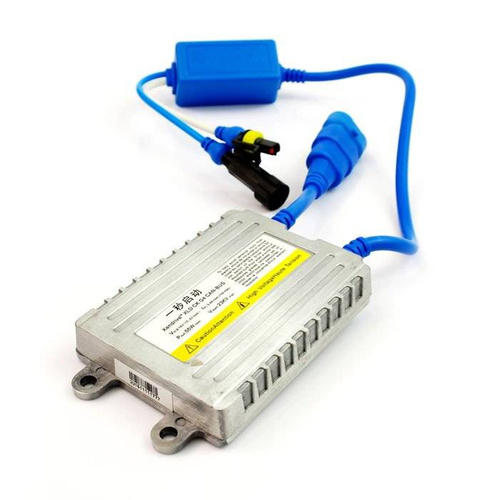

• Two ultra-powerful 55W AC CAN-BUS converters

Unlike the XENON HID kits operating under ordinary DC converters, the kit offered on the SLIM 55W AC converter has a different power supply and voltage control characteristics using the PWM (Pulse-Width Modulation) signal, which translates into:

• Longer filament life. The HID filament working in tandem with the SLIM 55W AC inverter loses its light properties much slower.
• Better job characteristics. To put it simply: the HID filament, when connected to the inverter, works like a strobe. Depending on the length and frequency of the signal coming from the converter, flickering light on DC converters may be noticeable from the first moments after the installation of the HID kit, and with time it becomes more and more visible and, of course, tiring for the eyes. In the case of SLIM 55W AC converters, the signal is selected appropriately for the given bulb and the flicker problem does not exist.
• A more natural color of light. The light coming from the light source based on the AC converter is natural, the light color is warmer. Riding on this converter is much more comfortable than on cheaper substitutes.
• More light. The SLIM 55W AC inverter was created for drivers who appreciate driving comfort. 55W AC converters generate a stronger beam of light while maintaining the same power consumption as 55W DC converters.

Moreover, the converter is equipped with:

• CAN-BUS system . In most car models until 2015 they do not cause errors on the on-board computer. In order to make sure that the converter will work without any problems in your car, please contact the hotline or e-mail.
• CB and FM radio noise filters.

Technical Specifications:

• Converter model: SLIM AC 55W
• Converter dimensions: Width - 62 mm | Height - 16 mm | Length - 83 mm
• Type of current conversion: AC - alternating current
• Voltage: 8-15V ( 12V ) | Output voltage per filament: 85V
• Power consumption: 55W
• Beam power: 3200 lm
• Anti-interference filters (FM, CB radio): Yes
• Cabling: Cable length: 500 mm
• Plug type: Splashproof | for every Xenon HID filament
• Kit warranty period: 12 months

Available mounts:

• H1
• H3
• H7
• H11 (identical to H8 and H9)
• HB3 9005
• HB4 9006

Available colors:

4300k

5000k - no H7 bulbs

6000k

8000k

10000k

12000k

Why is it worth replacing old halogen bulbs with xenon bulbs?

Safety is dramatically improved - HID installation increases the light intensity 3 times (approx. 3000 lumens) compared to a halogen bulb (approx. 1200 lumens). Provides greater visibility on the road, a larger field of view.

Less eye strain - The light that is emitted by a xenon bulb resembles daylight (4300 - 8000K), to which the eyesight is most adapted. Thanks to HID solutions, the driver is more observant, can concentrate his eyes much faster and has better control of the traffic situation, and reduces eye strain. Ordinary halogen bulbs emit light with a yellow tint (3200K), they require more intensive eye work. For the driver driving in the opposite direction, the light of the HID lamps is not bothersome, it does not dazzle.

Eye-catching appearance - the use of modern HID technology increases the efficiency of the vehicle. HID light was until recently used in vehicle models from the higher price segment. A car with bright, white xenon light is associated with exclusivity and greater attractiveness of the vehicle.

Energy saving - The HID circuit takes 35W. A halogen bulb needs 60% more power. 2 lamps, saving twice as much.

Economy of light bulbs - The lifetime of a xenon bulb is estimated at an average of 2000-2500 hours. Ordinary halogen bulb 10x shorter. The xenon bulb does not have a delicate tungsten filament, which makes it much more resistant to all kinds of shocks.

Saving headlights - A xenon bulb loses less heat energy and does not heat the headlamp as much as a halogen bulb. It also emits less UV rays. As a result, the reflector elements do not become discolored and deformed.

Easy to assemble - HID installation assembly consists in suspending converters, replacing light bulbs and shifting electric wires. Everything is easy to do and reversible - you can disconnect the xenon at any time and put the old bulbs back in their place. If you sell your car, you can transfer the HID installation to a new one. You may only need to replace the bulbs with a model with a different socket.

Plug and Play assembly - extremely simple assembly.

Longer service life - bulbs do not lose their brightness with use to the same extent as standard halogen lamps.

Protection against damage - converters are resistant to changes in humidity, temperature and voltage fluctuations.

Modernity - sets are made in accordance with the features of the 3rd generation of HID systems. Converters were integrated with igniters. The combination of the above-mentioned elements into one system allowed for equipping the converter with a number of control mechanisms, protecting the HID system against damage and increasing the life of the bulbs. In addition, the number of components and cables necessary for assembly has been minimized.

Maintaining the angle of light - precisely set focal length means that replacing a halogen bulb with a xenon bulb does not cause significant deformation of the light beam, especially in the case of lens lamps, and it is not necessary to re-adjust the headlights.
