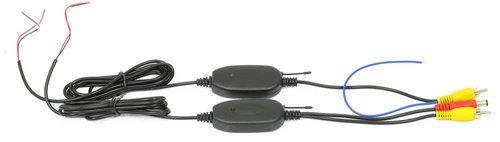

Wireless Camera Module Reversing | 12V

• complete set - transmitter with receiver

Specification:

• transmission / work frequency: 2.4Ghz
• Voltage: 8-15V
• picture format: PAL / NTSC
• range: up to 50m (in open space), approx. 10m (through tin surface)
• modulation mode: FM
• Working temperature: -40 ° C - + 60 ° C
• maximum humidity: 85% RH
• reception sensitivity: -90 ± 2dbm
• Current consumption: transmitter: 100mA; Receiver: 100mA
• Type of image transmission plugs: RCA (CINCH)

wireless transmitter and receiver for reversing cameras

Transmitter allows you to send a video signal on a short distance from the reversing camera to any display equipped with RCA input / AV Cinch. RCA connectors guarantee compatibility with almost all cameras and monitors available on the market.

Devices use the frequency 2.4 GHz , so that they will not receive interference during operation.

Using the transmitter, we do not interfere with the electric electrical installation to drag the signal cable throughout the entire length of the car. An additional advantage of the transmitter is a power connector for the camera led directly from the transmitter that will power the camera without additional installations. The transmitter range is a maximum of 100 meters, wherein the range can be shorter at a high density of buildings or the presence of devices working on the same frequency, as well as generating electromechanical interference.

The set includes:

• video signal receiver
• video signal transmitter
• Picture assembly instructions
