A set of LED bulbs H9 H11 X3 ZES 50W 12000 lm
- LED type ZES
- One bulb Power: 25W
- The luminous intensity of 6000 lumens / bulb
- Light color: 3000k / 6500k / 8000k
Set of passing lights or road LED H11 X3 | LED Type Zes
Due to the high efficiency of LEDs LED ZES, we recommend using light bulbs as low beam and / or road lights in lamps:
- reflectors
Technical Specification:
- model: low beating light H11 50W ZES 6000LM
- Number of LED bulbs: 2
- Number of LEDs: 6 / bulb
- LED technology: zes
- Total power consumption: 50W
- zad resistance: ip67
- supply voltage: 12v - 24v
- light color: snow-white 6500k, yellow 3000k, cold white / blue 8000k
- approval: e8 10r
- replacement for bulbs: H11, H11R, H11M
Bulb dimensions:
- height from fixing to the top of the bulb: 43 mm
- total height: 85 mm
- peak diameter of the bulb: 14 mm
- radiator diameter: 35 mm
Light bulbs have built-in CAN-BUS filters, so that they should not cause errors on the on-board computer. It happens, however, that in cars with an extensive electronics, despite the built-in filters, the error appears after installing LED bulbs. For the correct operation of light bulbs, the installation of additional, external LED filters with holders for H11 bulbs will be required. We recommend buying a set with LED filters.
In the set there are filters that after applying on the glass surrounding the diodes will change the color of light from LED bulbs.
Effectiveness of LED bulbs H11 X3 Zes
LED bulbs H11 X3 ZES emit over 130% more light compared to ordinary bulbs. Comparing Effectiveness of H11 bulbs used in car headlights We used of the same lens settings , 14V voltage and The same reflector lamp (Fiat Punto II, left side, without lens).
A beam of light from LED X3 ZIS bulbs is characterized by almost exemplary light cutting, high luminance and a strong, white color light even in the reflective lamp.
Due to the very high efficiency of the light bulb set, you can use as a replacement for passing lights or / and roads. offered LED bulbs set H11 ZES significantly improves the visibility of objects located in front of the car, and the visibility of the car by other road users.
Comparing Effectiveness of H11 bulbs used in car headlights We used of the same lens settings , upward voltage 14V, and one reflector lamp (Fiat Punto II, left side, without lens).
A beam of light from LED X3 ZIS bulbs is characterized by visible cut-off, large luminance and a strong, white color of light.

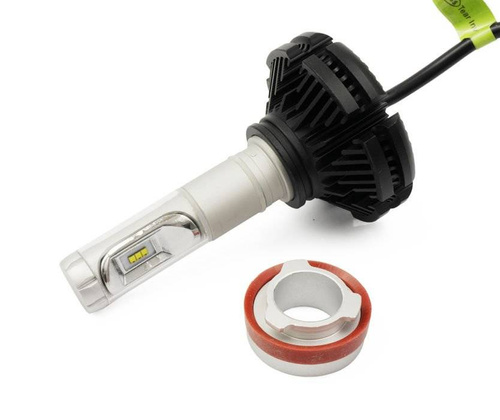

H11 LED ZES bulbs are equipped with a ball mechanism that blocks the bulb collar in a given setting, as a result you can fully adjust the angle of incidence of light coming from a reflector diodes. In addition, a removable collar facilitates assembly bulbs in lamps to which access is difficult.

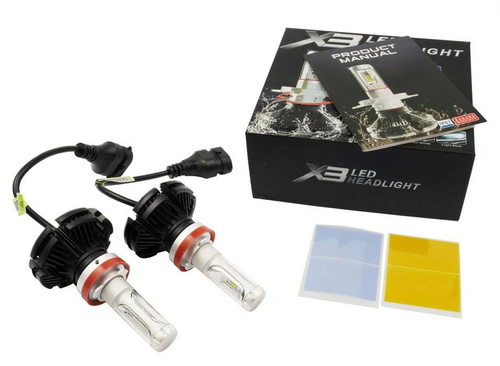

The set includes:
- two H11 LED ZES 6000LM bulbs
- Manual - Installation and operating instructions

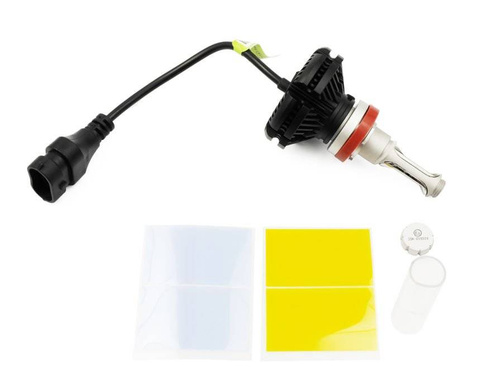

- 4 Filters to change the color of light
- packaging (ideal for gift)
- Warranty: 12 months
- receipt or VAT invoice (on request)
abbreviated installation instructions for bulb H11 x3:
Step 1-2 : Determine the tin that secures the bulb in the H11 slot and remove the old bulb.
Step 3 : Remove the adapter from the H11 LED bulb. Put it in place of the bulb and then fasten the mounting tin.
Step 4 : Slide the junger in a fastened adapter. We connect the H11 ankle bulb. The bulb power cord together with the H11 cube is best placed on the interior of the lamp, between the housing and the reflector. The bulb can be rotated by 360 ° to find a suitable light incidence angle to the illuminated area before the vehicle.
step 5 : We put on the casing to protect the inside of the lamp from moisture.
Despite a small amount of space in the tested lamp (Fiat Punto II), after installing H11 LED, it was possible to clamp the cover and the lamp interior seal. Before buying, we recommend verifying whether a space between the bulb flange and the cover is available in the target lamp. In our lamp, the distance between the bulb and the edge of the housing to which the cover is inserted 32 mm.
