A set of LED bulbs H1 50W X3 SPM 12000 lm
- LED type ZES
- One bulb Power: 25W
- The luminous intensity of 6000 lumens / bulb
- Light color: 3000k / 6500k / 8000k
Set of passing lights or road LED H1 X3 | LED Diodes Type Zes
130% more light than from ordinary bulbs!
Due to the high efficiency of LEDs LED ZES, we recommend using light bulbs as low beam and / or road lights in lamps:
- reflectors
Technical Specification:
- Model: LED passing light H1 50W ZES 12000LM
- Number of LED bulbs: 2

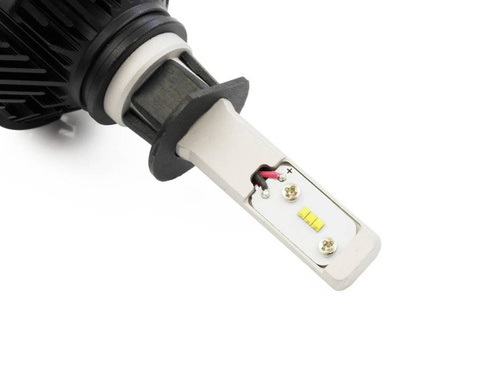

- Number of LEDs: 6 / bulb
- LED technology: zes
- Total power consumption: 50W
- zad resistance: ip67
- supply voltage: 12v - 24v
- light color: snow-white 6500k, yellow 3000k, cold white / blue 8000k
- approval: e8 10r
- replacement for bulbs: H1
Bulb dimensions:
- height from fixing to the top of the bulb: 43 mm
- total height: 85 mm
- peak diameter of the bulb: 14 mm

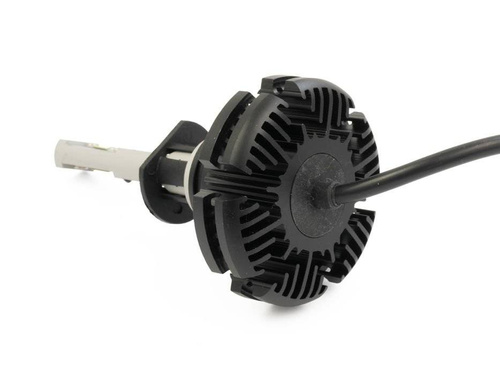

- radiator diameter: 35 mm
Light bulbs have built-in CAN-BUS filters, so that they should not cause errors on the on-board computer. It happens, however, that in cars with an extensive electronics, despite the built-in filters, the error appears after installing LED bulbs. For the correct operation of the bulbs, the installation of additional, external LED filters with holders for bulbs H1 will be required. We recommend buying a set with LED filters.
Effectiveness of LED bulbs H1 X3 Zes

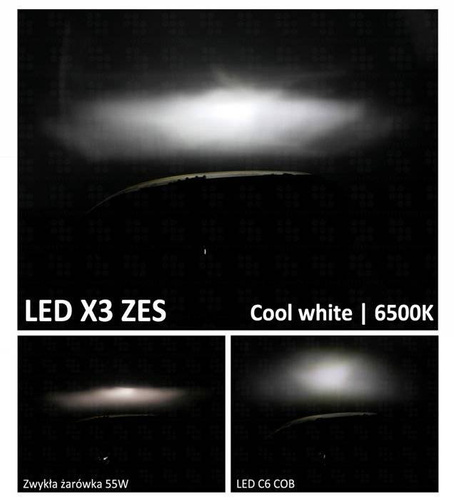

LED bulbs H1 X3 ZES emit over 130% more light compared to ordinary bulbs. Comparing Effectiveness of H1 bulbs used in automotive headlights We used of the same lens settings , 14V voltage and The same reflector lamp (Fiat Punto II, left side, without lens).
A beam of light from LED X3 ZIS bulbs is characterized by almost exemplary light cutting, high luminance and a strong, white color light even in the reflective lamp.
Due to the very high efficiency, the light bulb set can be used as a replacement for passing lights or / and road. The offered LED H1 ZES bulb set significantly improves the visibility of objects located in front of the car, and the visibility of the car by other road users.
Comparing Effectiveness of H1 bulbs used in car headlights We used of the same lens settings , voltage 14V, and one reflector lamp (Fiat Punto II, left side, without lens).
A beam of light from LED X3 ZIS bulbs is characterized by visible cut-off, large luminance and a strong, white color of light.

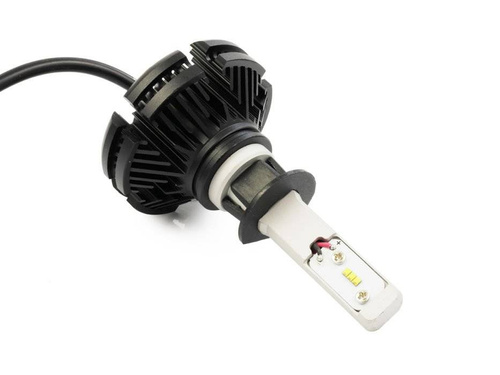

H1 LED ZES bulbs are equipped with a ball mechanism that blocks the bulb flange in a given setting, as a result, which can be fully adjust the angle of incidence of light coming from a reflector diodes. In addition, a removable collar facilitates assembly bulbs in lamps to which access is difficult.

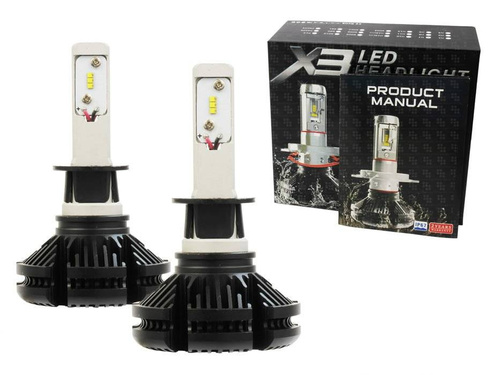

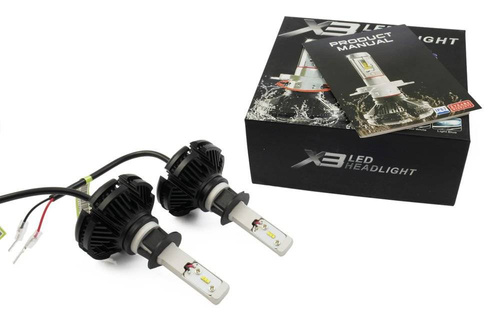

The set includes:
- two H1 LED ZES 6000LM bulbs
- Manual - Installation and operating instructions
- packaging (ideal for gift)
- Warranty: 12 months
- receipt or VAT invoice (on request)
abbreviated installation instructions for bulb H1 x3:
step 1-2 : Determine a tin that secures the bulb in the H1 socket and remove the old bulb.

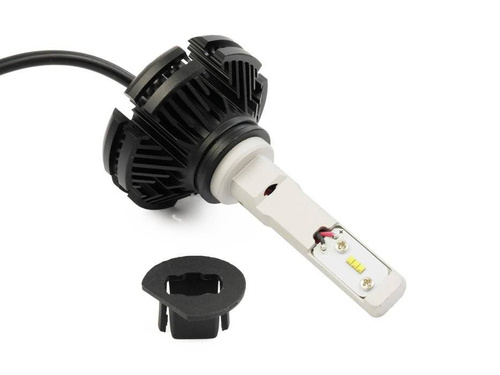

Step 3 : Remove the adapter from the LED H1 bulb. Put it in place of the bulb and then fasten the mounting tin.
Step 4 : Slide the junger in a fastened adapter. We connect the H1 ankle bulb. The bulb power cord together with the H1 cube is best placed on the interior of the lamp, between the housing and the reflector. The bulb can be rotated by 360 ° to find a suitable light incidence angle to the illuminated area before the vehicle.
step 5 : We put on the casing to protect the inside of the lamp from moisture.
Despite a small amount of space in the tested lamp (Fiat Punto II), after installing the H1 LED, it was possible to clamp the cover and at the same time sealing the inside of the lamp. Before buying, we recommend verifying whether a space between the bulb flange and the cover is available in the target lamp. In our lamp, the distance between the bulb and the edge of the housing to which the cover is inserted 32 mm.
