set of low-driving lights or road LED H7 CSP | CSP Diode - Chip Scale Package | 8000 LM

Due to the high efficiency of LED diodes in this set, we recommend it to use as:

• light bulbs passing beams (short)
• Road light bulbs (long)

Technical Specification:

• model: low beating light H7 CSP 50W 8000LM
• Number of LED bulbs: 2
• Number of LEDs: 6 / bulb
• light intensity: 8000 lm
• Total power consumption: 2x 25w
• zad resistance: ip67
• supply voltage: 12v - 24v
• light color: white, slightly blue 6500K
• replacement for bulbs: H7
• certification ce, rohs

Light bulbs have built-in filters CAN-bus , so that they should not cause errors on the on-board computer. It happens, however, that in cars with an extensive electronics, despite the built-in filters, the error appears after installing LED bulbs. For the correct operation of the bulbs, the installation of additional, external LED filters with holders for bulbs H1 will be required. We recommend buying a set with LED filters.

Effectiveness of LED bulbs H7 CSP 8000LM

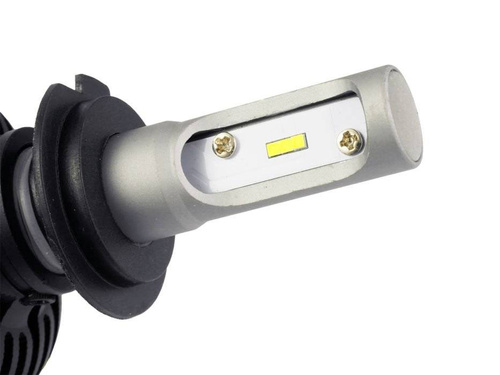

minimized diodes and excellent dimensions of dimensions of LED CSP bulbs provide almost design light distribution even in a muster lamp! suitable focus of light beam is very important because:

• light bulbs do not blind drivers running from opposite the
• 100% power bulb is transferred to the road before the vehicle, not on the roadside, directly in front of the mask or above the road tiled
• there is no need to re-adjust the heat and / or road light bulbs
• We do not have to be afraid of a vehicle review

photo 3. for comparison We present a light pole from other popular LED bulbs using chip-on-board "COB" technology, assumed to the lamp without lens projectors.

Application in light bulbs The COB diode with a large surface makes the light in reflective lamps significantly dispersed. As a result, this large part of the light generated by COB falls above the reference limit of cut-off, and at the point of maximum light intensity, the normal fiber bulb has greater efficiency.

Due to the very high efficiency, the light bulb set can be used as a replacement for passing lights or / and road. The offered LED H1 CSP label set significantly improves the visibility of objects located in front of the car, and the visibility of the car by other road users.

The light intensity is incomparably larger compared to standard, factory-mounted Bulbs H1, and the white color of light gives the lamps a modern look.

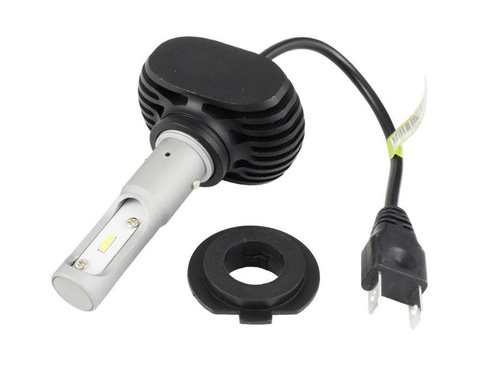

LED H1 CSP bulbs are equipped with collar locking elements in the most preferred light effect. In addition, a removable collar facilitates assembly bulbs in lamps to which access is difficult.

The set includes:

• two H1 LED CSP bulbs, each 4000 lm
• Manual - Installation and operating instructions
• packaging (ideal for gift)

abbreviated installation instructions for LED bulb H1:

step 1-2 : Determine a tin that secures the bulb in the H1 socket and remove the old bulb.

Step 3 : Remove the adapter from the LED H1 bulb. Put it in place of the bulb and then fasten the mounting tin.

Step 4 : Slide the junger in a fastened adapter. We connect the H1 ankle bulb. The bulb power cord together with the H1 cube is best placed in the interior of the lamp, between the housing and the reflector. The bulb can be rotated by 360 ° to find a suitable light incidence angle to the illuminated area before the vehicle.

step 5 : We put on the casing to protect the inside of the lamp from moisture.
