A set of LED bulbs H4 F6 DOB 12000lm
Passing LED H4 F6 DAKI DRIVE LED Driver-on-Board diodes
Over 55% more light than from ordinary bulbs!
Due to the very high efficiency of the light bulb set, you can use as replacement for lights:
- passing
- road
LED DAY technology as main vehicle lighting:
- Extramably long life
- Increased lighting efficiency
- small dimensions of bulbs
day (Driver on board) This is the power supply technology of a direct light module with LED diodes in which the power system and the LED light source are on one plate, without use Additional power supply. About the growing popularity of such a solution speaks mainly increased lifespan and better light efficiency. In addition, the dimensions of the bulb are smaller than other LED bulbs for use in the main car lighting.
main features of LED Technology:
- compact design
- more efficient cooling
- more efficient use of elements responsible for light efficacy
- overvoltage protection
- thermal protection
as much as 56% more light than in standard bulbs!
Technical Specification:
- model: low beating light H4 F6 DOC
- Number of LED bulbs: 2
- Number of LEDs: 4 / bulb
- LED technology: Dob - Driver on Board
- Total power consumption: 50W
- zad resistance: ip67
- power voltage: 12v
- light color: snow-covered 6500k
- certificate: CE, compliance with ROHS
- replacement of bulbs: H4, HS1
Light bulbs have built-in CAN-bus filters , thanks to which they cause errors on the on-board computer.

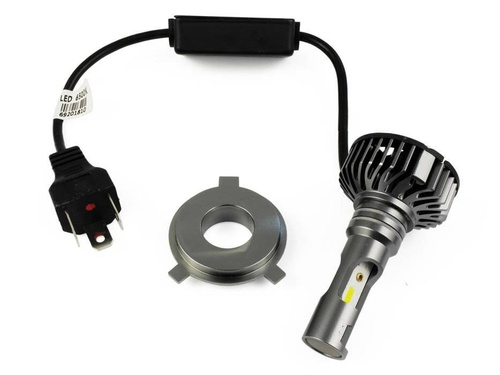

LED bulbs H4 F6 DOC are equipped with a removable collar, CO facilitates assembly bulbs in lamps to which access is difficult. In addition, thanks to the options for turning the adapter by 360 ° with relative to the bulb axis, you can fully adjust the angle of lighting coming from a reflector diode.
Thanks to the small Gabarities, LED H4 F6 LED bulbs are compatible with almost any car lamp.

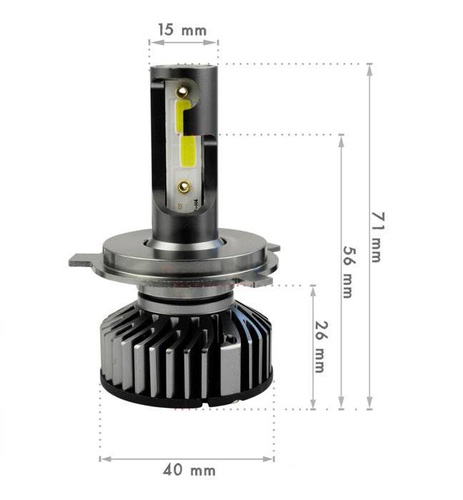

Application of the DOC diode allowed to reduce the height of the total bulb up to 70 mm , and the heat sink itself until to 20 MM . Little bulbs available in the sale can boast of such compact dimensions as H4 F6.
Effectiveness of LED H4 F6 DOC:
LED H4 F6 DABLESS emit over 55% more light compared to ordinary bulbs. Comparing Effectiveness of H4 bulbs used in car headlights We used the same lens settings , 14V voltage and The same reflector lamp (Fiat Punto II, left side, without lens).
A beam of light from LED H4 F6 LED bulbs is characterized by a good cutting of light, high luminance and a strong, white color light even in the reflective lamp.

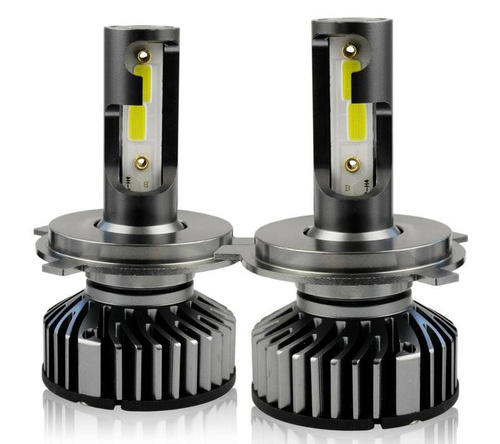

The set includes:
- two LED H4 F6 bulbs with diode
- packaging (ideal for gift)
abbreviated installation instructions H4 LED bulb with detachable adapter / collar:
Step 3 : Remove the adapter from the LED H4 bulb. Put it in place of the bulb and then fasten the mounting tin.
Step 4 : Slide the junger in a fastened adapter. We connect the H4 ankle bulb. The bulb power cord together with the H4 cube is best placed on the interior of the lamp, between the housing and the reflector. The bulb can be rotated by 360 ° to find a suitable light incidence angle to the illuminated area before the vehicle.
step 5 : We put on the casing to protect the inside of the lamp from moisture.
Despite a small amount of space in the tested lamp (Fiat Punto II), after installing the H4 LED, it was possible to clamp the cover and at the same time sealing the interior of the lamp. Before buying, we recommend verifying whether a space between the bulb flange and the cover is available in the target lamp. In our lamp, the distance between the bulb and the edge of the housing to which the cover is inserted 32 mm.
