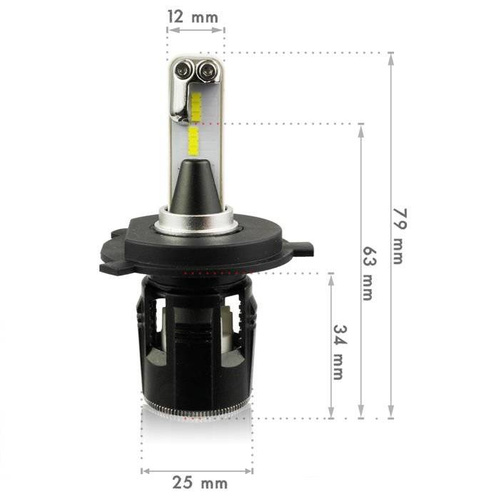

A set of LED bulbs H4 B5 SEOUL CSP 40W 12000 lm
- LED type: SEOUL CSP Y19
- Power: 40W
- The luminous intensity of 6000 lumens / bulb
- Light color ~ 6000K (pure white)
dipped beam and road lights H4 B5 slim | Branded LED CSP Seoul Y19
Due to the high efficiency of LED CSP LEDs, we recommend using light bulbs as low beam and road lights in lamps:
- reflectors
minimized diodes and excellent dimensions of dimensions of LED slim lights ensure almost design layout of light even in a muster lamp! suitable focus of light beam is very important because:
- light bulbs do not blind drivers running from opposite the
- 100% power bulb is transferred to the road before the vehicle, not on the roadside, directly in front of the mask or above the road tiled
- there is no need to re-adjust the heat and / or road light bulbs
- We do not have to be afraid of a vehicle review
Technical Specification:
- model: passing lights and road LED H4 B5 SLIM
- Number of LED bulbs: 2
- Number of LEDs: 12 / bulb
- LED technology: seoul csp y19
- Total power consumption: 40W
- housing material: aluminum
- zad resistance: ip67
- supply voltage: 12v - 24v
- light color: snow-covered 6500k
- certificate: CE, compliance with ROHS
- replacement of bulbs: H4, HS1
- luminance: 12000 lm
Light bulbs have built-in CAN-bus filters , thanks to which they cause errors on the on-board computer.
LED bulbs H4 B5 Slim are equipped with a mechanism that blocks the bulb flange in two settings (diode position: up / down or left / right), as a result of which You can to adjust the aeration angle emitted by the Diode for the Reflector. In addition, a removable collar facilitates assembly bulbs in lamps to which access is difficult.
The set includes:
- two LED bulbs H4 B5 Slim with CSP Seoul Y19 LEDs
- packaging (ideal for gift)
Due to the very high efficiency of the light bulb set, you can use as a replacement for passing or / and road lights. The offered LED H4 B5 slim bulbs set significantly improves the visibility of objects located in front of the car, and the visibility of the car by other road users.
use of high-quality aluminum in a bulb housing makes the heat generated during the operation of the diodes distributed throughout the light bulb, and the turboventilator blows warm air to the lamp housing, improving Thus Performance Seoul CSP and Leisure Bulbs (up to 30,000 hours of continuous operation)
abbreviated installation instructions H4 LED bulb:
step 1-2 : Determine a tin that secures the bulb in the H4 slot and remove the old bulb.
Step 3 : Remove the adapter from the LED H4 bulb. Put it in place of the bulb and then fasten the mounting tin.
Step 4 : Slide the bulb in the adapter previously fastened. We connect the H4 ankle bulb. The bulb power cord together with the H4 cube is best placed on the interior of the lamp, between the housing and the reflector. The bulb can be rotated by 360 ° to find a suitable light incidence angle to the illuminated area before the vehicle.
step 5 : We put on the casing to protect the inside of the lamp from moisture.
Despite a small amount of space in the tested lamp (Fiat Punto II), after installing the H4 LED, it was possible to clamp the cover and at the same time sealing the interior of the lamp. Before buying, we recommend verifying whether a space between the bulb flange and the cover is available in the target lamp. In our lamp, the distance between the bulb and the edge of the housing to which the cover is inserted 32 mm.
