LED bulbs H1 S2 16000 LM 72W 12V-24V CAN Bus

LED bulbs set for lighting / road lights

Due to the high efficiency of LED diodes in this set, we recommend it to use as:

• light bulbs passing beams (short)
• Road light bulbs (long)

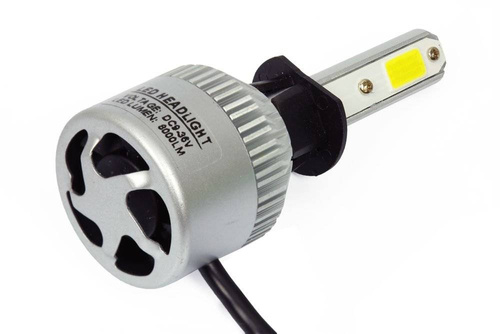

Active cooling consists in reducing the air temperature height with fan . The advantage of this solution is much higher cooling efficiency than in the case of passive cooling (without a fan).

bulb housing S2 LED S2 is made of high quality, heavily thermal aluminum ( aviation aluminum 6063 )

Technical Specification:

• model: set of LED bulbs H1 S2 72W COB 16000LM
• Number of LED bulbs: 2
• Number of LEDs: 2 / Bulb
• light intensity: 16000 lm
• Total power consumption: 2x 36W
• Zad resistance: IP67
• supply voltage: 12V - 24V
• light color: snow-covered 6500k
• replacement for bulbs: H1
• Certification CE, ROHS

Light bulbs have built-in CAN-BUS filters, so that they will not cause errors on the on-board computer.

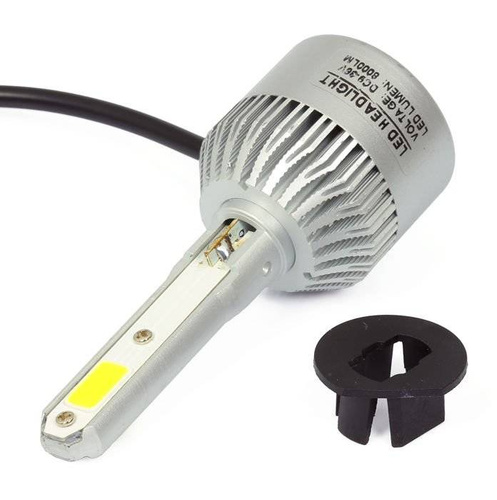

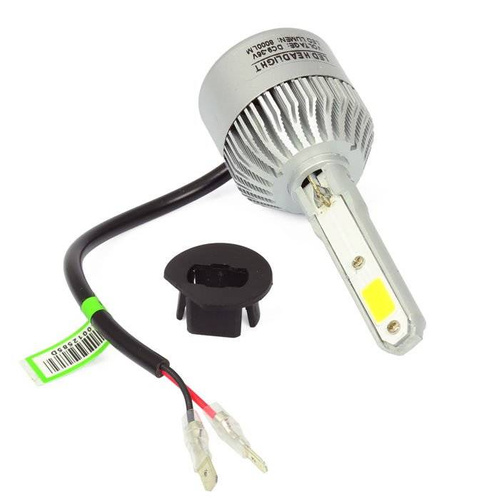

LED bulbs H1 S2 are equipped with a removable bulb flange, which significantly facilitates assembly bulbs in lamps to whose access is difficult.

The set includes:

• two LED bulbs H1 S2
• illustrated assembly instructions
• packaging (ideal for gift)

abbreviated installation instructions LED bulbs:

Step 1-2 : Determine the tin that secures the bulb in the slot and remove the old bulb.

Step 3 : Remove the adapter from the LED bulb. Put it in place of the bulb and then fasten the mounting tin.

Step 4 : Slide the junger in a fastened adapter. We connect an ankle bulb. Bulb power cord together with the dice best placed on the interior of the lamp, between the housing and the reflector. The bulb can be rotated by 360 ° to find a suitable light incidence angle to the illuminated area before the vehicle.

step 5 : We put on the casing to protect the inside of the lamp from moisture.

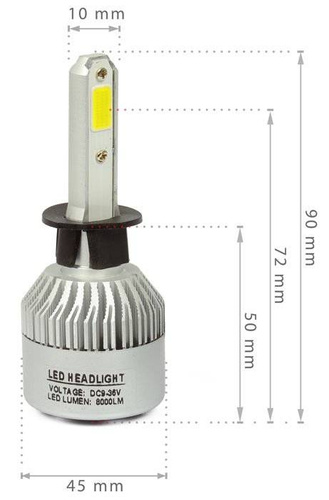

Despite a small amount of space in the tested lamp (Fiat Punto II), after the LED mounting it was possible to clamp the shield and at the same time sealing the interior of the lamp. Before buying, we recommend verifying whether a space between the bulb flange and the cover is available in the target lamp. In our lamp, the distance between the bulb and the edge of the housing on which the cover is inserted. 32 mm. If this distance in your car is too small - we recommend the purchase of the lamp cover (offer number 8148576269).
