Set S2 H4 LED COB 36W 16000 lm
- Type LED Chip-On-Board
- Power: 72W
- The intensity of light: 16000 lm
- Light color ~ 6000K (pure white)
LED bulbs H4 S2 16000 LM 72W 12V-24V CAN Bus
LED bulbs set for lighting / road lights
Due to the high efficiency of LED diodes in this set, we recommend it to use as:
- light bulbs passing beams (short)
- Road light bulbs (long)
Active cooling consists in reducing the air temperature height with fan . The advantage of this solution is much higher cooling efficiency than in the case of passive cooling (without a fan).

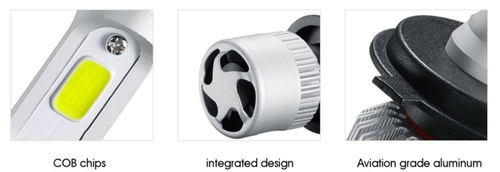

bulb housing S2 LED S2 is made of high quality, heavily thermal aluminum ( aviation aluminum 6063 )
Technical Specification:
- model: set LED bulbs H4 S2 72W COB 16000LM
- Number of LED bulbs: 2
- Number of LEDs: 2 / Bulb
- light intensity: 16000 lm
- Total power consumption: 2x 36W
- Zad resistance: IP67
- supply voltage: 12V - 24V
- light color: snow-covered 6500k
- replacement of bulbs: H4, HS1
- Certification CE, ROHS
Light bulbs have built-in CAN-BUS filters, so that they will not cause errors on the on-board computer.
LED bulbs H4 S2 are equipped with a removable bulb flange, which significantly facilitates assembly bulbs in lamps to whose access is difficult.

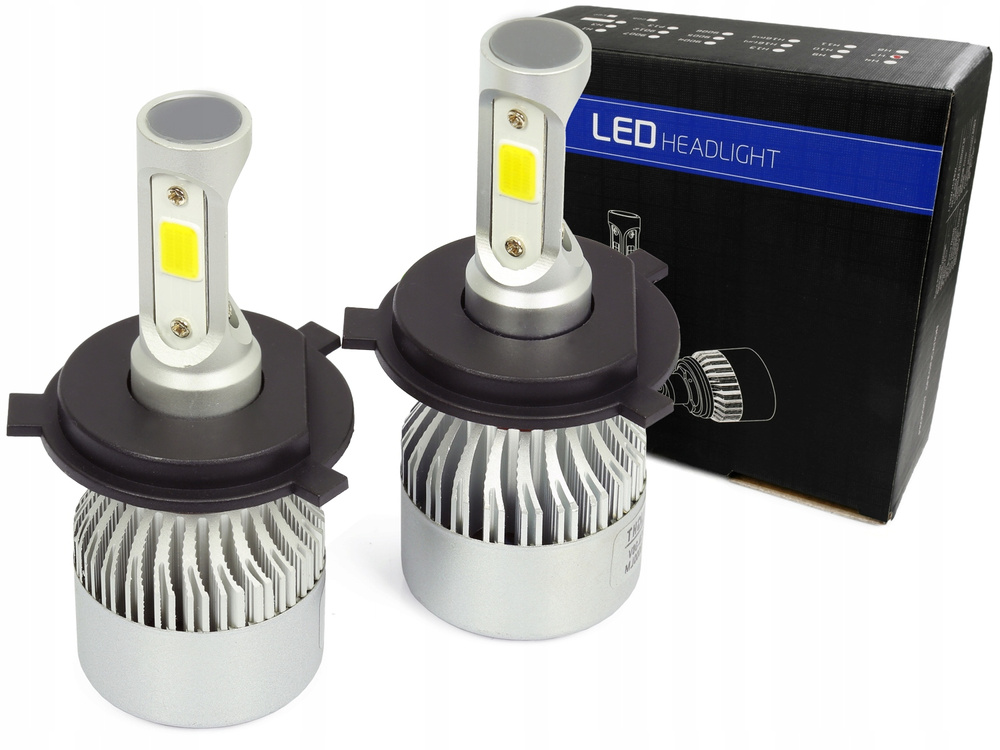

The set includes:
- two LED bulbs H4 S2

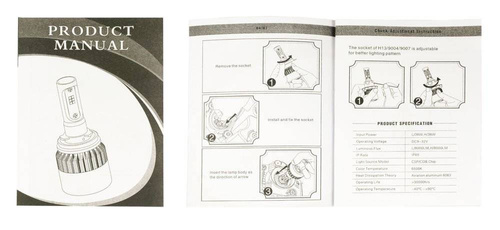

- illustrated assembly instructions
- packaging (ideal for gift)
abbreviated installation instructions H4 LED bulb:
step 1-2 : Determine a tin that secures the bulb in the H4 slot and remove the old bulb.

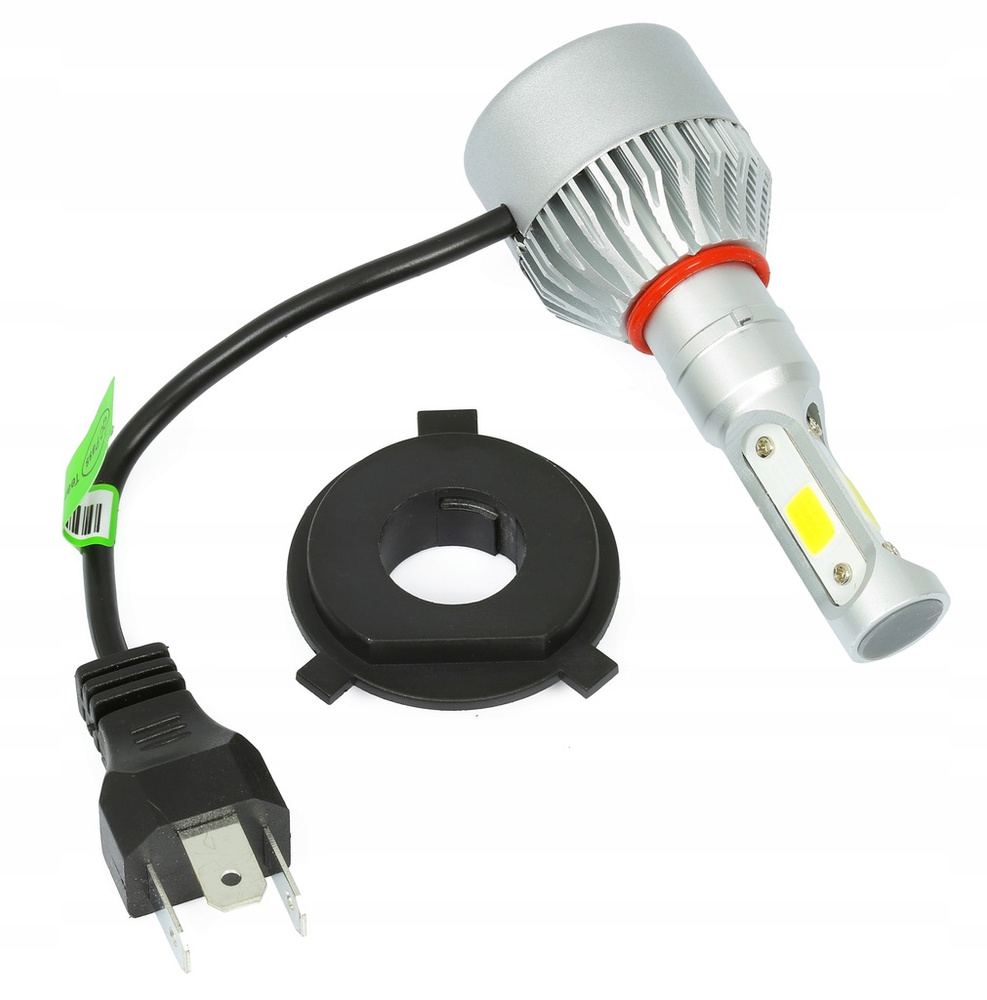

Step 3 : Remove the adapter from the LED H4 bulb. Put it in place of the bulb and then fasten the mounting tin.
Step 4 : Slide the bulb in the adapter previously fastened. We connect the H4 ankle bulb. The bulb power cord together with the H4 cube is best placed on the interior of the lamp, between the housing and the reflector. The bulb can be rotated by 360 ° to find a suitable light incidence angle to the illuminated area before the vehicle.
step 5 : We put on the casing to protect the inside of the lamp from moisture.

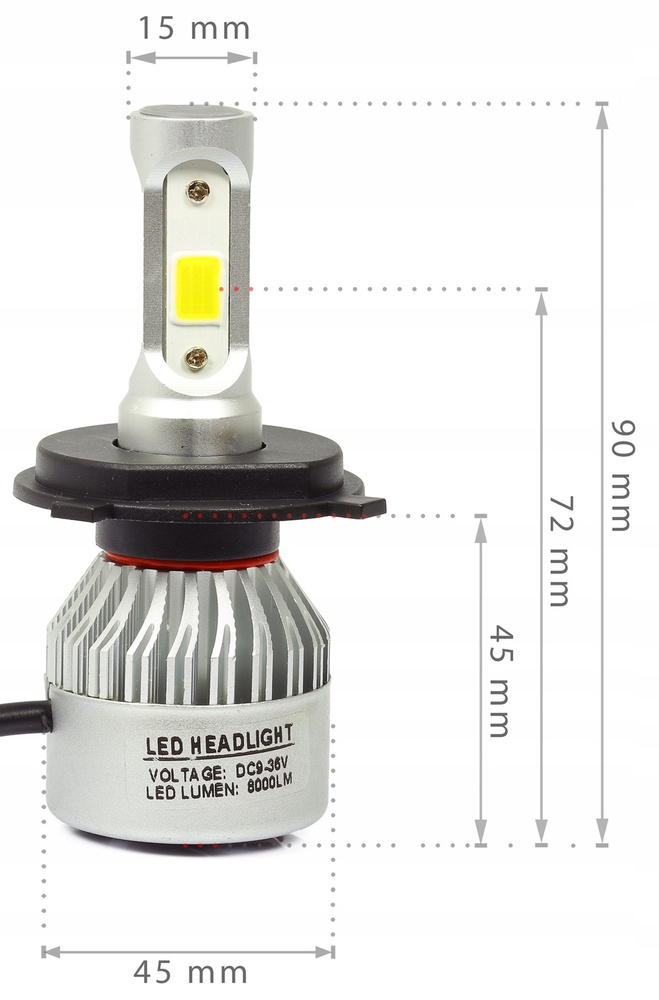

Despite a small amount of space in the tested lamp (Fiat Punto II), after installing the H4 LED, it was possible to clamp the cover and at the same time sealing the interior of the lamp. Before buying, we recommend verifying whether a space between the bulb flange and the cover is available in the target lamp. In our lamp, the distance between the bulb and the edge of the housing to which the cover is inserted 32 mm.
