Halogen LED Light Bar 240W
80 CREE™ 3W LEDs | 18400 LM
The curved shape of the work lamp offers wider light coverage of the area in front of the vehicle

Light beam dispersion type: Combo.
32 diodes emit diffused light
48 diodes emit focused, long-range light
Material: glass, aluminum

Water resistance: IP67

Screws and mounting brackets included


Technical specifications:
Model: 240W Light Bar work lamp.
Light beam power: 18400 lm
LED type: CREE™ 3W
Power supply voltage: 9V - 30V
Certification: CE
Weather resistance: IP65 - full waterproof, dustproof
Material: aluminum

Light beam dispersion type: combo.
32 diodes emit diffuse light
48 diodes emit focused, long-range light

Application:
work lighting for agricultural and construction machinery
OFF ROAD lighting in off-road vehicle, quad bike
lighting on boats/yachts
auxiliary lighting in tires and buses


Lamp dimensions:
Lamp width: 1040 mm
Height: 70 mm
Depth: 40 mm

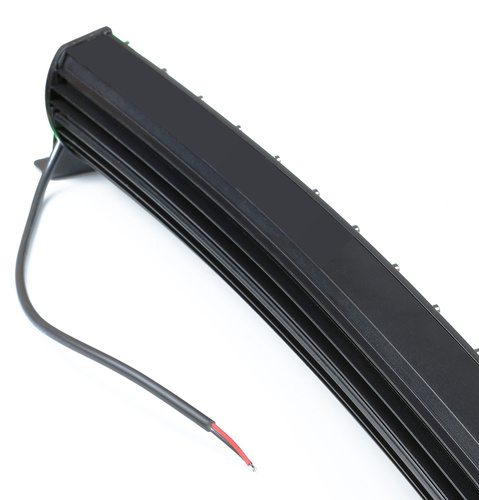

Length of power cable - 150 mm

Lamp Mounting:
Each lamp comes with a set of mounting hardware (shown in the photo below)
Mounting hole spacing (when mounting the feet outside the lamp outline): 1090 mm. It is possible to mount with the legs inverted by 180 degrees, with mounting holes in the outline of the lamp.

Light color:
6000k - cold white

Lamp power and efficiency:
The power of the light beam coming from the 120W Interlook working lamp is about 18400 lm. The maximum range of the lamp in good atmospheric conditions) we estimate at about 100 meters.
