LB-COB-216W Working lamp COB | 2x High Power Cob 72W | 24 CREE 3W LEDs

technical specification:

• Number of LEDs: 24 LEDs CREE 3W + 2 Powerful COB 72W LEDs
• type of light dispersion: combo .
• Type of diode: 3W CREE SMD // High Power Cob 72W
• color: diamond white, white cold
• LED light beam bunch: 21000 lumens
• enclosure type: aluminum, hermetized
• protection level: IP68 - water resistance, shockproof.
• power: 216W
• power supply: 9V-32V
• work range from -40 ° C to +50 st.c

dimensions:

• width: 380 mm
• height: 80 mm (with fastening +10 mm, screw +15 mm)
• depth: 70 mm

Light beam dispersion type: Combo.

• 24 LEDs CREE 3W emits focused light, far-reaching
• 2 powerful, extreme COB High Power 72W LEDs emit scattered light

use:

• Working lighting for agricultural and construction machinery
• Off Road lighting in a off-road car, quad
• Lighting on boats / yachts
• additional lighting in tirach and buses

fixing diagram allows you to adjust the inclination of the lamp vertically: from -30 ° to + 30 ° relative to the substrate.

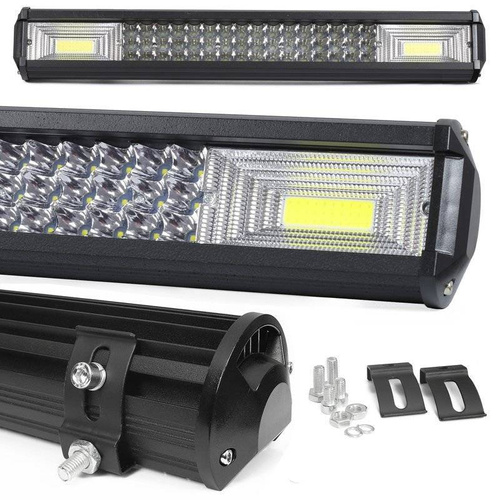

set contains two mounting brackets. The distance between the handles is adjustable .

What will be in the shipment?

• 216W Working lamp
• fastening elements visible in the pictures
• light packs
