2in1 | PY21W 81 SMD 3030 | Daytime running lights MACHINE
- - two-color bulbs mounted in the place of standard signpost bulbs.
- - Type of diode: LED 2x 81 SMD 3030
- - Light power: 666 LM / 450 LM
Включени

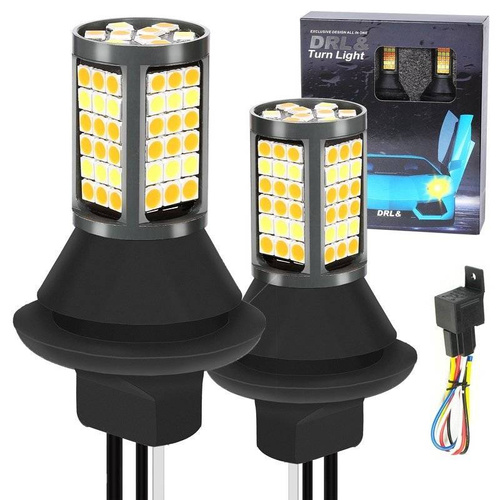

omplet bulbs that serve as daytime running lights and turn signals LED 2x 81 SMD 3030
with automatic
A set of holders PY21W / BAu15S
the set of machine module is attached. By purchasing this offer will receive a complete set to connect the car.
functions of the machine:
- daytime running lights are switched on automatically when the key is in the ignition
- daytime running lights switch off automatically when the dipped beam
mode the direction works regardless of the DRL.
Our bifunctional bulbs are installed in place of the standard indicator bulb.

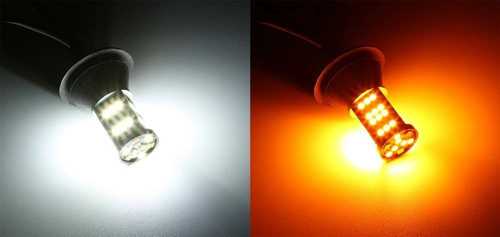

- bulbs illuminate cool white color light when driving without incorporated indicator.
- bulbs shine pulsating orange after switching direction.
NOTE: offered set 2in1 a tip to match a socket assay PY21W
95% of the cars out of the direction indicator is an orange light bulbs "PY21W" - socket bulb has two asymmetrical with respect to the axis of the bulb pins.
other offers in our shop are sets 2in1 tipped
- P21W - this symbol means bulb with pins symmetrical with respect to the axis of the bulb.
- W21W - symbol indicates a slide-bulb made entirely of glass - "big brother" bulb positional W5W.
If you do not know what light bulbs comes with your car write to us! Prepare some information about the car, as the make, model, year and engine type and capacity. We will try to choose the right kit for your car!
Technical
- Number of LEDs in one light bulb 81
- Type LEDs 3030 SMD
- light color: cold white / orange
- light Power: 666 lm / 450 lm
- input voltage: 12V
- resistor: 50W 6ΩJ
- CANBUS Yes

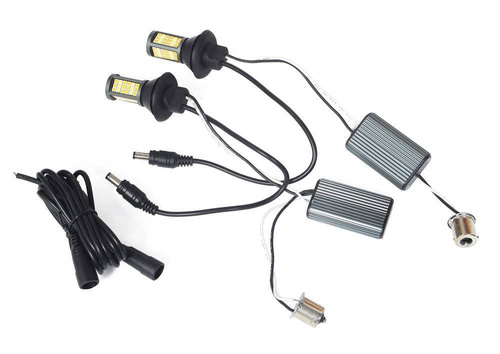

included is
- Two bulbs compatible with socket PY21W

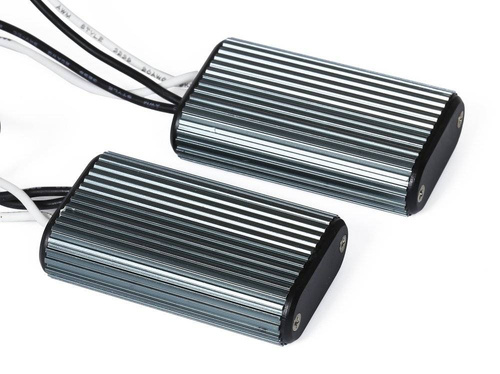

- Two aluminum drivers leveling mistake burnt bulb with plugs protected from moisture
- AUTOMATIC - relay the beam (the connection is pictured below)

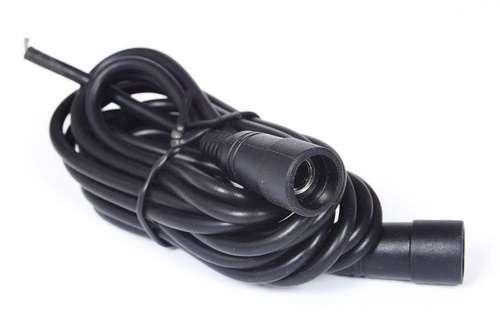

- Harness
- Packaging perfect gift
connection instructions set:
- Automatic (relay):
PIN # 30 nal loop, connected to plus (+) key switch
PIN # 85 you connected to the by weight of (-)
PIN # 86 is connected to the plus (+) postojówek
PIN 87 is not connected - preferably insulated
PIN number 87a must be connected to plus (+) daytime running
- bulbs 2w1
offered bulb 2n1 be embedded in the holder as a standard bulb , additional conductor connected to the PIN number 87a the machine (relay)

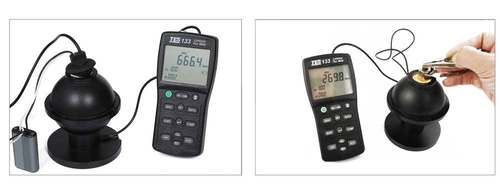

only with us! The actual power of the bulb measured on a professional illumination meter. The results are given in lumens.
Many retailers LED lighting gives unrealistic values light intensity for similar lamps. Please approach with a large distance to the undocumented, often fictitious data specification bulbs!
The measurement was carried out on the bulb LED 2in1 66 SMD (of the offer) and a standard light bulb direction indicator PY21W.
the luminous intensity of the LED bulbs 2in1 2 x 81 SMD is 247% higher than a regular light bulb, and all at lower power consumption. the advantages of having daytime running lights with LED indicators 2in1 2 x 81 SMD can therefore include:
- Lower burning car
- Modern, aesthetic appearance of the lighting of the car through the lights for daytime driving a white, cold color
- the effect of rapid switching on and off indicator LED
- significant improvement of safety traveling by car with LED lighting 2in1 2 x 81 SMD
- end of driving without the lights!
