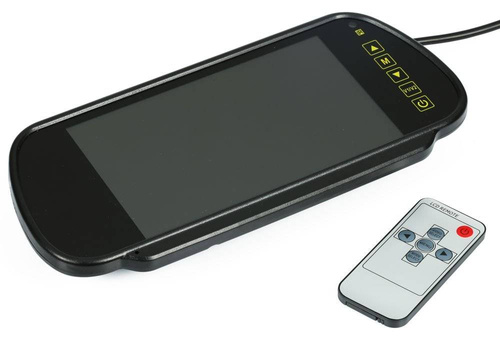

Rearview mirror with a built-in, panoramic LCD monitor TFT 7 "and a remote control for remote control

• the ability to connect two transmitters using RCA (CINCH) - eg backing cameras, DVD player, etc.
• The mirror image starts automatically after throwing backwardness

The device looks modern, elegantly, and has a smooth, slightly dimmed reflective coating.

The mirror housing is made of durable plastic.

• fits each of each image transmitter with RCA (CINCH) input
• Monitor works with intuitive auxiliaries emitted by reversing cameras

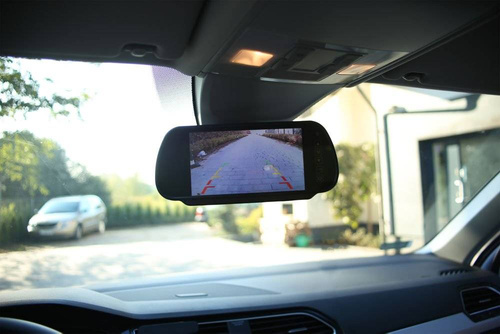

Note: The above photos have been made by us and present real operation of the mirror with the monitor.

• advantage of TFT matrix is very good visibility objects on the screen even in Very acute sun.

• in the absence of a signal from the reversing camera you can not see the outline of the built-in screen

Specification:

• diagonal: 7 "
• Effective number of pixels: 640x480
• Image format: 16: 9
• Working temperature: -20 ° C ~ 60 ° C
• Number of video inputs: Two
• Video input: RCA (CINCH)
• input signal: composite video
• power supply: 12V

Mirror dimensions:

• mirror width at the widest place: 250 mm
• mirror width in the narrowest place: 220 mm
• mirror height: 108 mm
• mirror thickness: 17 mm
• Spacing of fastening brackets: 135 mm
• Recommended height of the standard car mirror on which you can install this mirror with a monitor: from 50 mm to 78 mm

mirror installation consists in fixing it on a current mirror using a solid handles. The entire operation takes just a few moments, and is entirely reversible.

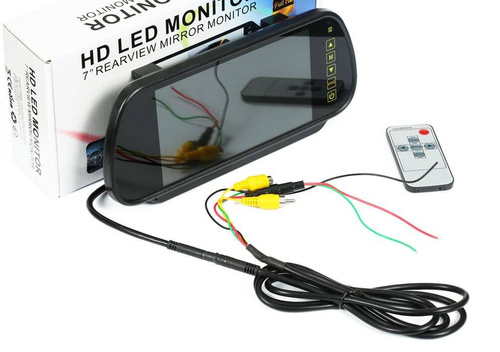

The set includes:

• mirror with built-in TFT LCD 7 "screen with 2 RCA outputs and power cord
• remote control
• Instructions for connecting mirrors
• box

The monitor's power is connected using the supplied cable for any voltage source from the car installation. It is recommended to connect the plus "after ignition", as the monitor in the standby state takes a small current. At the monitor there are two female RCA (CINCH) sockets to which we connect the video signal.
